Installation
Page 30
Step 9 - Connecting the VHF radio (applies to splitter variants only)
A standard marine band VHF radio can be connected to the splitter variants
of the transceiver, so that one VHF antenna can be used for both VHF radio
and AIS.
Using the supplied VHF radio accessory cable, route the cable from the VHF
radio connector to the AIS transceiver connector shown in Figure 13.
Both ends of the supplied cable are fitted with PL-259 connectors, which are
designed to mate with corresponding SO-239 connectors.

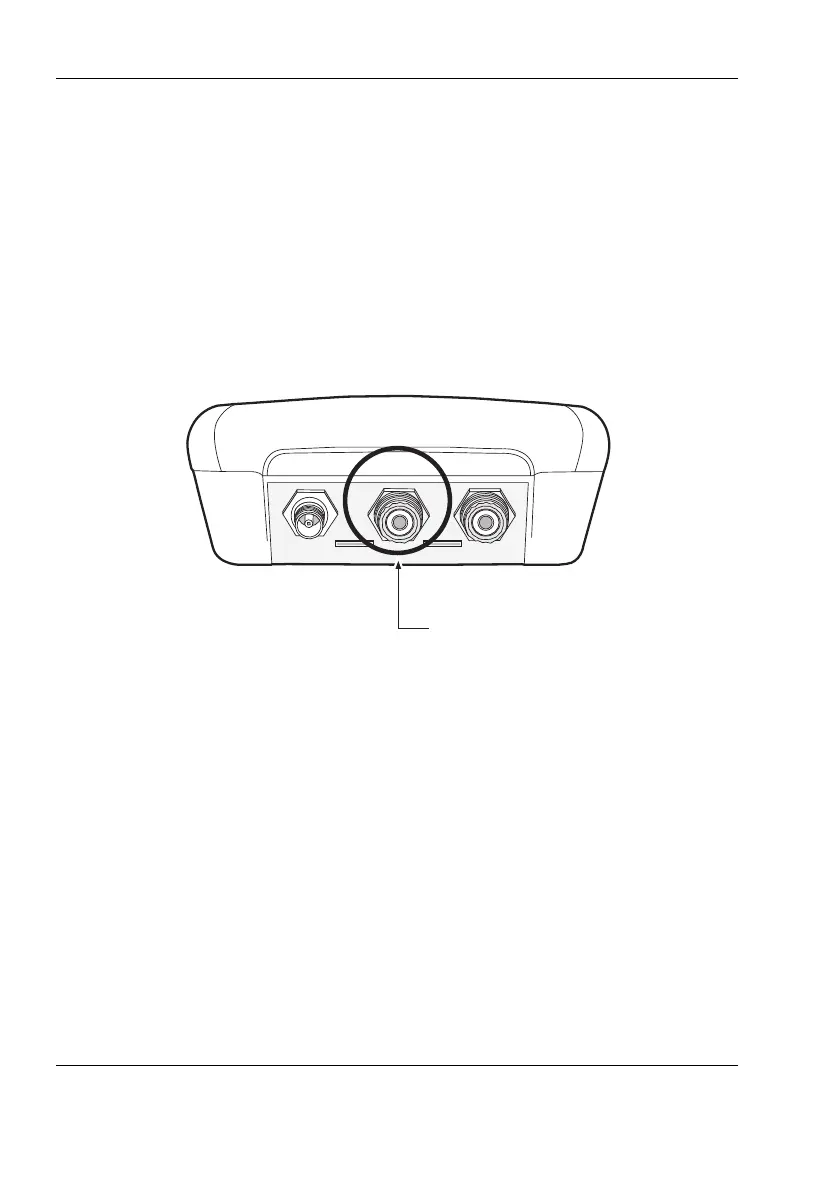

Figure 13 Position of the VHF radio connector
VHF radio
B923, B924, B953 and B954 only
