Step 10 - Connecting to a power supply
The AIS transceiver requires a 12V or 24V power supply, typically provided
by the vessel's battery to operate correctly.
It is recommended that crimped and soldered lugs are used to connect the
AIS transceiver to the power source via a suitable circuit breaker and/or 3A
fuse block. The red and black wires as shown in
Figure 14 need to be
connected as follows:
1. Connect the red wire to a 12V or 24V power supply positive terminal.
2. Connect the black wire to the supply negative terminal.

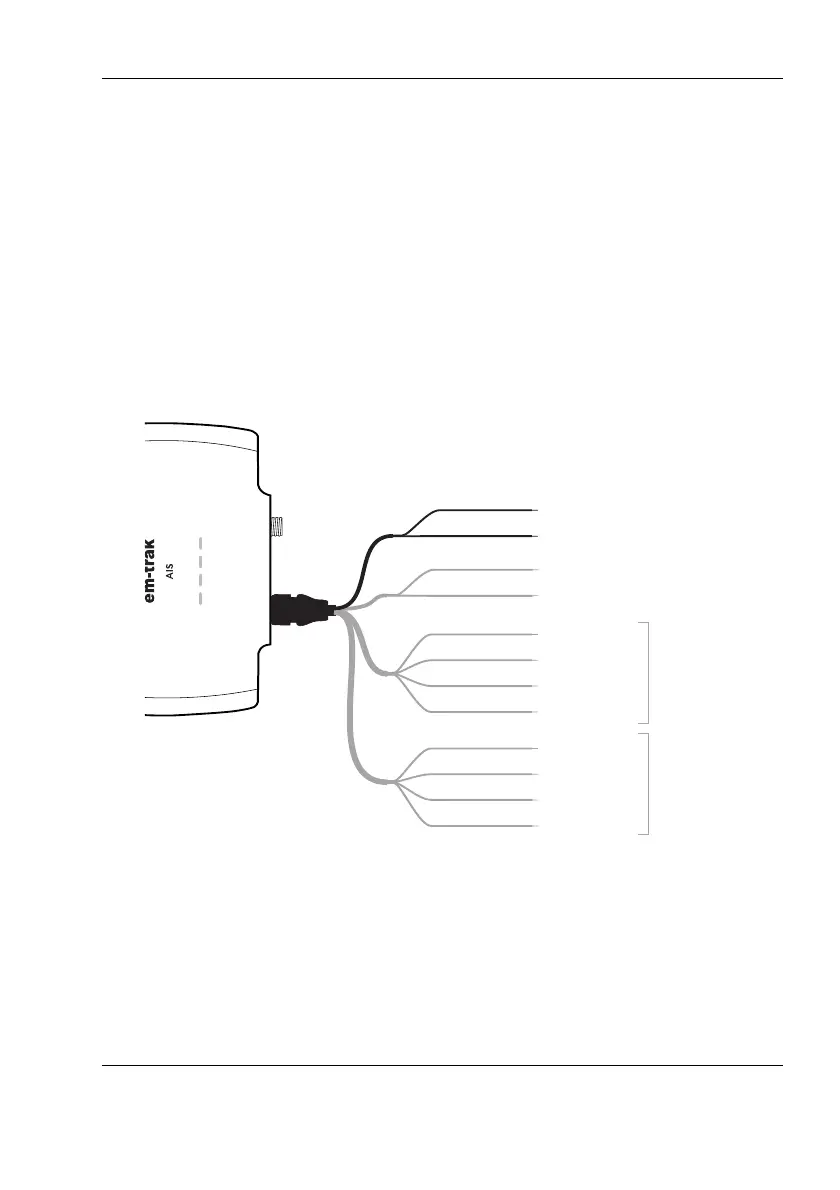

Figure 14 Connecting the power supply
Transmit +
Transmit –
Power in +
Power in –
Switch connection
Switch connection
Receive +
Receive –
Brown
Blue
Light green
Orange
Red
Black
White
Green
Purple
Pink
Grey
Yellow
Transmit +
Transmit –
Receive +
Receive –
NMEA0183
Port 1
NMEA0183
Port 2
To Next Page
