Emakefun RF-NANO User Manual

Copy right © 2018 Shenzhen Emakefun Technology co., Ltd.
6

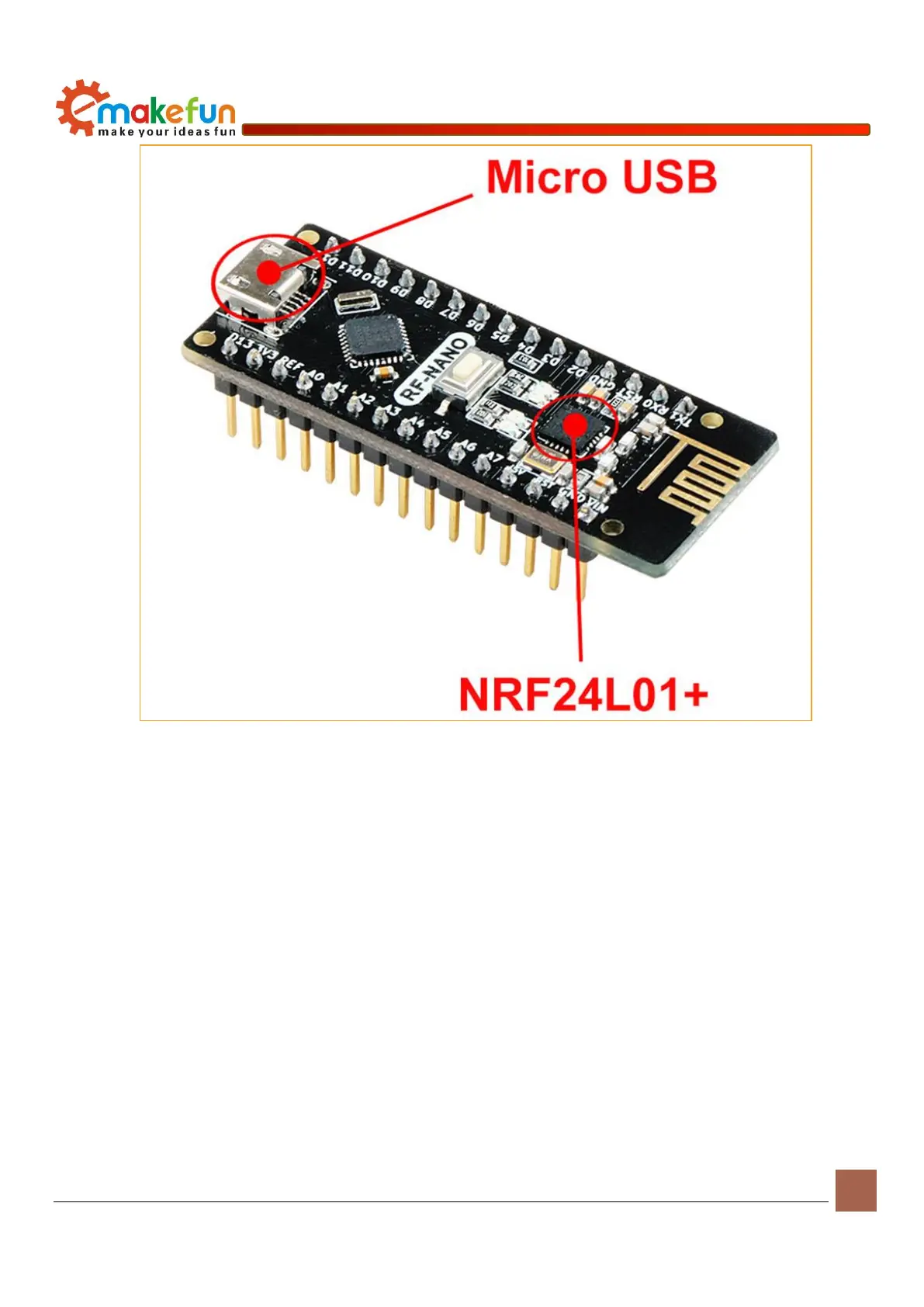

Figure 1-1-3
1.2 RF-NANO MCU introduce
Arduino rf-nano MCU is ATmega328(Nano3.0), usb-micro interface, with 14 channels of digital
input/output (6 channels can be used as PWM output), 8 channels of analog input, a 16MHz crystal
oscillator, a usb-micro port, an ICSP header and a reset button.
 The processor ATmega328
 Working voltage 5v
 Input voltage (recommended) 7-12v
 Input voltage (range) 6-20v
 Digital IO pin 14 (6 of which can be used as PWM output)
 Analog input pin 6
 IO pin DC 40 mA
 Flash Memory 16 or 32 KB (in which 2 KB for bootloader)
 SRAM 1KB or 2KB

Emakefun RF-NANO Specifications

General

Brand	Emakefun
Model	RF-NANO
Category	Control Unit
Language	English
