4.2 Electical WIRING
It is a 220-240Vac 50/60Hz electric power operate variable speed pump.

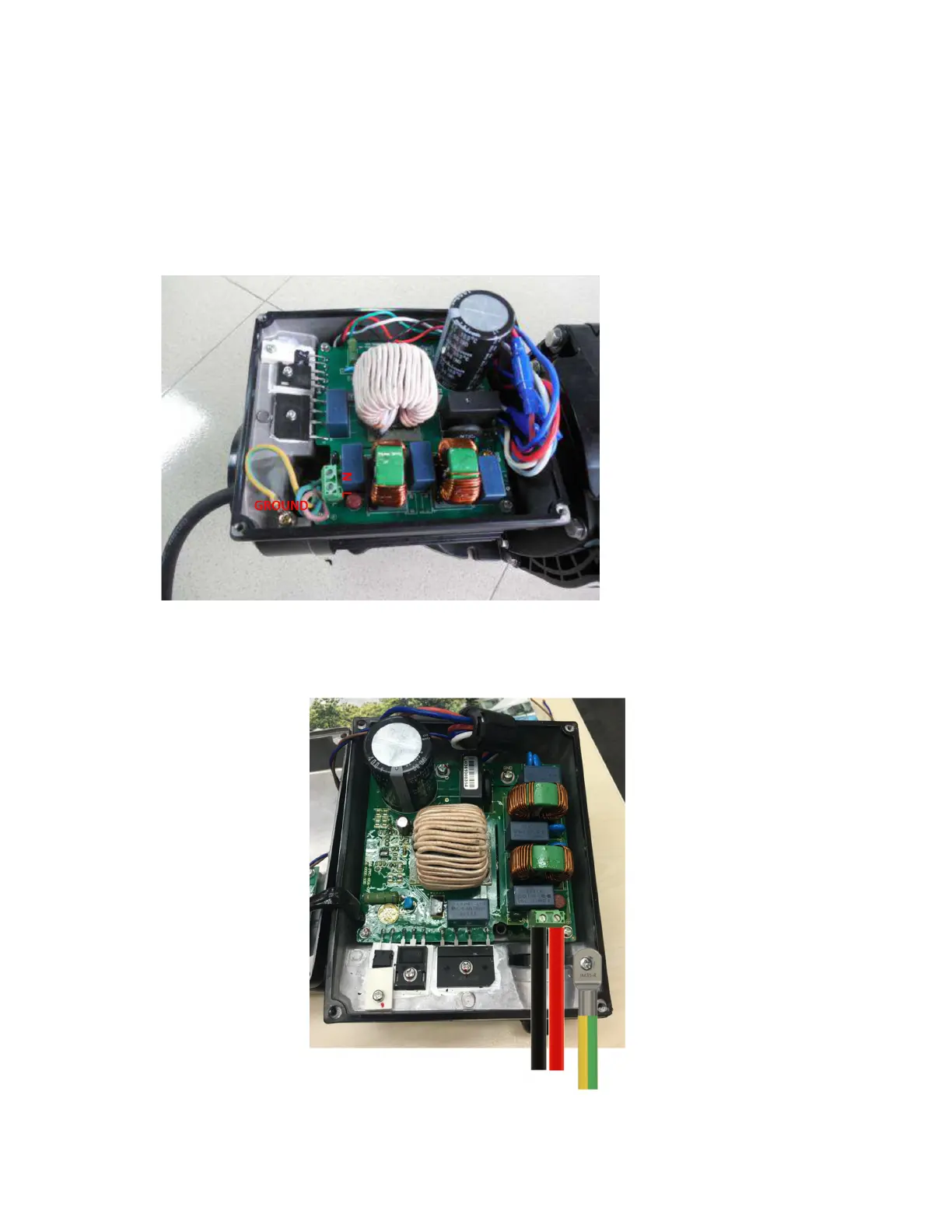

Unscrews the four corners screw of the variable sped driver box to open it. There are three terminals
labelled as L, N and GROUND. Connect the power wires to these terminals according to the electrical
code.
For single phase 220-240Vac 50Hz, the pump is shipped with power cord and there is no need to wire
the power cord, just need to plug the power plug to a RCD protected socket.
j
MENA Hardwired
230Vac 60Hz two phase hardwired connection, open the cover of the drive. Follow to NEC protocoled,
connect L1 to L, L2 to N and Earth to Ground on metal case.
