10
22 - Combustion analysis tap
23 - U1 supply temperature sensor
24 - Burner window
25 - Air/gas manifold
26 - U6 high temperature limit sensor
27 - Flue gases back flow preventer
28 - Fan
29 - Gas valve
30 - Heating pressure gauge
31 - Display
32 - Domestic hot water temperature control
33 - Heating temperature control
34 - On/off power switch
35 - Three way valve (not present on 45AN
and 45AE models)
36 - U3 domestic cold water temp. sensor (not
present on 45AN and 45AE models)
37 - Cable clamp
38 - ASME Safety relief valve
39 - U8 return temperature sensor
40 - By-pass pipe (not present on 45AN and
45AE models)
41 - Condensation discharge pipe
42 - Secondary heat exchanger for domestic hot
water production (not present on 45AN and
models)
43 - Expansion tank connection pipe (not
present on 45AN and 45AE models)
44 - Circulator pump screw (not present on
45AN and 45AE models)
45 - Circulator pump (not present on 45AN and
45AE models)
46 - Condensation discharge trap
47 - Detection electrode
48 - Burner
49 - Right ignition electrode
50 - Left ignition electrode
51 - Spark generator
52 - Flue pressure switch

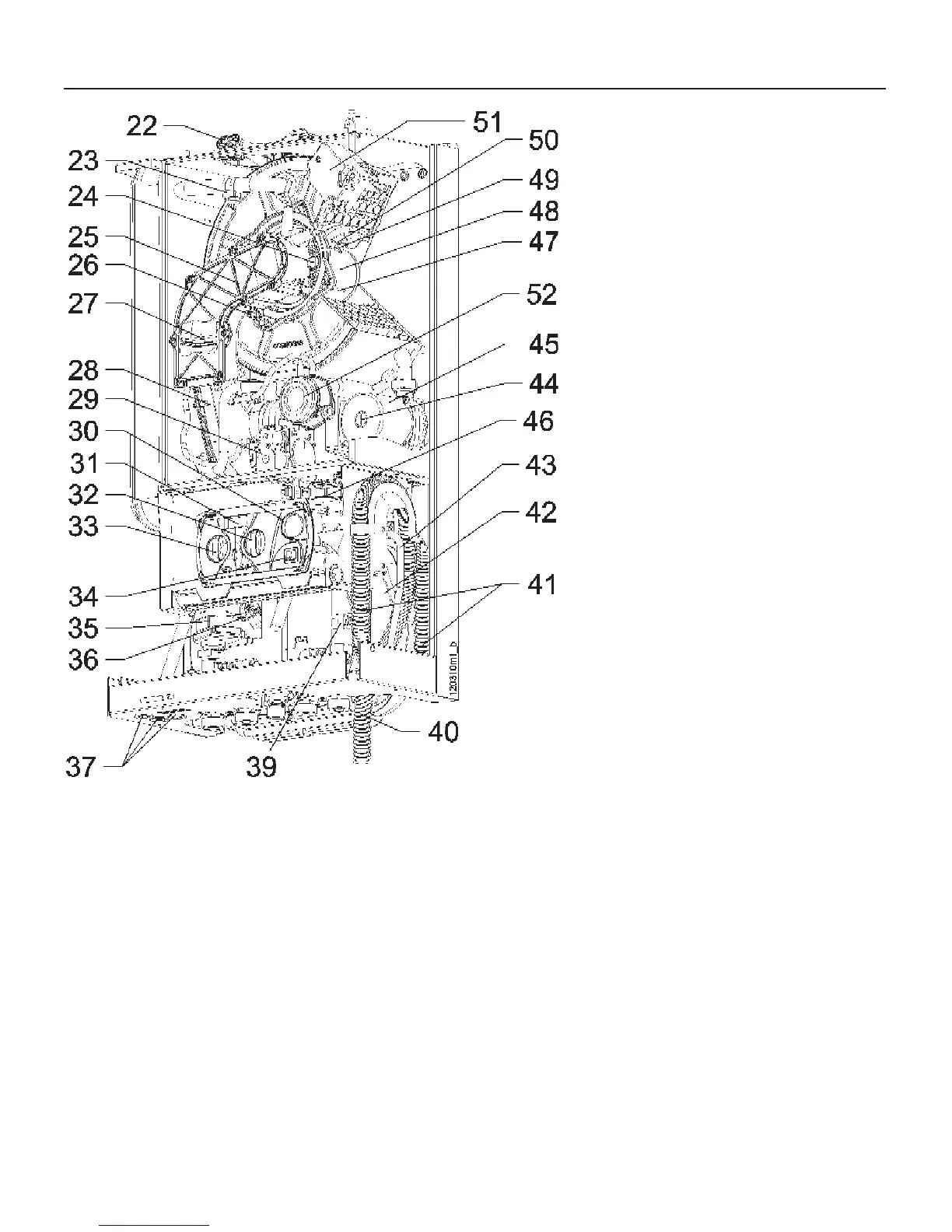

Figure 1 - Main components
3 - MAIN COMPONENTS
