Embassy ONEX - Split 80;80 PP System Components

34

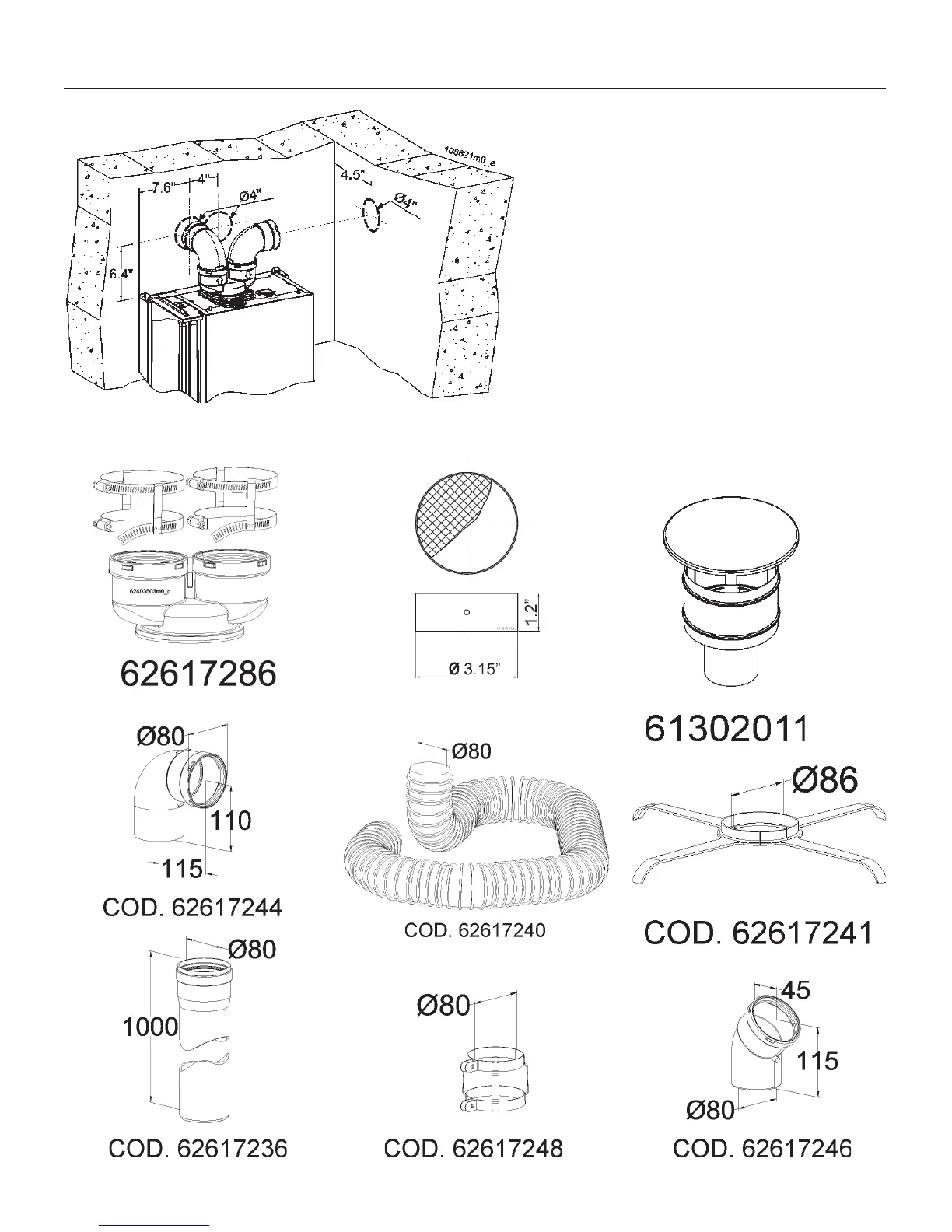

Figure 28 - Interaxes of “Split 80/80 PP” system
9.2 - “Split 80/80PP”
system components
Some of the most commonly used components
for installing the “Split 80/80PP” polypropylene
vent and combustion air systems are listed
below:
62617286 - No. 1 - Split adaptor 80/80 PP
61302011 - No. 29 - Flue exhaust roof terminal
62617236 - No. 11 - 3ft PP M/F extension
62617240 - No. 14 - 60 ft PP flexible extension
62617241 - No. 16 - Spacer for PP flexible
extension
62617244 - No. 12 - 90° PP M/F in line elbow
62617246 - No. 13 - 45° PP M/F in line elbow
62617248 - No. 18 - Secure clamp for PP
extensions
61302003 - No. 30 - Air intake grid
Note: the numbers after the codes
correspond to the numbers in figure 29
9 - INSTALLATION - Split 80/80PP venting system
61302003
