Embassy ONEX - Removing the Casing on Models 45 WE and 45 AE; Installing the Casing on Models 45 WE and 45 AE

60

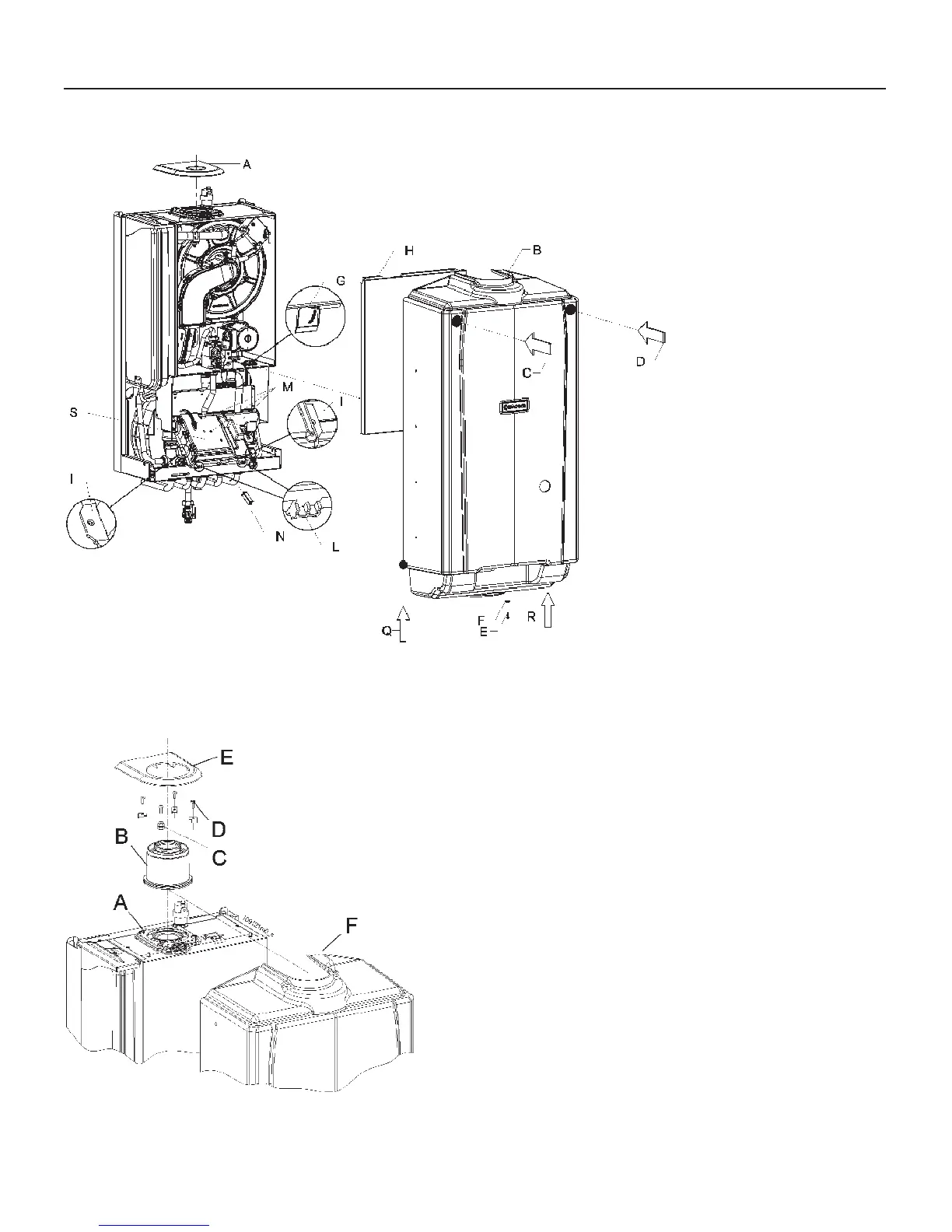

Figure 45 - Mounting and removing the casing on models
45WE and 45AE
13.3 - Removing the
plastic cover on a
45WE and 45AE
boilers
In order to remove the casing, follow
the steps below while refering to figure
45:
 remove screw “E”;
 push upward, with your hands, in
the points indicated by “Q” and “R”;
 pull-out all the cover
 press the two plastic springs, item
“L”, down;
 lower the electrical box “S”;
 lift latch “G”;
 pull the bottom of cover “H” out by
around 4 in (10 cm);
 lift cover “H” up by around 1in (2 cm)
and remove it.
13.3.1 - Installing
the plastic cover on
models 45WE and
45AE boilers
Boilers models 45AE and 45WE are
delivered with the plastic outer jacket
cover in a separate box and need to be
field installed. In order to install the
plastic cover, follow the steps below
while refering to figure 45:
 mount the boiler as per section 5.5;
 mount the coaxial adaptor item “B”
in figure 45 bis, as per section 10.1;
 plumb the plastic cover “B” onto the
boiler;
 with both hands, push on points “C”
and “D” at the same time;
 secure cover “B” with screw “E” and
washer “F”;
 insert washer “A” onto the coaxial
adaptor.
Figure 45 bis - Mounting the plastic cover on a 45WE or
45AE
