Embassy ONEX - 15 Spare Parts

71

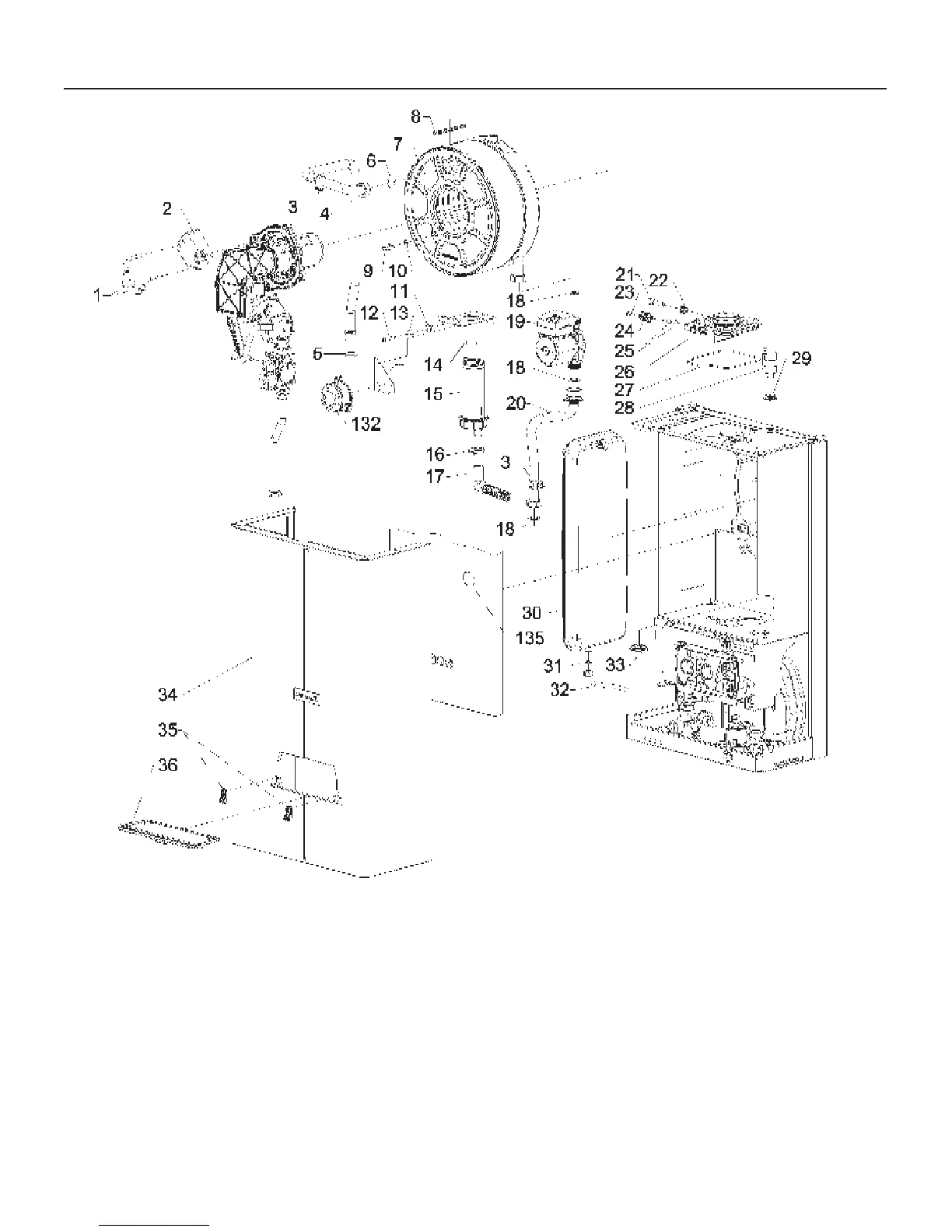

15 - SPARE PARTS
1 - 60504206 CABLE UL IGNITOR CONN 90° L155
2 - 60510022 SPARK GENERATOR NO CABLE UL
3 - 62111016 SENSOR NTC 10 KOHM A KLIP DIAM.22
4 - 62622011 COPPER PIPE D22 M/F 3/4"G-1"G
5 - 60802018 3/4" RING NUT
6 - 60702030 O-RING NBR 2,62 X 20,63
7 - 62649004 PRIMARY HEAT EXCHANGER C.R.R ASME
8 - 60702047 GASKET EPDM X OSSIDO D84 H7
9 - 62111017 SENSOR NTC 10 KOHM 1/8"
10 - 60803027 GASKET COPPER 1/8" SP.1,5
11 - 61405025 SILICONE TAP
12 - 60801116 SCREW 6X35 ZINC TC-CR
13 - 60803011 WASHER 6X18X1,5 PIA-ZIN-LAR UNI6593
14 - 60702055 O-RING 134 EPDM 3,53 X 25,8
15 - 62630136 SIPHON
16 - 60806020 SPRING 28,7
17 - 60322012 POLIETYLENE PIPE L=1000
18 - 60701001 1"G GASKET
19 - 62301031 PUMP GRUNDFOS UP 15/58U BRUTE USA
20 - 62622012 COPPER PIPE D22 RETURN SEALING
CHAMBER
21 - 62111015 SENSOR NTC 10K BAIO
22 - XXX #N/D
23 - 60801132 SCREW 4,8X19 ZINC AF TC-CR UNI6954
24 - 61405164 PLUG FOR FLUE AIR FITTING
25 - 60702052 O-RING 2050 EPDM 1,78 X 12,42
26 - 61405160 DISCHARGE RACCORD PP
27 - 60702035 GASKET ROUND SPONGE D.3,5 MM IP44 S3
28 - 61206001 AUTOMATIC AIR VENT
29 - 60703033 GASKET EPDM D38 F20 SP6
30 - 62201005 EXP TANK LT. 8 561X203X80 RETT.
31 - 60701005 3/8" G GASKET
32 - 62625064 EXP TANK PIPE
33 - 61102006 FAIRLEAD 6 POLES SILICONE
34 - 62610067 EXTERNAL JACKET 500X840X245
35 - 61405167 DOOR SUPPORT
36 - 62610065 DOOR ABS
