67
13.14 - Water and
flue temperature
sensor
The boiler has a number of sensors
that measure temperature. The
electrical resistance between the
sensor wires must correspond with the
values shown in figure 53.
The temperature sensors are: U1; U2,
U3, U5, U6, U7 and U8. The location of
each sensor can be found in figures 1
and section 13.16 and 13.17.
13.15 - Outdoor
temperature sensor
(optional)
An outdoor temperature sensor can be
connected to the boiler (see section
6.5). The electrical resistance existing
between the sensor wires must
correspond with the values shown in
figure 54.
13 - MAINTENANCE

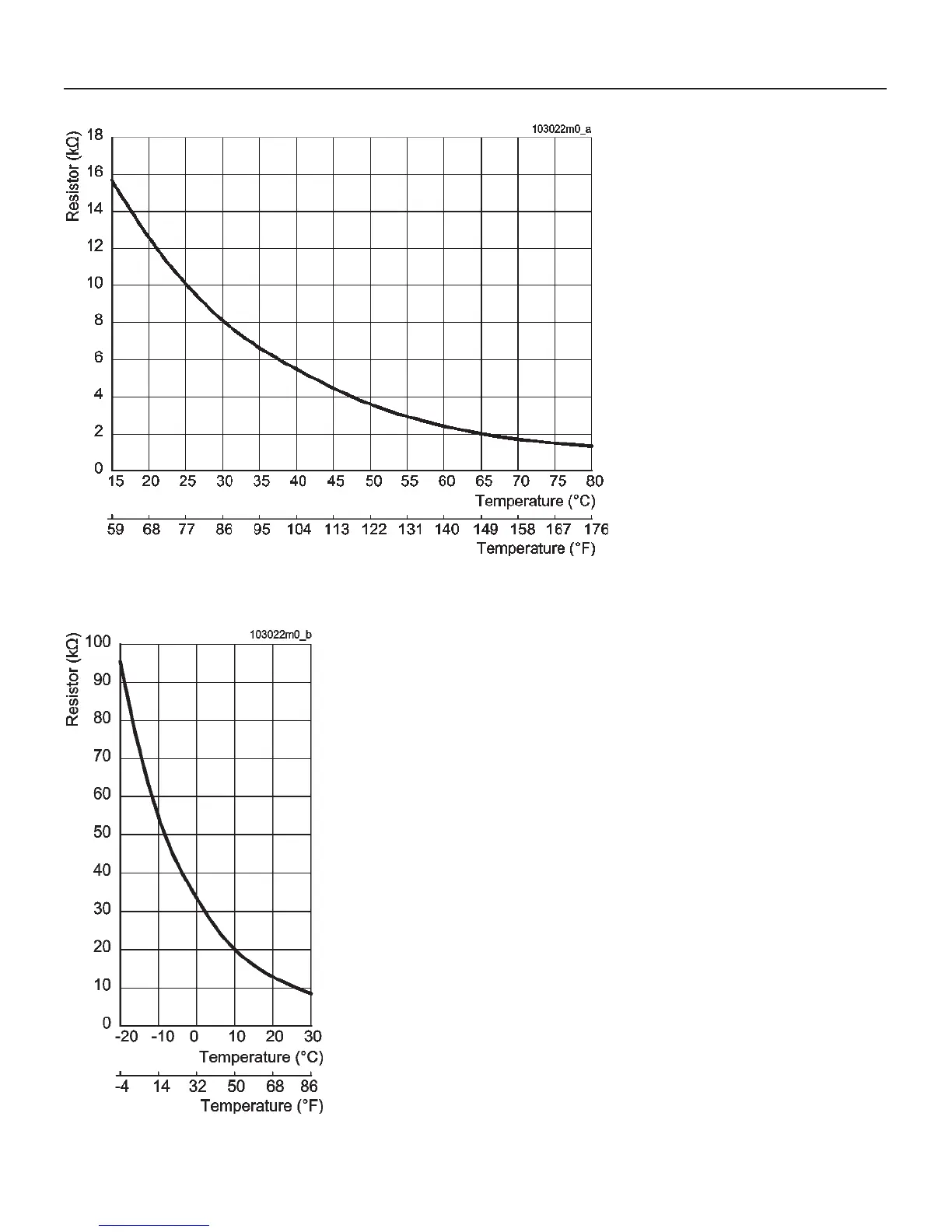

Figure 53 - Water temperature sensors’ curve
Figure 54 - Outdoor temperature sensor curve
