29

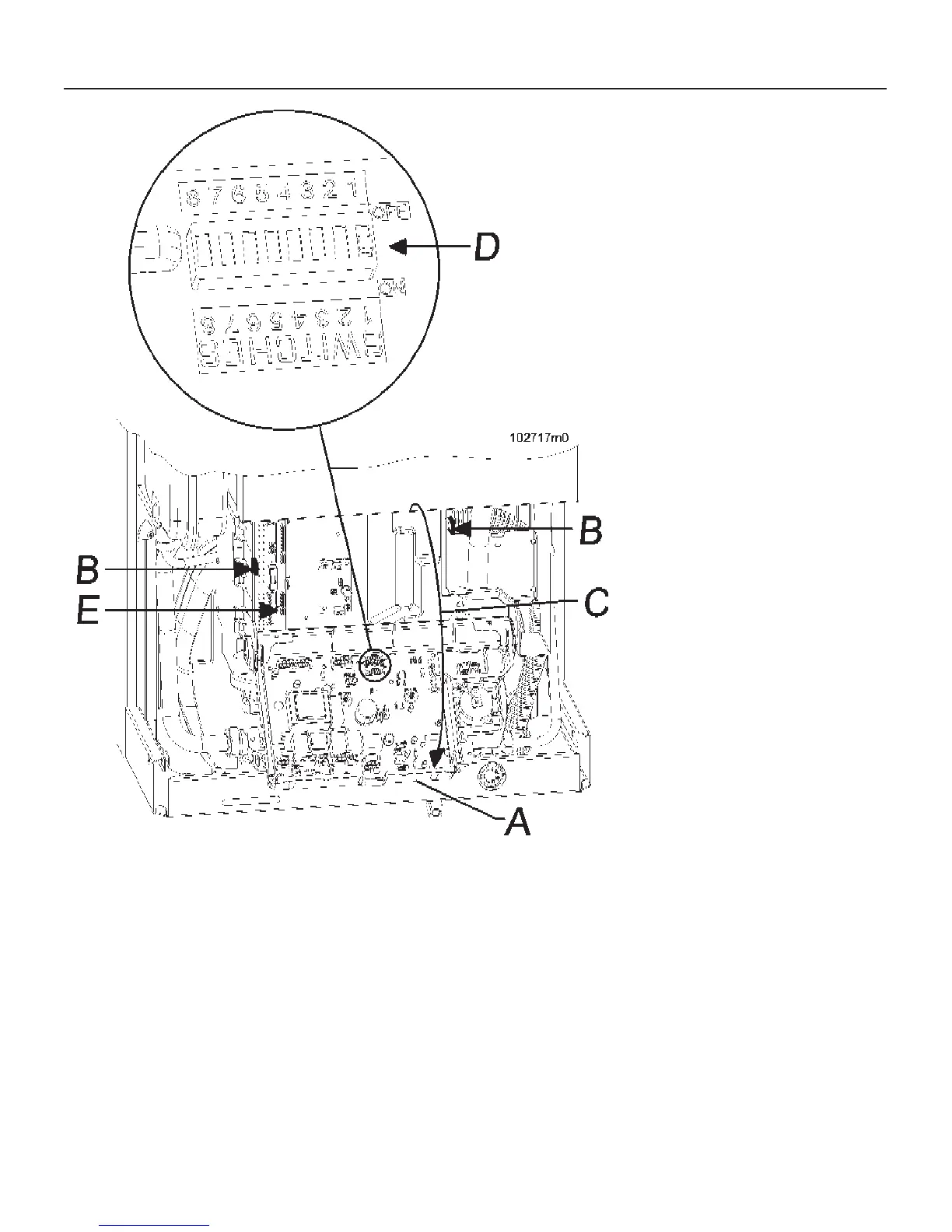

A = front cover of the electrical box
B = plastic spring to open the electrical box
C = Direction to open the electrical box
D = Switches for the functional setting of the boiler
Figure 22 - Contro board and junction box board details
7 - INSTALLATION - Indirect storage tank connections
