Outside temperature (°F)
Calculated temperature (°F
)

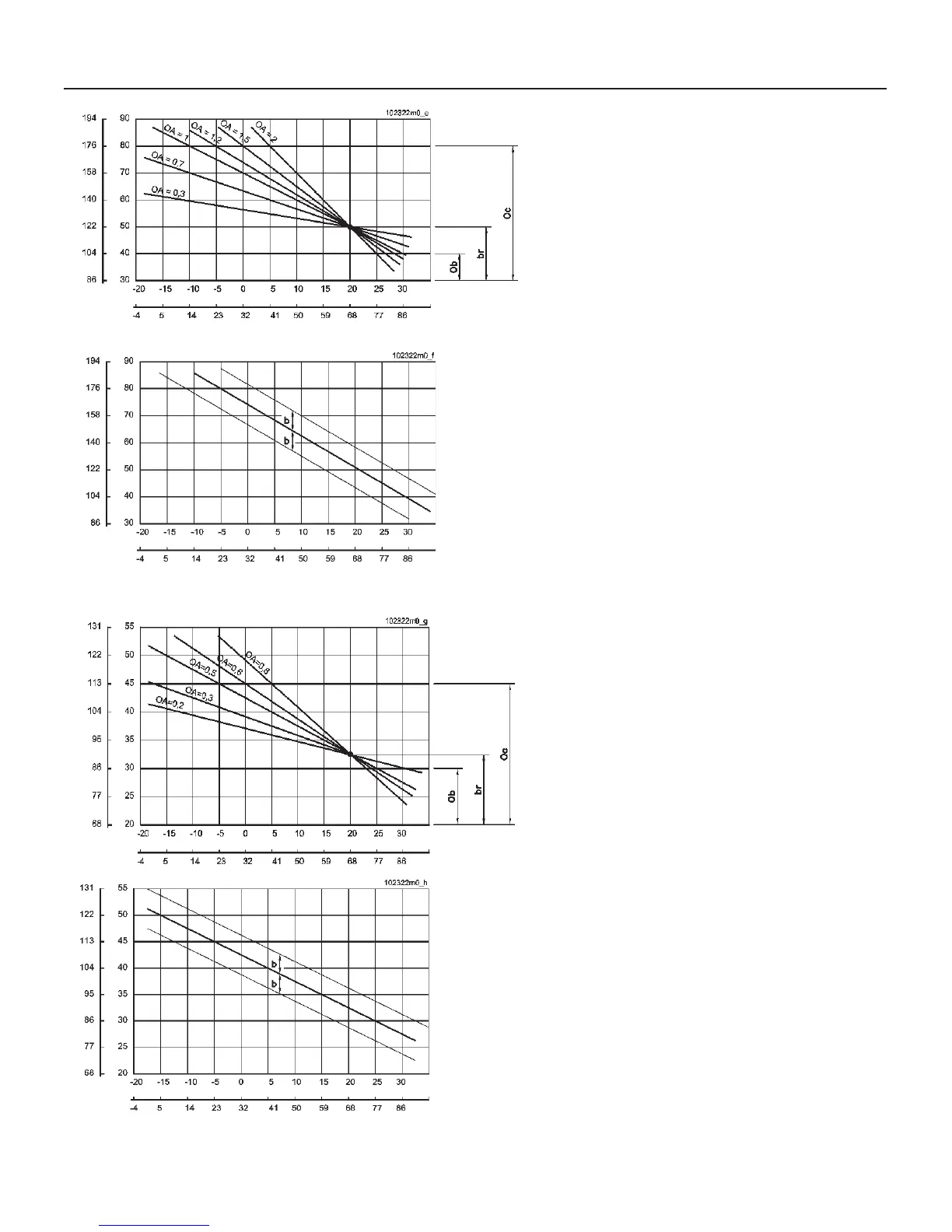

Figure 40 - Graphs of the climatic adjustment for “high temperature” systems
Figure 41 - Graphs of the climatic adjustment for “low temperature” systems
12 - USE
OA = Inclination of the line
Ob = Minimum heating
temperature
Oc = Maximum heating
temperature
br = “Fix point” of the angle
fulcrum of the line
b = parallel shift of the line
(adjusted by the heating knob,
item “33” of figure 1)
OA = Inclination of the line
Ob = Minimum heating
temperature
Oc = Maximum heating
temperature
br = “Set point” of the angle
fulcrum of the line
b = parallel shift of the line
(adjusted by the heating knob,
item “33” of figure 1)
Calculated temperature (°C
)
Outside temperature (°C)
Outside temperature (°F)
Calculated temperature (°F
)
Calculated temperature (°C
)
Outside temperature (°C)
Outside temperature (°F)
Calculated temperature (°F
)
Calculated temperature (°C
)
Outside temperature (°C)
Outside temperature (°F)
Calculated temperature (°F
)
Calculated temperature (°C
)
Outside temperature (°C)
