41
Figure 10.3b Wiring diagrams keys
POTENTIAL RELAY SINGLE PHASE MOTOR
RUN CAPACITOR EARTH CONNECTION
START CAPACITOR CONNECTION SUPPLIED
3PHASE MOTOR
CONNECTION TO BE MADE BY THE CUSTOMER
NOT SUPPLIED

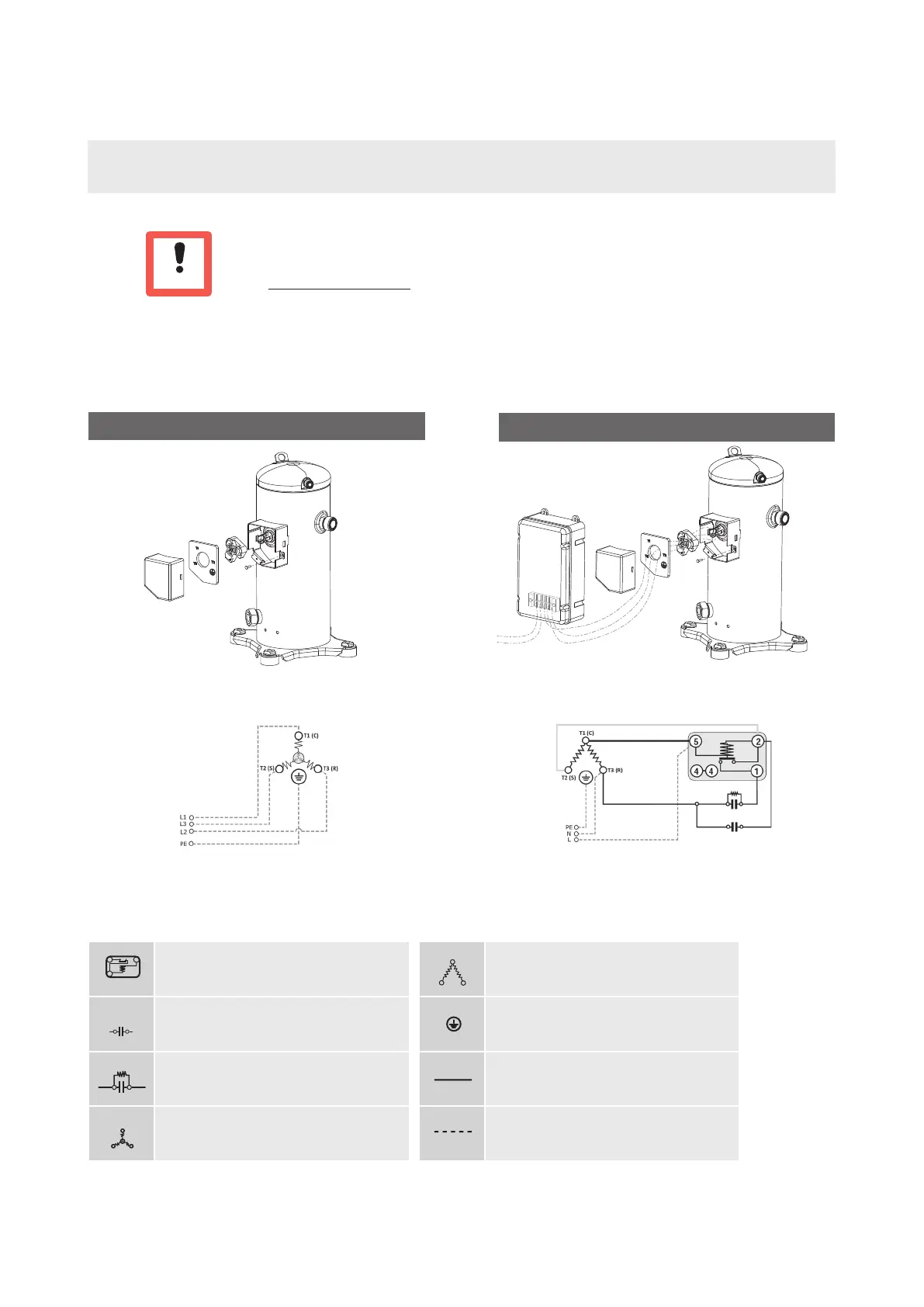

10.3 ELECTRICAL CONNECTIONS AND WIRING DIAGRAMS
The electrical connections to the compressor must be carried out according to
the wiring diagrams indicated below or in the Embraco Product Selector on
www.embraco.com
Wiring diagram is printed in compressor plastic cover, including indication of terminals.
CAUTION
SM31_3 PHASE
SM30 - CSR SINGLE PHASE
Figure 10.3a Wiring diagrams
