Embraco Scroll SE6015GS-O - CSR Box; Fusite Pin

43
10.7 FUSITE PIN
Fusite pin orientation for both single-phase and three-phase scroll compressors is the same, shown in
Figure 10.7 and in gasket inside of the terminal box.

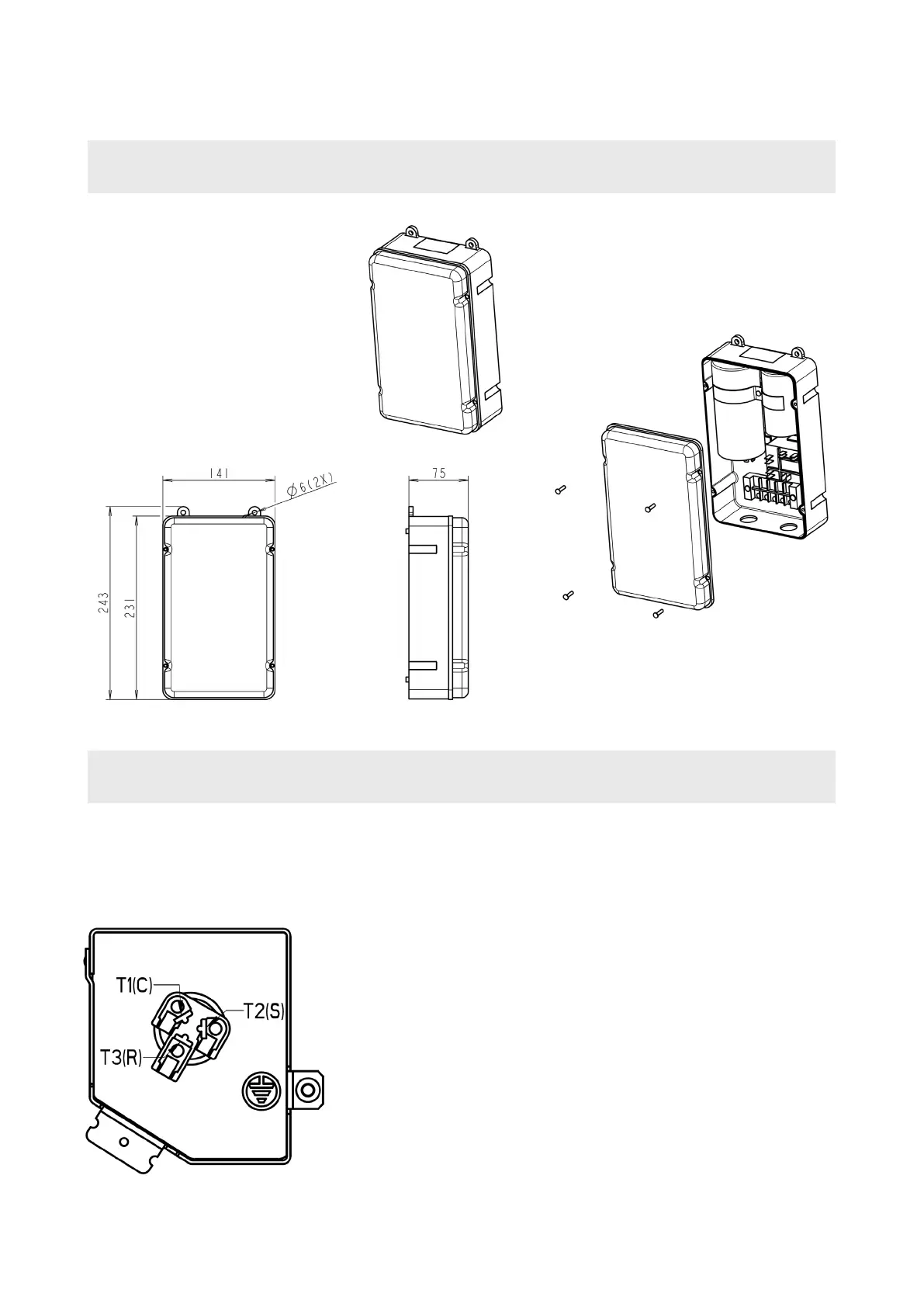

10.6 CSR BOX
Figure 10.6 CRS Box
Figure 10.7 Fusite pin
Legend
T1 (C): Common
T2 (S): Start
T3 (R): Run
