EMC Rails and Enclosures (CX3-10 Class and CX3-20 Class Storage Systems) Field Installation Guide
17
Installing a 1U SPS tray and SPS units in a cabinet
Installing the SPS tray in the cabinet
This section describes how to install the tray in the rackmount
cabinet.
1. From the front of the cabinet, align the SPS tray with the channels
on the mounting rails. Position the tray as shown in Figure 10.
2. Slide the tray onto the mounting rails in the cabinet, until the
flanges of the tray are flush with the cabinet channels. See
Figure 10.

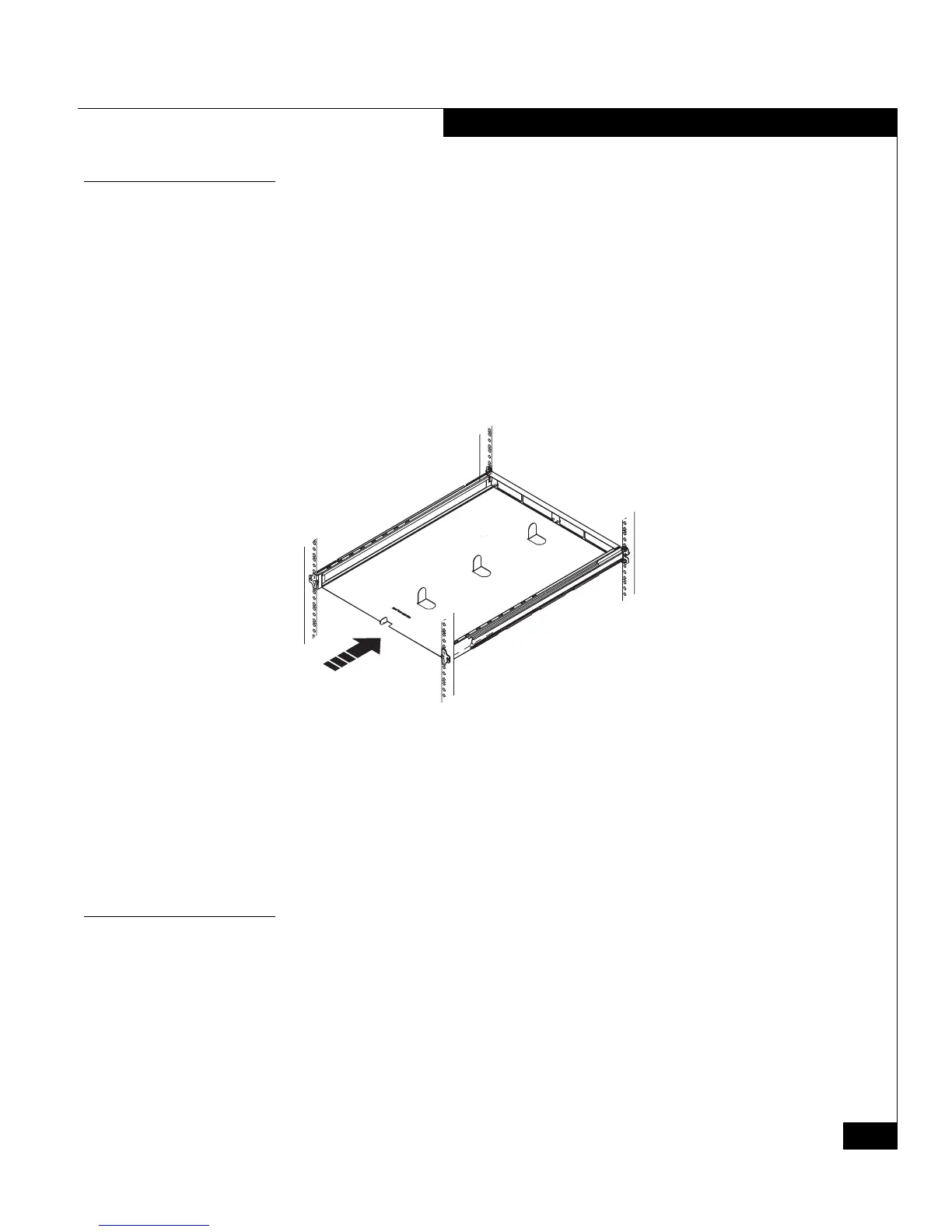

Figure 10 Inserting the SPS tray in the cabinet
3. Do not insert any new screws, but tighten the four securing
screws (two on each side - see Figure 9) that hold the mounting
rails to the channels.
You have installed an SPS tray. Continue to the next section to install
SPS units.
Installing the SPS units in an SPS tray
1. Remove the SPS units from their packaging.
2. Working from the front of the cabinet, slide the SPS units onto the
tray as shown in Figure 11.
EMC3252
Rear
