EMC Rails and Enclosures (CX4 Series Storage Systems) Field Installation Guide
5
Device height requirements
Table 2 lists the vertical space requirements of typical rackmounted
devices.

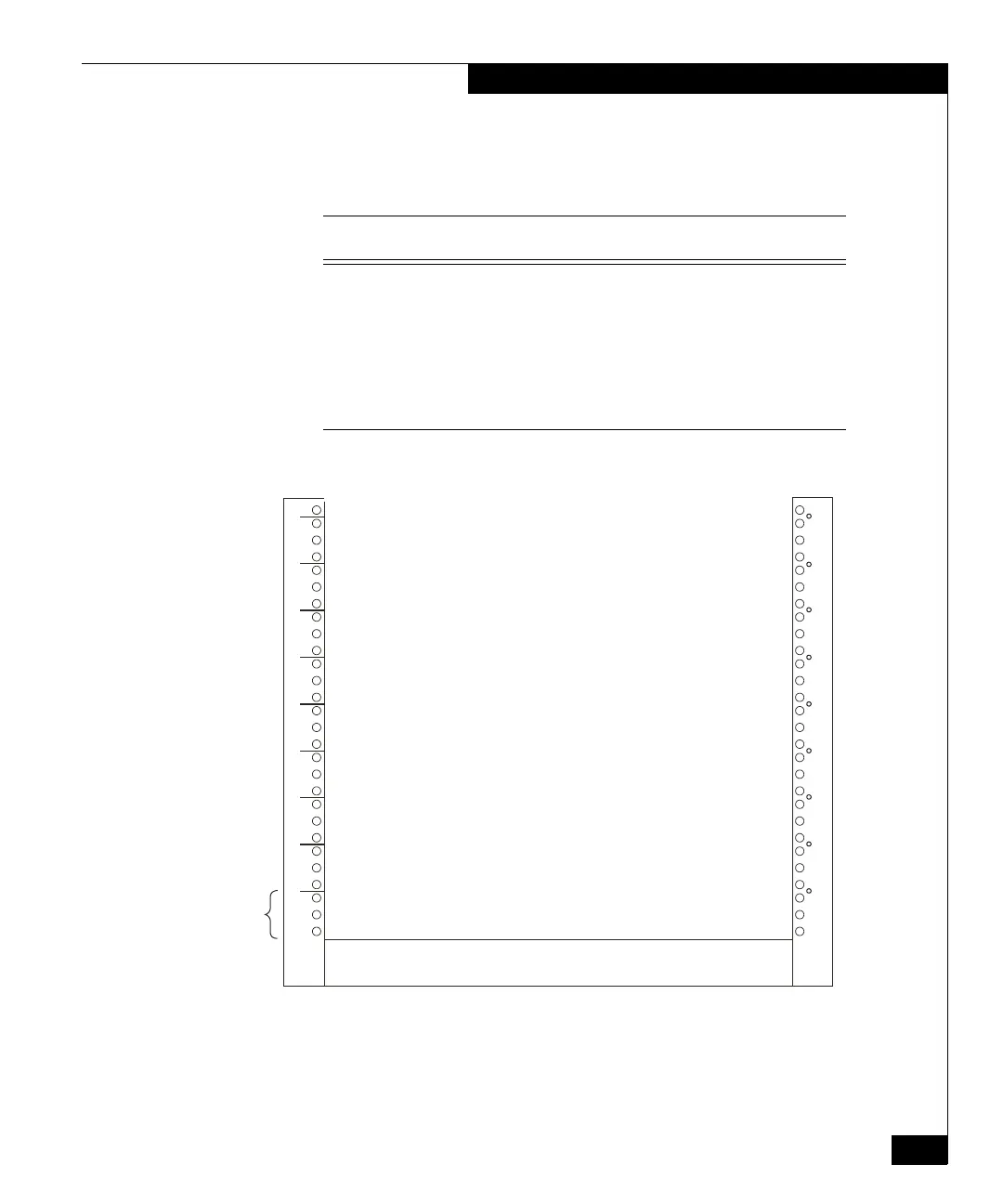

Figure 2 U increments in a 40U cabinet front channel
Table 2 Height requirements of typical devices
Height
Number of
cabinet channel holes Typical device example
1U, 1-3/4 in, 45 mm 3 CX4-120/240/480 SPS;
some switches
2U, 3-1/2 in,90 mm 6 CX4-120/240/480 SPE,
CX4-960 SPS;
some switches
3U, 5-1/4 in, 133 mm 9 EMC DAE
4U, 7 in, 178 mm 12 CX4-960 SPE
EMC2205
1
2
3
4
5
6
7
8
1U (1.75-in.)
Increment
