Installing a 3U disk enclosure (DAE) in a cabinet

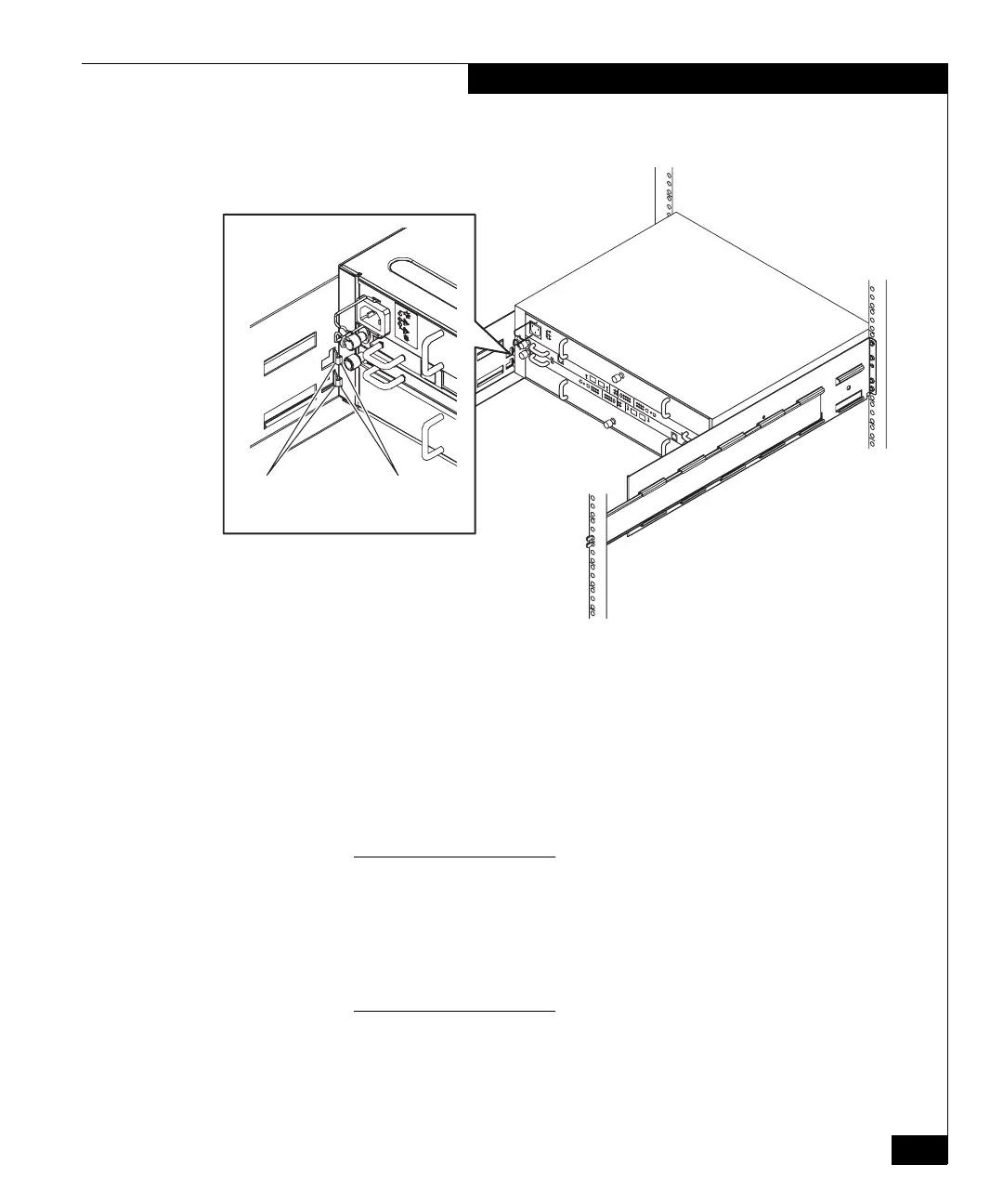

Figure 44 Securing the rear of the enclosure
2. Once the enclosure is completely seated into the rear tabs, tighten
the four screws (two on each rail) that secure the rails to the front
channels.
3. Secure the front of the enclosure to the front vertical channels of
the cabinet using four M5 12.7 mm
screws (two per side), as
shown in Figure 45.
Note: The front screws also help to secure the latch bracket mounted on
the front of the enclosure.
If you are installing the enclosure in a NEBS-compliant environment,
secure the unit to the front channels with the four shape thread rolling
screws supplied with your installation hardware in part number
100-560-644.
!!
!!
!
E
X
P
P
R
I
E
X
P
P
R
I
#
!
E
X
P
P
R
I
E
X
P
P
R
I
#
A
B
Tabs
(on rail)
Notches
(in chassis)
EMC3249
