EMC Rails and Enclosures (CX4 Series Storage Systems) Field Installation Guide
61
Installing front filler panels
2. Push the filler panel onto the latch brackets until the filler panel
locks into place. See Figure 53.

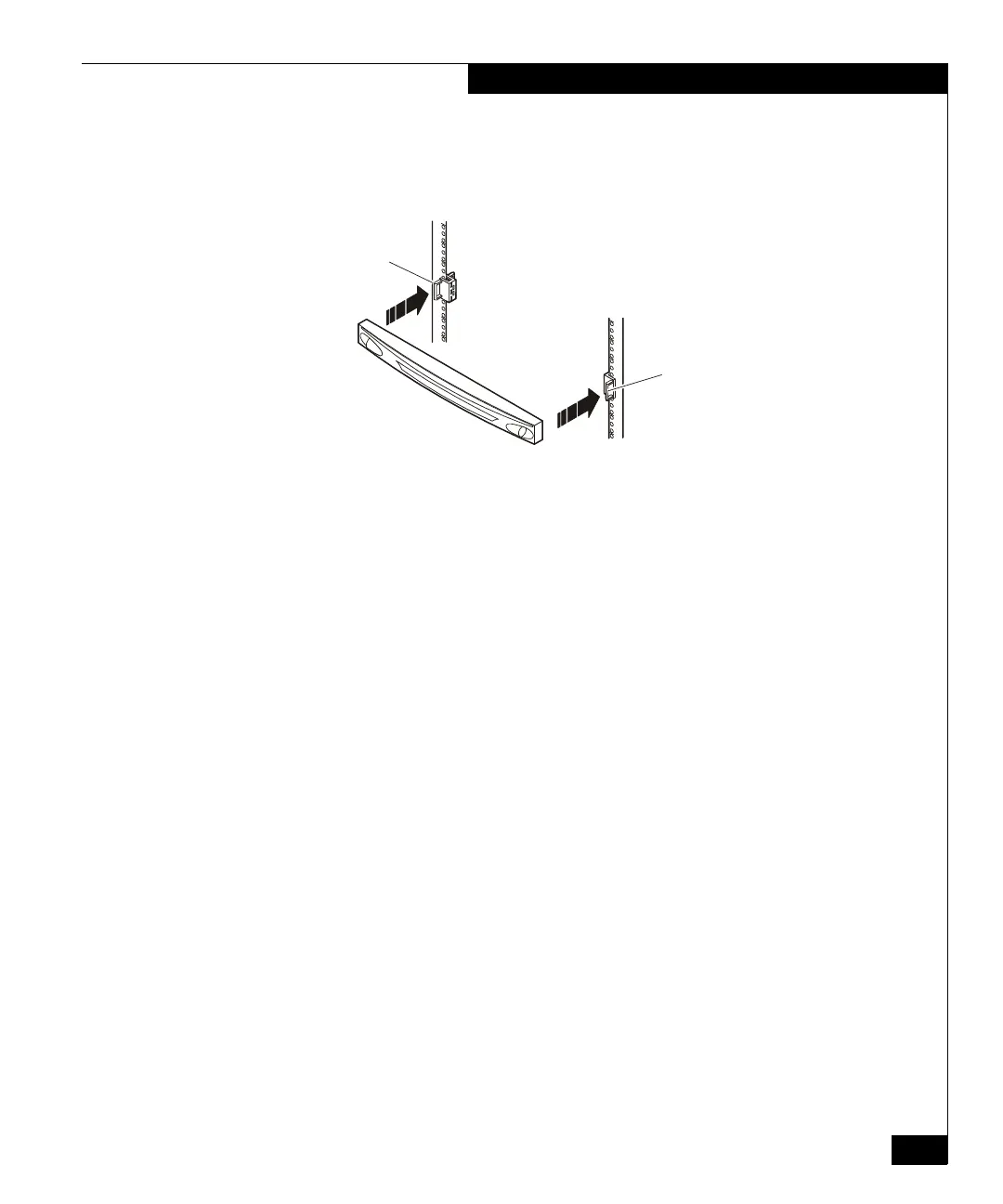

Figure 53 Installing a filler panel (1U Shown)
3. To remove the filler panel, press the two buttons (usually on the
corners) on the front of the filler panel, and pull the panel toward
you.
EMC2236
Latch
Bracket
Latch
Bracke
