EMC Rails and Enclosures (CX4 Series Storage Systems) Field Installation Guide
Installing front filler panels
Refer to Figure 52 as you perform steps 4 through 6.
4. At the right front channel, rotate the latch bracket so that the two
slots in the latch bracket are to the front of the cabinet.
5. Align the slot closest to you over the edge of the front channel.
Align the center of the latch bracket with the lowest 1U notch. See
Figure 50 on page 59.
6. Push the latch bracket onto the front channel until it locks into
place.

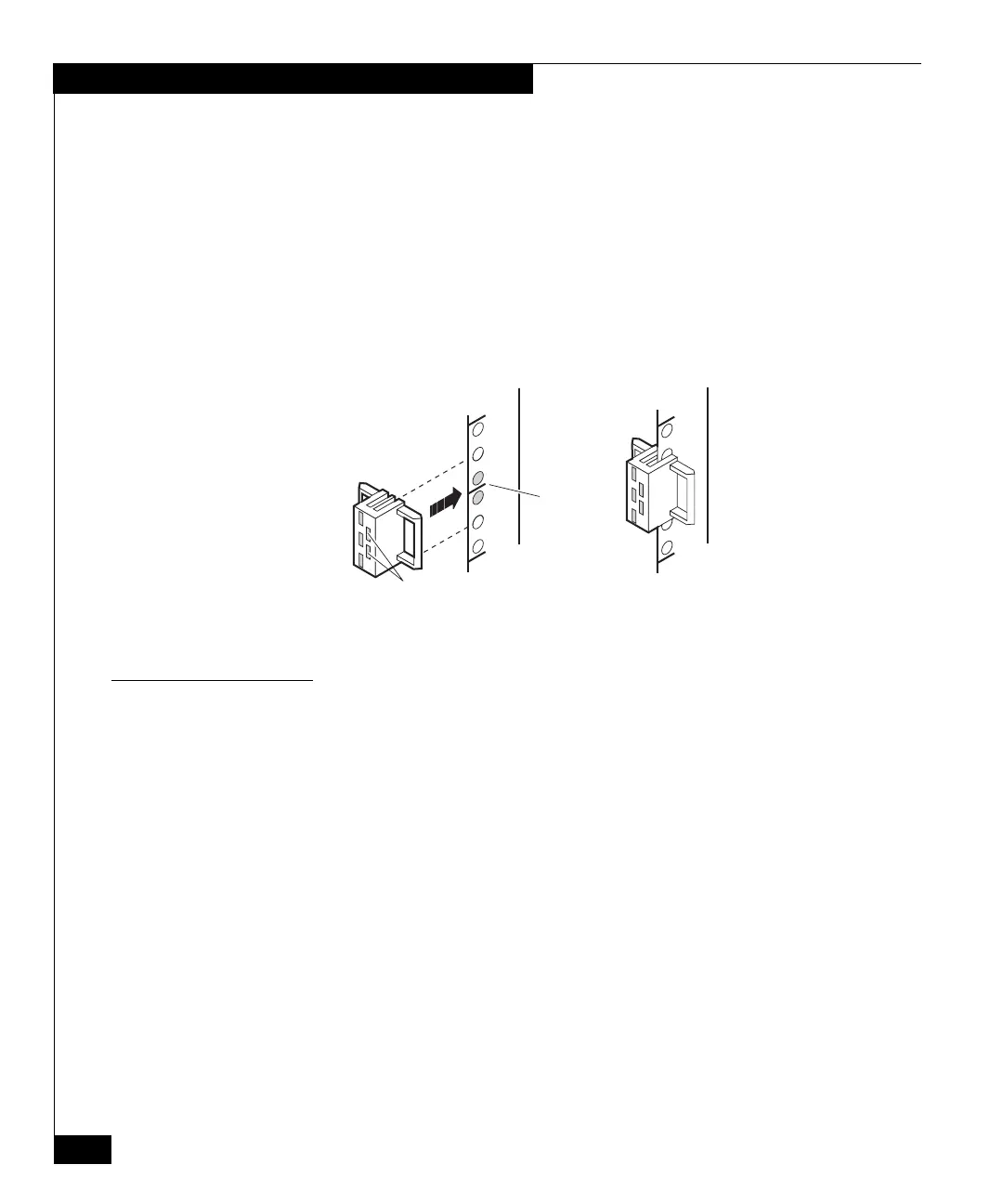

Figure 52 Installing the 3U latch bracket on the right channel
Installing the filler panel
Once you have the latch brackets installed on the front rails, you can
install the appropriate size filler panel. You will install all of the filler
panels on the latch brackets in the same way.
1. Align the vertical slots on the back of the filler panel with the
latch bracket.
EMC2893
2 Holes
1U
Notches
Right
Channel
Bracket in Place
To Next Page
