EMC Rails and Enclosures (CX4 Series Storage Systems) Field Installation Guide

Installing a 1U SPS tray and SPS units in a cabinet

Installing the rails in the cabinet

This section describes how to mount the rails in the cabinet.

1. After you decide where in the cabinet you want to install the SPS

tray, find the unoccupied 1U section on the rear channels. We

suggest that you install the SPS tray immediately above the SPE, if

possible.

2. From the front of the cabinet, insert the alignment pin on one

mounting rail assembly into the middle hole of the selected 1U

space on a rear channel. Figure 4 shows the correct channel holes

for the alignment pins.

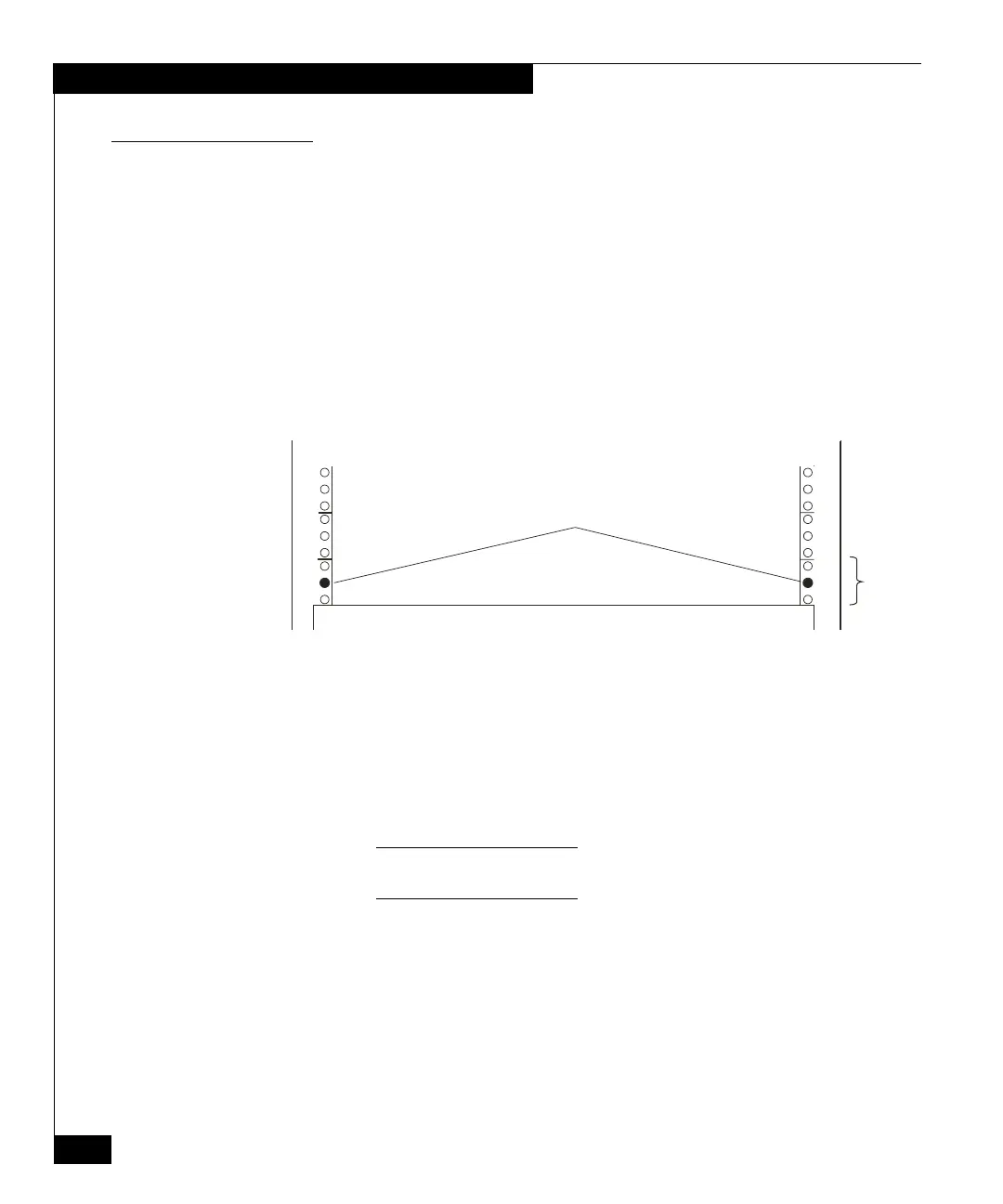

Figure 4 Aligning pins in a 1U section on the cabinet rear rails

Refer to Figure 5 on page 9 as you perform steps 3 and 4.

3. Extend the rail to the front cabinet channel. Align the holes of the

front rail flange to the inside of the channel, ensure that the rail is

level, and then install two M5 x 16-mm Phillips securing screws

in the top and bottom holes, as shown in Figure 5.

Note: Leave the screws slightly loose to allow for adjustment after you

install the tray. Do not insert a screw in the middle hole yet.

Alignment Pin

Here

EMC2922
