Self-venting pump head.
Self-venting pump head must be used when using chemicals that produce
gas (i.e. hydrogen peroxide, ammonium, sodium hypoclorite at particular conditions).
Hoses assembling procedure (including purge hose) is described in fig. (A).
Notes:
- suction, delivery and purge valves are DIFFERENT! Do not exchange them!
- delivery and purge hoses are made of same material!
- it’s allowed to lightly bend venting hose!
- during calibration procedure (“TEST”) insert venting hose into BECKER test-tube!
1
1
2
2
3
3
4
4
5
5
6
6
A A
B B
C C
D D
federico.renzi
10/04/2008
Progettato da Controllato da Approvato da
Data
1 / 1
Edizione Foglio
Data
to venting hose
to venting
hose
to suction hose
to suction hose
to delivery hose
to delivery hose
Progettato da: Controllato da: Data:
Edizione
Foglio
1 / 1
CORPO POMPA "LA" PMMA X POMPE
"AMS/K/T"
Assieme_CP_LA_PMMA
Massimo_F Massimo_F
17/01/2017
00
Toll. Gen.
±0.05
Peso Lordo: Peso Netto:
Materiale:

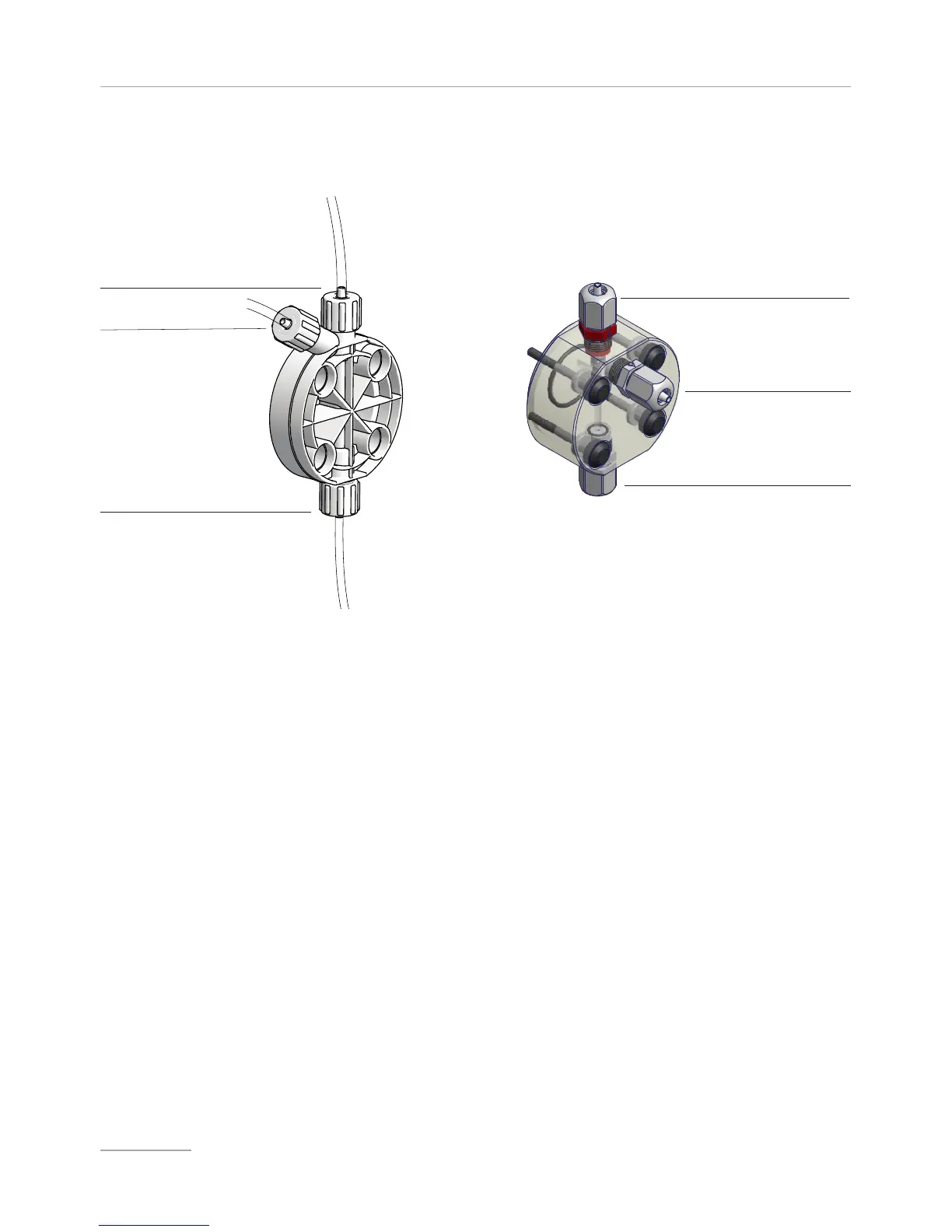

fig (D): pump head connections. fig (D1): PMMA pump head connections.
Flow direction is indicated by the arrow on the valves.
