Emec KMS MF - 3. PUMPS DESCRIPTION; Pump Head and Stroke Adjustment

8
3. PUMP’S DESCRIPTION
Progettato da Controllato da
Modificato da
Data
Edizione Foglio
/
A4emec
Massimo_F
26/05/2011
00
Toll. Gen.
 0.05
Materiale:
1 1
PVC GRIGIO
Progettato da Controllato da
Modificato da
Data
Edizione Foglio
/
A4emec
Massimo_F
26/05/2011
00
Toll. Gen.
 0.05
Materiale:
1 1
PVC GRIGIO

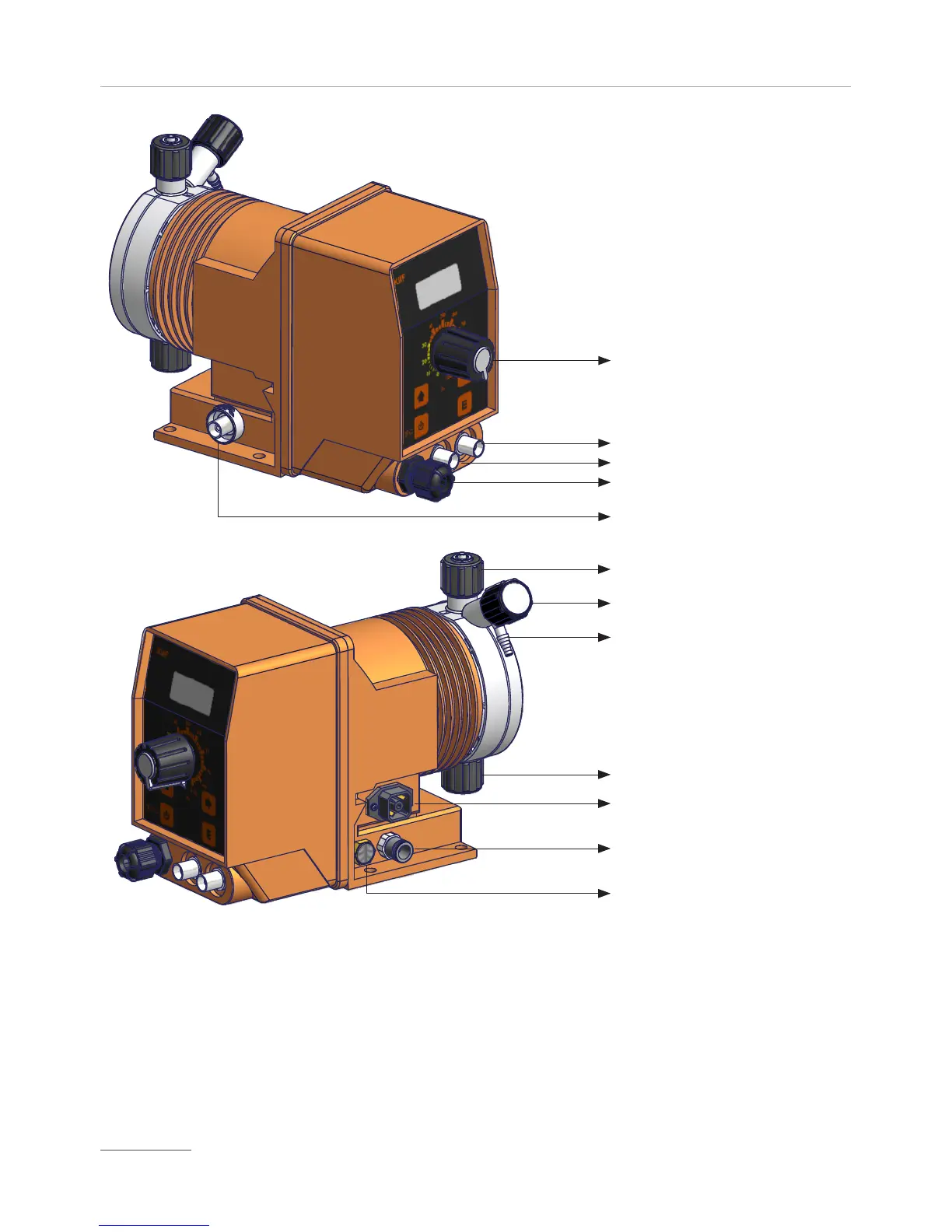

KMS MF (standard PVDF pump head)
Stroke length knob
Level probe input
External signal input
Power supply
Flow sensor input (SEFL)
Delivery connection
Venting knob
Venting connection
Suction connection
Compressed air input
(mod. KMS AC MF)
STAND-BY / ALARM input
Venting valve
(mod. KMS AC MF)
Manual
stroke length
adjustment
Max CC/stroke ( ⎘ Construction Materials and Technical info) are referred to Stroke length
knob on 100%.
If Stroke length knob is on 50% cc/stroke will be halved.
To regulate pump’s capacity: turn on the pump then press and rotate the knob.
Dosing accuracy is guarantee within an adjustment range from 30% to 100%.
Note: if knob isn’t on 100% position then the pump will dose at a pressure greater than the one
declared on label.
