Introduction.
The MAX5 is a multiple digital controller system. It reads and controls up to 5 channels that can be programmed to
control* pH - ORP - Chlorine - Turbidity - Temperature - Combined Chlorine (see Chlorine function for main options) -
Total Chlorine control (see Chlorine function for main options) - Conductivity - Dissolved Oxygen. It features 6 setpoint
outputs, 6 proportional pump outputs, 6 mA outputs,1 cleaning probe output and 5 level tank inputs. Three way setpoint
outputs program mode: on/off - PID - PWM. MAX5 can be connected to a PC for remote controlling / programming using
a standard USB port, RS485 connection, GSM or GPRS modem, ETHERNET.
Working ranges are:
pH : from 0 to 14pH
ORP: from 0 to 1000mv
Chlorine: from 0 to 10 mg/l
Turbidity: from 0 to 9999 NTU
Temperature: from 0 to 200 °C
Conductivity: from 0 to 300.0 mS
Dissolved Oxygen: from 0 to 20 mg/l
All information are provided through a widescreen LCD display (240x64). Using a revolutionary wheel control the instru-
ment can be easily programmed. MAX5 is housed into an IP65 plastic box. Measures are: L325 x H235 x D125 (including
wheel and connectors).

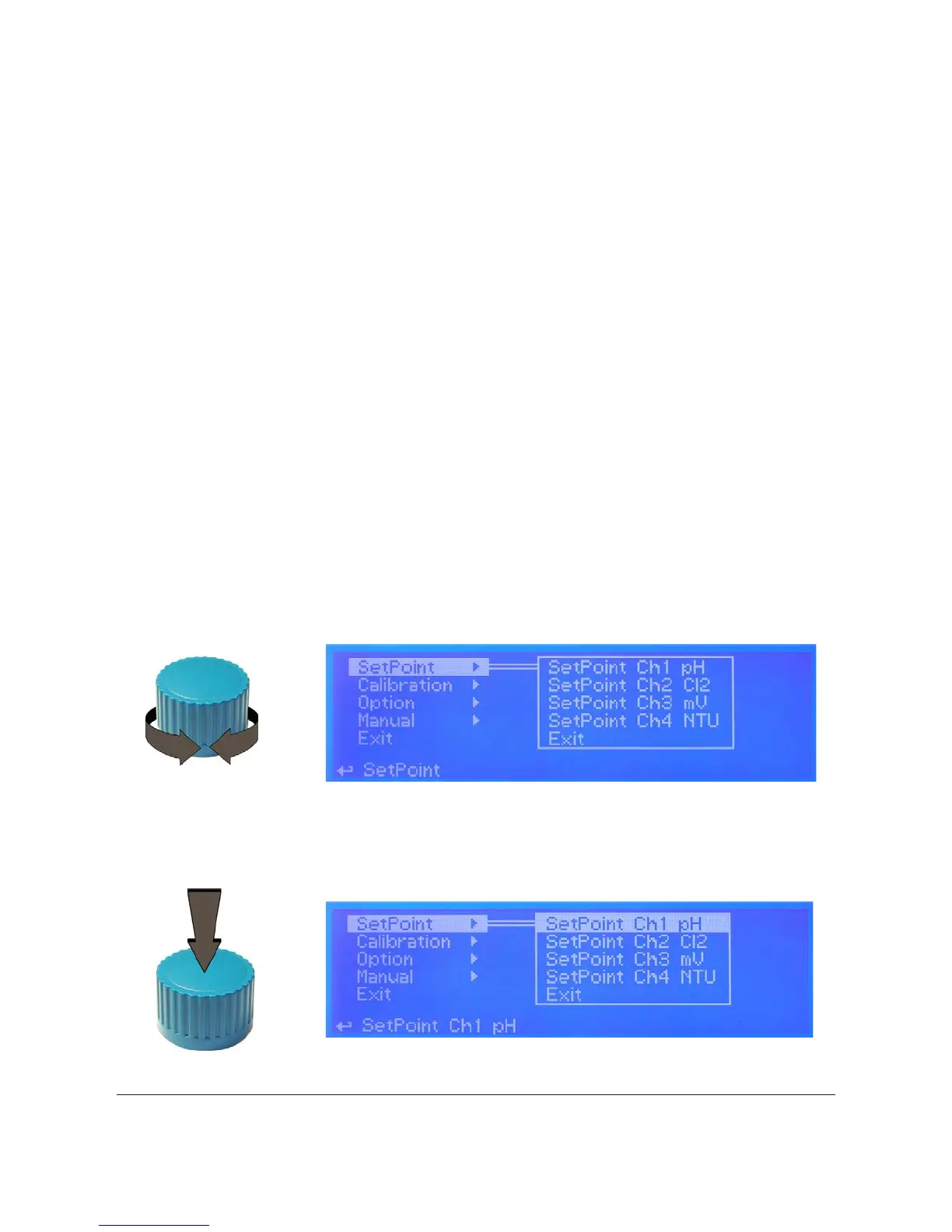

The wheel.
Located in the upper right side of MAX5 there is a wheel that must be used to control the instrument. Wheel can be
rotated in both directions to scroll over the menus and / or pressed to conrm highlighted selection / value.
NOTE: Once changes are made press “OK” to save and exit from submenu. Press “ESC” to exit without saving.
Into main menu rotate the wheel to cycle-loop through all options.
Clockwise: setpoint --> Calibration --> Option --> Manual -->Exit
or Counterclockwise.
Press wheel to move on submenu for selected option.
*conguration and screenshots may be different and not including some functions. A maximum of 5 channels can be set.
