Emec MAX5 - Manual Output Control; Manual Relay Activation; Manual Pulse Activation

34

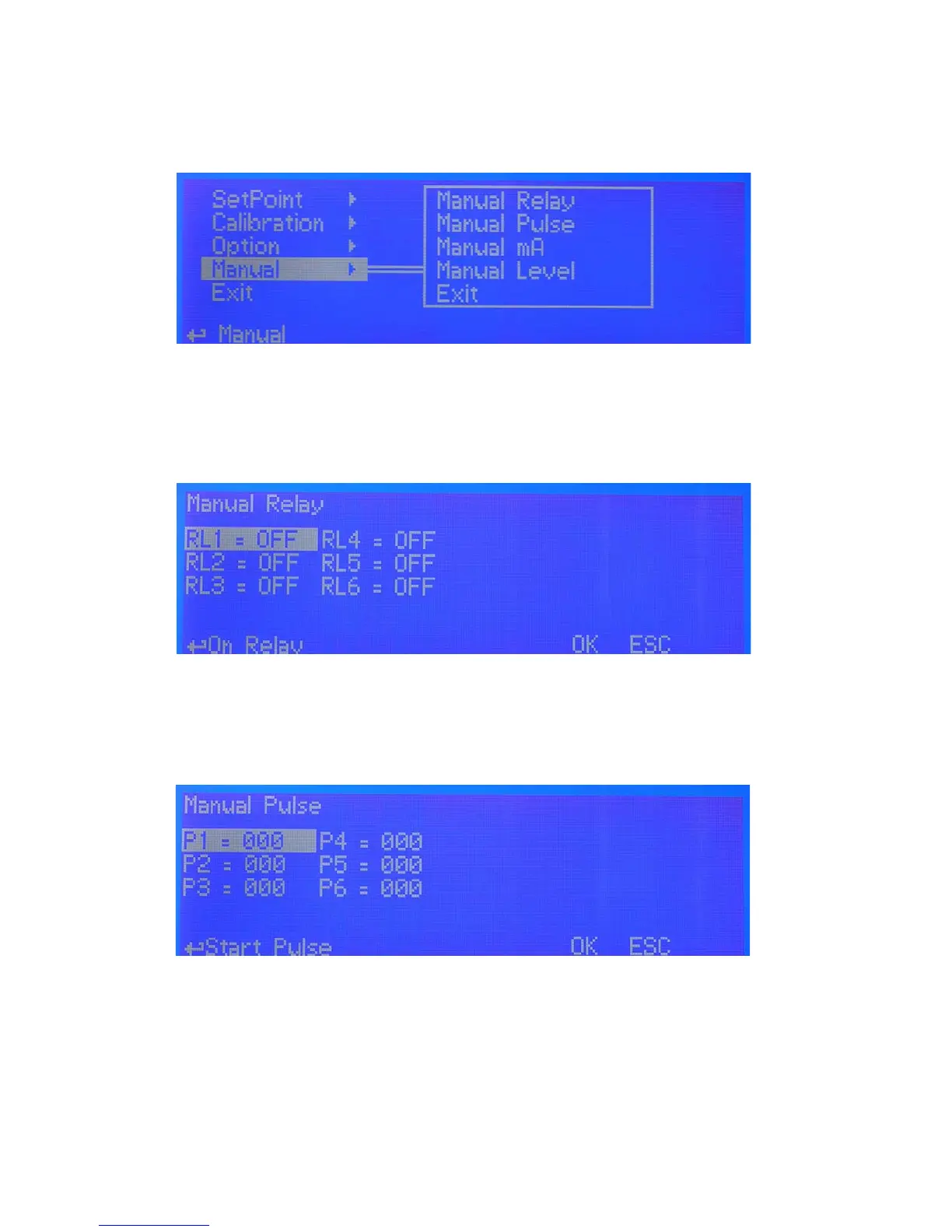

Manual.
Outputs may be activated manually for testing purposes.
“Manual Relay” will activate “setpoints outputs” (see page 4). Exiting from manual mode will revert selected output to its
original condition.
“Manual Pulse” will activate “Proportional pump outputs” (see page 5) with selectable pulses from 0 to 150 for each
ouptut. Exiting from manual mode will revert selected output to its original condition.
g. 33
g. 34
g. 35
