Emec MAX5 - Appendix: Inductive Conductivity Probe Connections

To Next Page

To Previous Page

8 WIRES CABLE:

4 PROBE WIRES

4 PT100 WIRES

Connect 4 probe wires to MDIND module as follows:

Block n.1 : blue

Block n.2 : black

Block n.3 : grey

Block n.4 : red

Connect 4 PT100 wires to mainboard (ref. p. 5) as follows:

Block n. 40 : green

Block n.41 : orange

Block n. 42 : white

Block n.43 : yellow

INDUCTIVE CONDUCTIVITY module (ECDIND probe)

ECDS IND PT PROBE

Connect 4 probe wires to MDIND module as follow:

Block n.1 : blue

Block n.2 : green

Block n.3 : red

Connect 4 PT100 wires to mainboard (ref. p. 5)

as follow:

Block n. 40 + 41: white

Block n. 42 + 43 : black

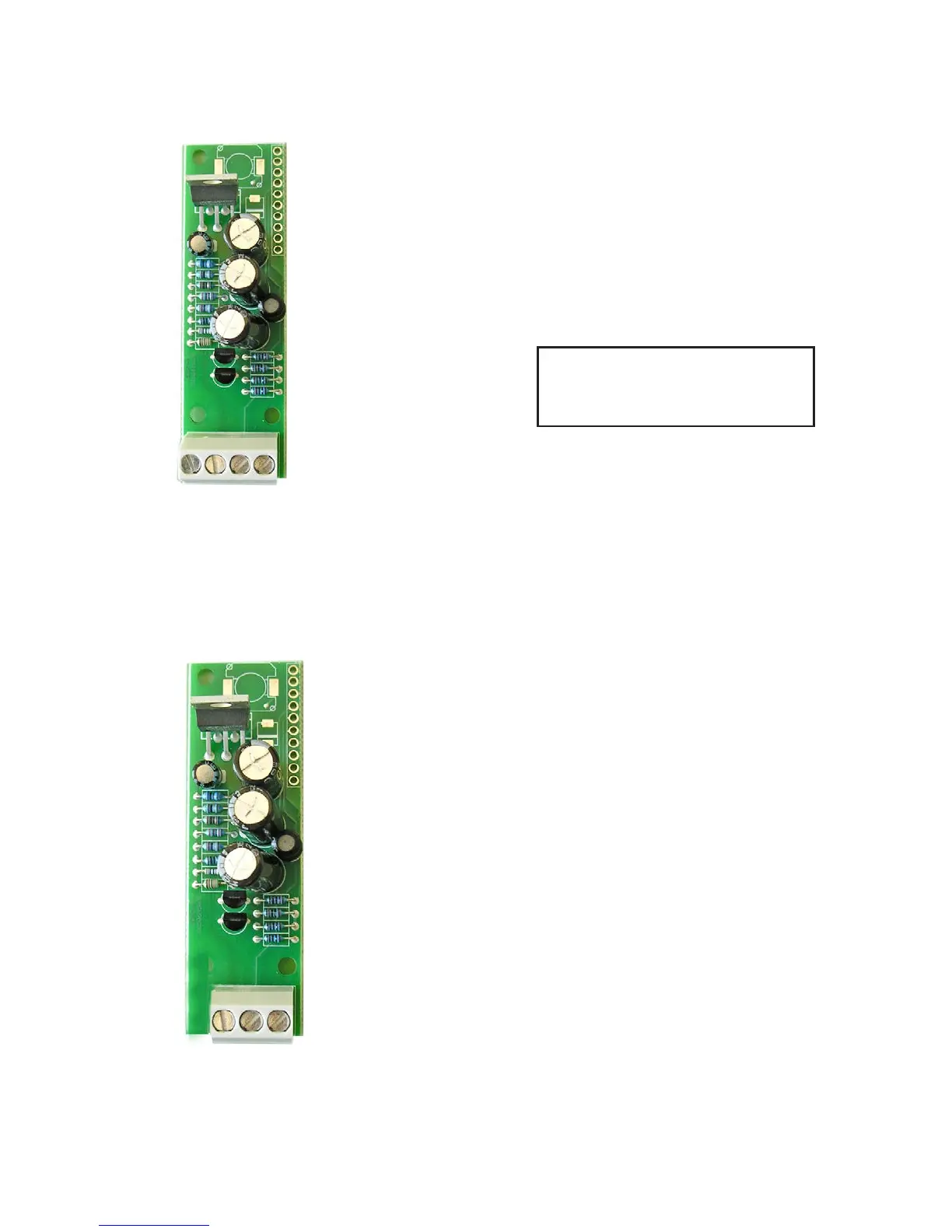

MDECDSIND

1 2 3

MDIND

1 2 3 4

MDECDSIND

When using two probes the scale settings

must be the same for both!
