2.4.4 Configure menu
Use this menu to configure sensors, variable mappings, units and alert limits.
There are two options to configure the device It is advisable to use Guided Setup.
Important
To be able to edit configuration settings, select Current in the Time drop-down menu at
the bottom of the screen.

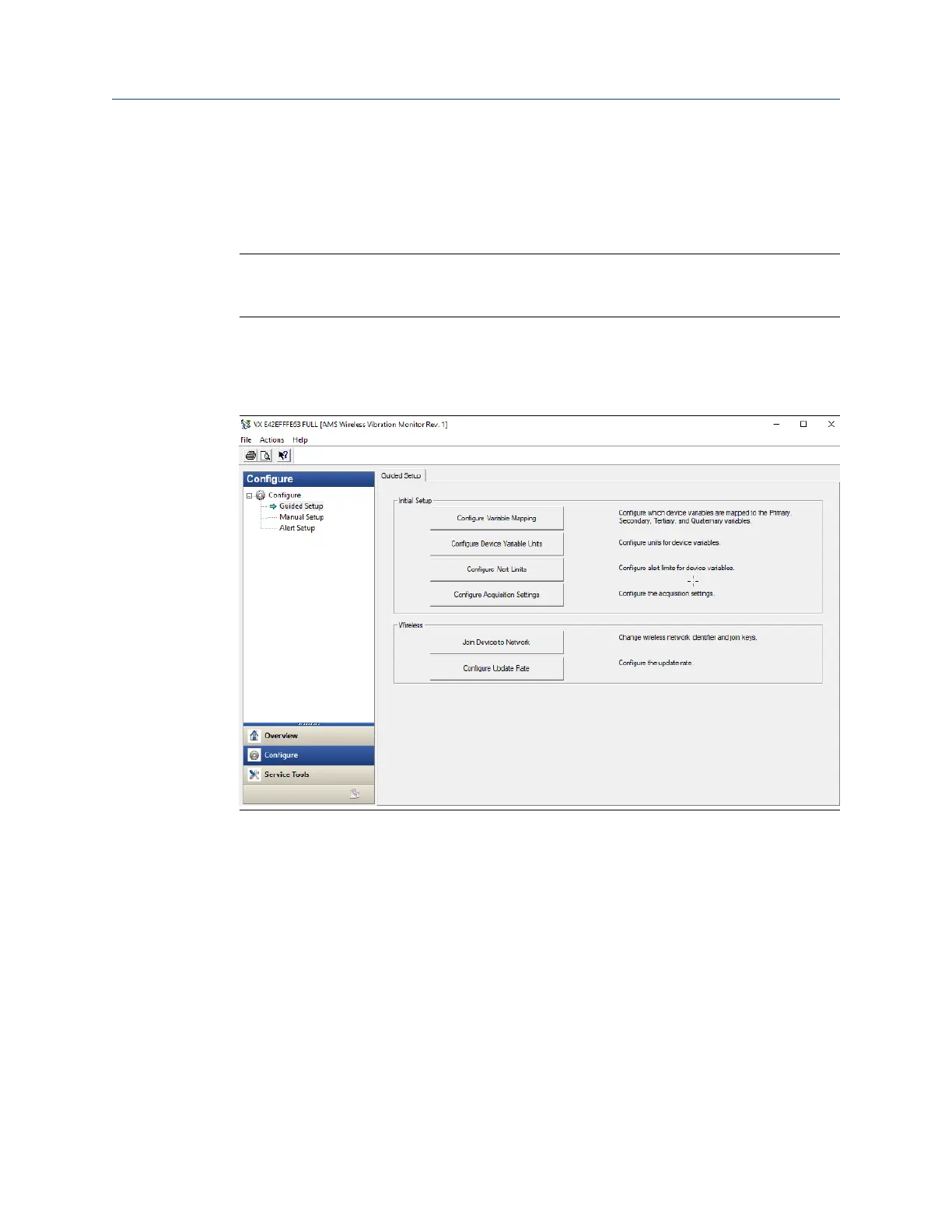

Guided setup
This option lets you configure device settings in a guided step-by-step process. Click each
of the buttons under Initial Setup to complete the guided setup.
Click Configure Variable Mapping to display or specify which measurements are reported
as the Primary, Secondary, Tertiary, and Quaternary variables.
Click Configure Device Variable Units to configure the units for device variables.
Click Configure Alert Limits to define the lower range and upper range values and alert
limits for Advisory, Maintenance, and Failure for each of the process variables. You can also
configure alert reporting from here.
Click Configure Acquisition Settings to set the acquisiton settings.
Click Join Device to Network to enter network identifiers and join keys that will enable the
device to join a wireless network.
Click Configure Update Rate to set how often the device acquires and reports new
measurements (update rate) and to specify the number of times the transmitter skips data
acquisitions between updates to the gateway.
