5. How to Wire Your Ceiling Fan (Continued)
TO MOTOR L
TO MOTOR N
AC IN N
AC IN L
FOR LIGHT
FAN AND
RECEIVER
WHITE WIRES
18 ga. WIRE
CONNECTOR
Figure 21
TO MOTOR L
TO MOTOR N
AC IN N
AC IN L
FOR LIGHT
FAN AND
RECEIVER
WHITE WIRES
18 ga. WIRE
CONNECTOR
Figure 22

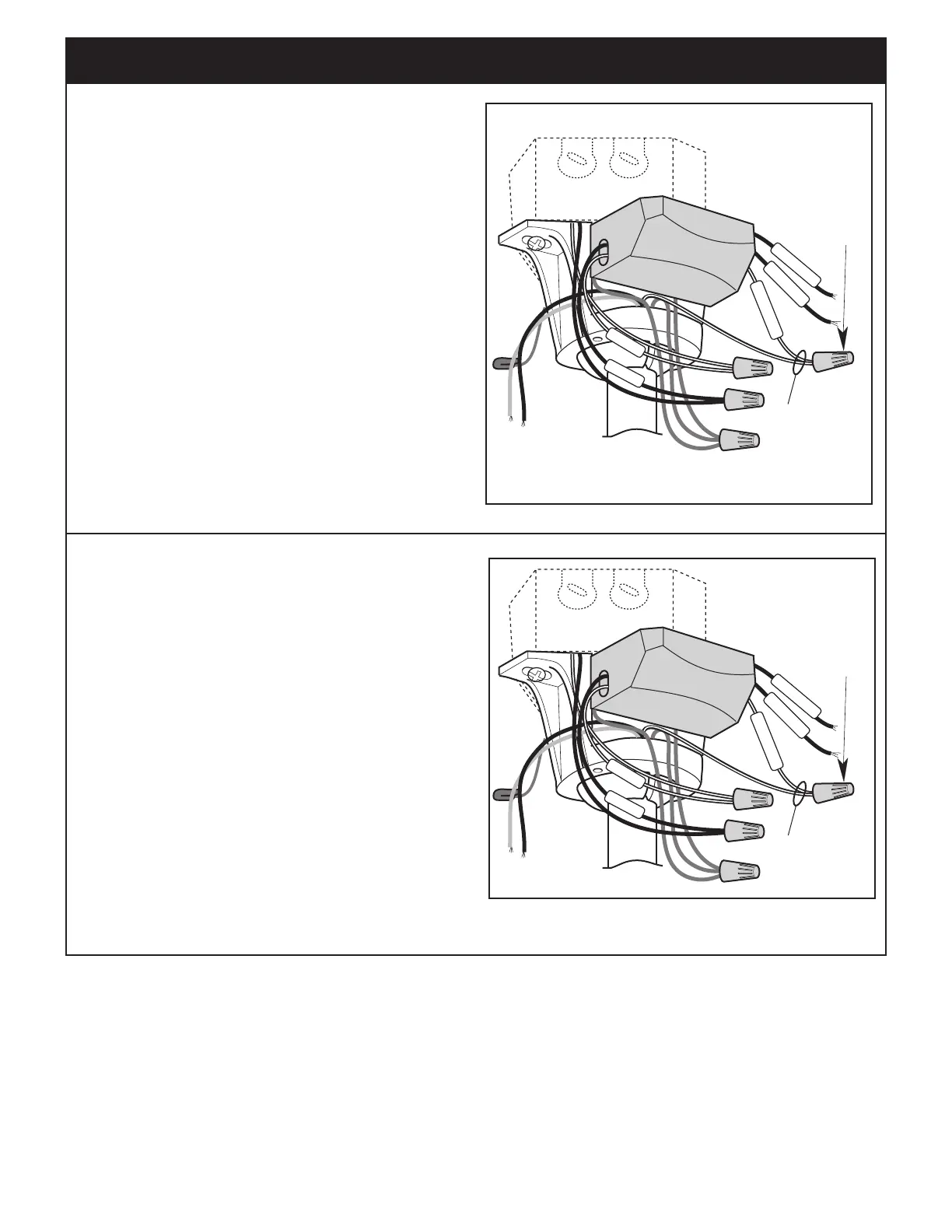

5.5
Securely connect the Receiver Black Wire (AC IN L)
to the Supply Black Wire (hot) using the 12 ga. Wire
Connector (supplied in parts bag) (Figure 21).
5.6
Securely connect the Receiver White Wire
(TO MOTOR N) to the Fan Motor White Wire using
the 18 ga. Wire Connector (supplied with the receiver)
(Figure 22).
