Emerson ASTOR User Manual

16
ETL Model No.: CF235

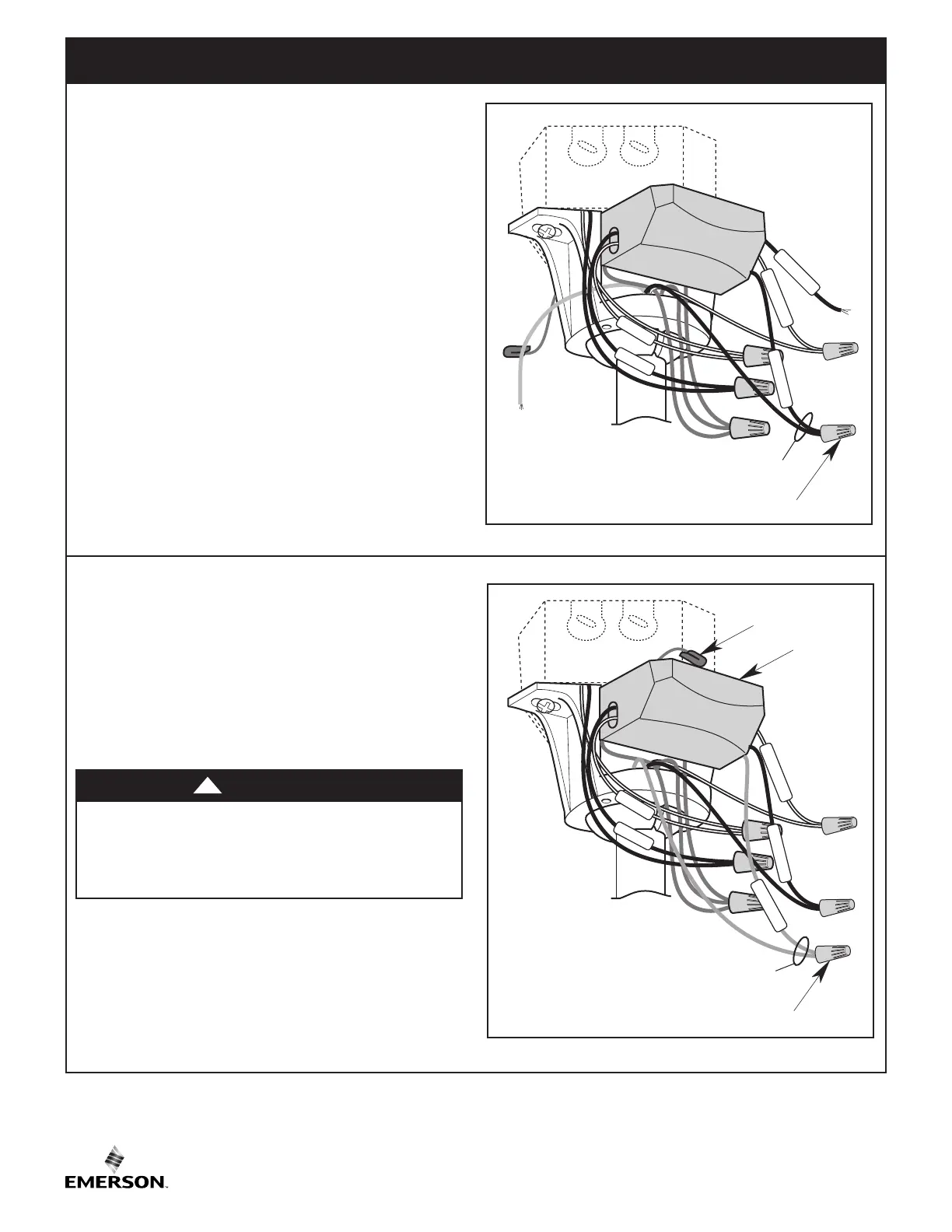

5. How to Wire Your Ceiling Fan (Continued)
5.7
Securely connect the Receiver Black Wire (TO MOTOR L)
to the Fan Motor Black Wire using the 18 ga. Wire
Connector (supplied with the receiver) (Figure 23).
5.8
Securely connect the Receiver Blue Wire (TO LIGHT)
to the Fan Motor Blue Wire using the 18 ga. Wire
Connector (supplied with the receiver) (Figure 24).
Position the Antenna Wire on top of the Receiver. Slide
the Receiver completely onto the Hanger Ball, nestled
in the Hanger Bracket (Figure 24).
NOTE: Failure to properly connect the Receiver
Wires will damage the device and render it
non-operable.
TO MOTOR N
AC IN N
AC IN L
FOR LIGHT
TO MOTOR L
SUPPLY AND RECEIVER
BLACK WIRES
18 ga. WIRE CONNECTOR
Figure 23
TO MOTOR N
AC IN N
AC IN L
TO MOTOR L
FOR LIGHT
18 ga. WIRE CONNECTOR
SUPPLY AND RECEIVER
BLUE WIRES
ANTENNA WIRE
RECEIVER
Figure 24
Check to see that all connections are tight, including
ground, and that no bare wire is visible at the wire
connectors, except for the supply circuit ground wire.
Do not operate fan until blades are in place.
Noise and fan damage could result.
WARNING
!
