6
EN Drive Installation Manual

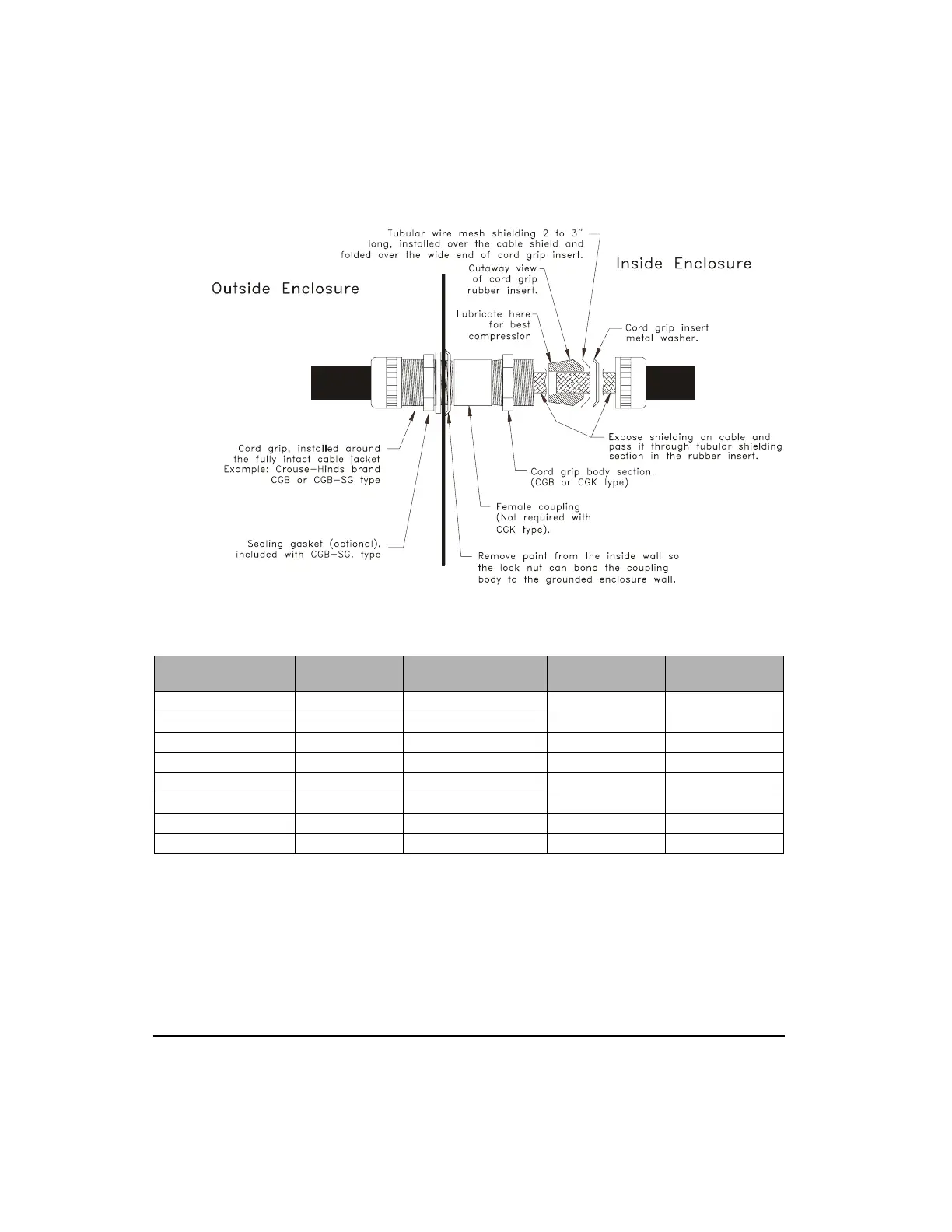

Figure 2: Assembly Drawing for Shielded Cable Grommet Kits In Table Below.
Cable Type
Cable
Model
Shielded Cable Grommet
Kit Model
Conduit Dimension
Hole Size
Actual Hole Size
Motor Cable, 16 Ga CMDS CGS-050 1/2" pipe 7/8"
Motor Cable, 12 Ga CMMS CGS-050 1/2" pipe 7/8"
Feedback Cable CFOS CGS-050 1/2" pipe 7/8"
Flex Motor Cable, 16 Ga CMDF CGS-050 1/2" pipe 7/8"
Flex Motor Cable, 12 Ga CMMF CGS-075 3/4" pipe 1 1/16"
Flex Feedback Cable CFCF, CFOF-A CGS-063 3/4" pipe 1 1/16"
External Encoder ENCO CGS-038 1/2" pipe 7/8"
AC Power user supplied user supplied user supplied user supplied
