41
Diagnostics and Troubleshooting

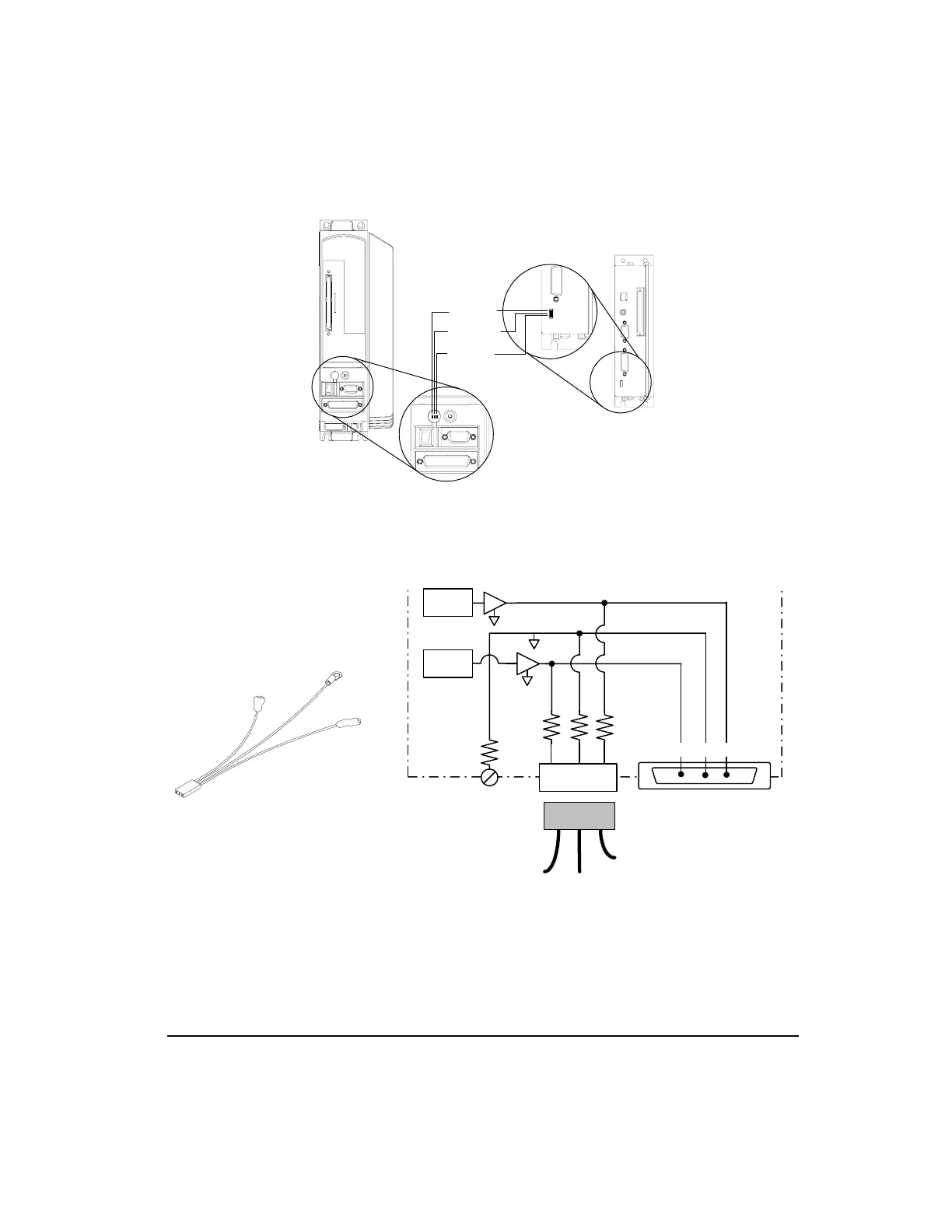

Figure 34: Diagnostic Analog Output Test Points
The DGNE cable was designed to be used with either an oscilloscope or a meter. The wires
are different lengths to avoid shorting to each other. However, if signals do get shorted to
GND, the drive will not be damaged because the circuitry is protected.
Figure 35: Diagnostic Cable (DGNE) Diagram
Channel #2
Channel #1
Analog GND
E Series Drive
Epsilon Drive
10 Ohm
10 Ohm
Yellow
Black
(GND)
Blue
D/A
D/A
DGNE Cable
Command Connector
DGNE Cable
2GND1
2
1
GND
44 29 43
Pin #'s
