1 Introduction
CoreSense™ is an ingredient brand name for compressor electronics associated with Emerson’s Copeland™
brand products. CoreSense technology uses the compressor as a sensor to unlock information from within the
compressor providing value added features such as advanced motor protection, diagnostics, power consumption
measurement and communication.
With active protection, advanced algorithms, and features like fault history and LED indicators, CoreSense
Diagnostics for Copeland brand products compressors enable technicians to diagnose the past and recent state of
the system, allowing for quicker, more accurate diagnostics and less downtime. CoreSense Diagnostics is available
as standard with the 4- and 6-cylinder Stream compressors.

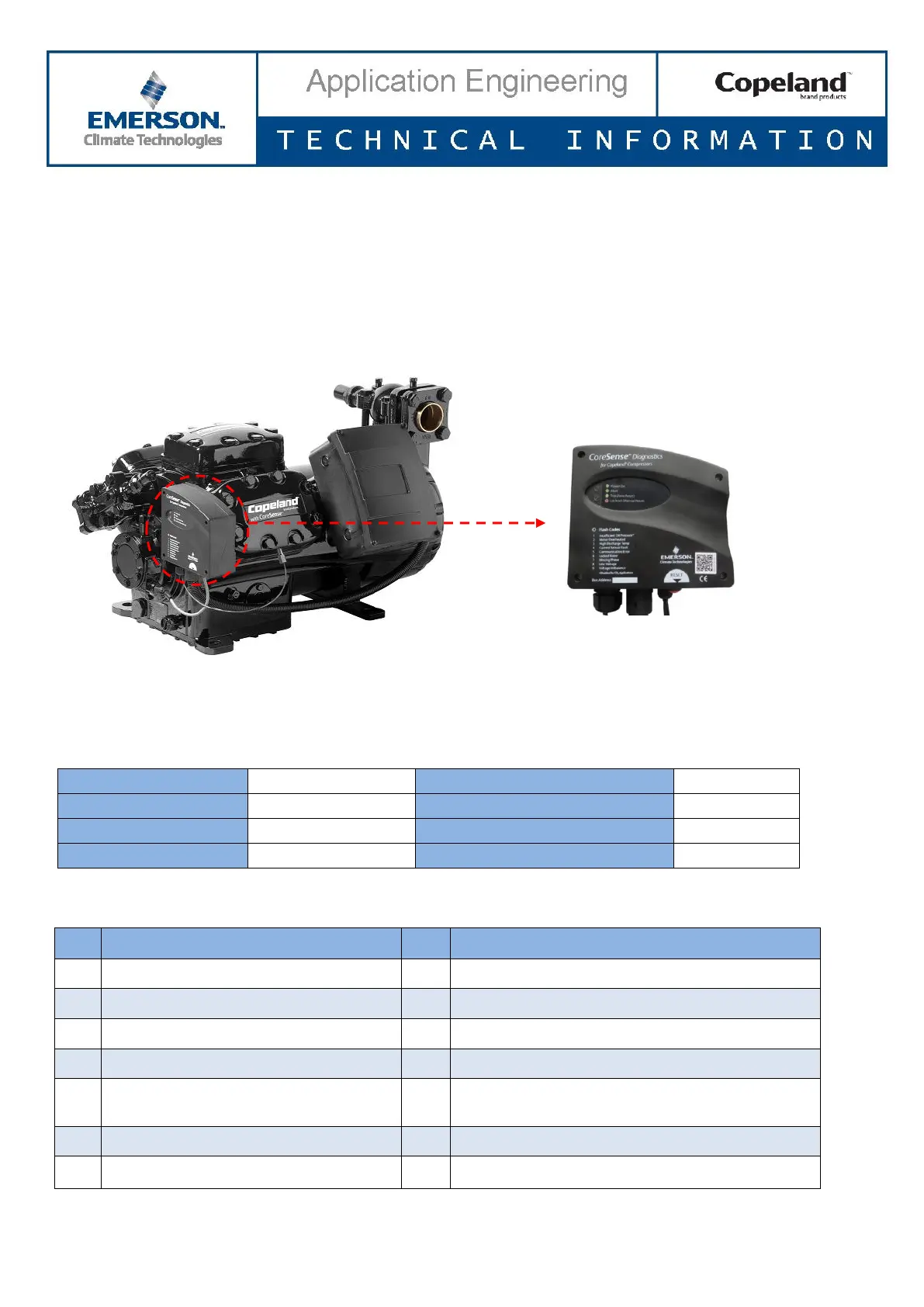

Figure 1: Stream compressor with CoreSense Diagnostics
2 Specifications
Power supply for control module (in front of the compressor) is 120V AC or 240V AC. The sensor module needs
24V AC power supply.
Operating temperature
-32°C to 66°C
Steady load current for relay
3A
Voltage requirements
120V AC or 240V AC
Power rating for the sensor module
3VA
Inrush current for relay
19A
Storage temperature
-40°C to 85°C
Voltage sensor module
24V AC
Protection class
IP54
Table 1
3 CoreSense Diagnostics features
Nr
Feature
Nr
Feature
1
Motor overheat protection
8
Alarm history and compressor operating conditions
2
Insufficient oil pressure protection
9
Crankcase heater control
3
High discharge temperature protection
10
Reset
4
Locked rotor protection
11
Modbus® communication
5
Missing phase protection
12
Power consumption measurement (voltage, current,
power factor)
6
Voltage imbalance protection
13
LEDs on the front module to display the failures
7
Low voltage protection
14
Compressor run status (proofing)
Table 2
