Emerson CSI 9420 Quick Installation Guide

Quick Installation Guide
P/N MHM-97409.4
April 2010
CSI 9420
5
tighten.
7. Position the antenna such that it is vertical, either straight up or straight down.

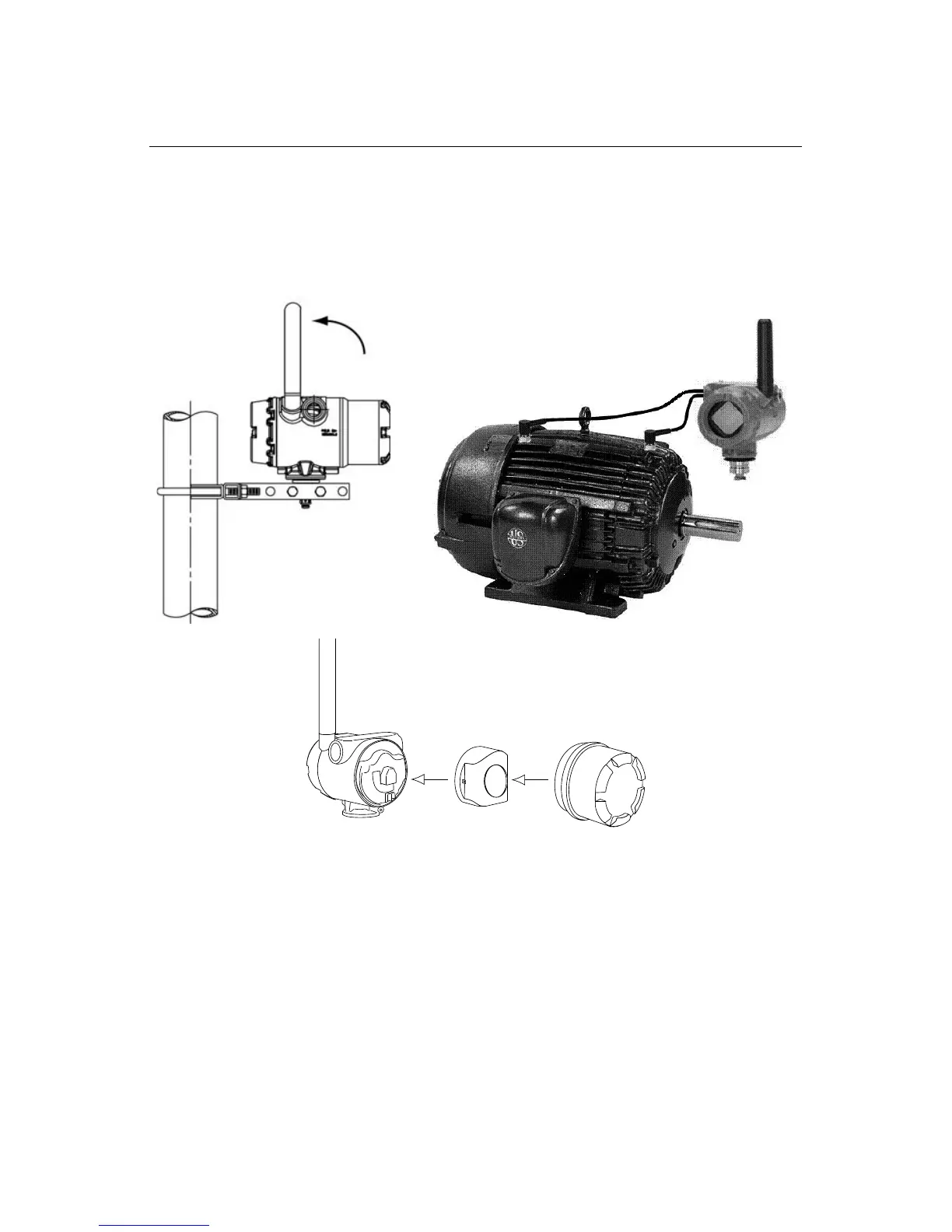

Figure 2. Remote mounting of the CSI 9420 involves mounting the device away from the equipment to be
measured (upper left), connecting a sensor or accelerometers to the equipment and the CSI 9420 (upper
right), and removing the rear cover and power module of the device to connect the sensor wires (bottom).
