Variables
Click Variables to display graphical gauges of sensor and device variables.

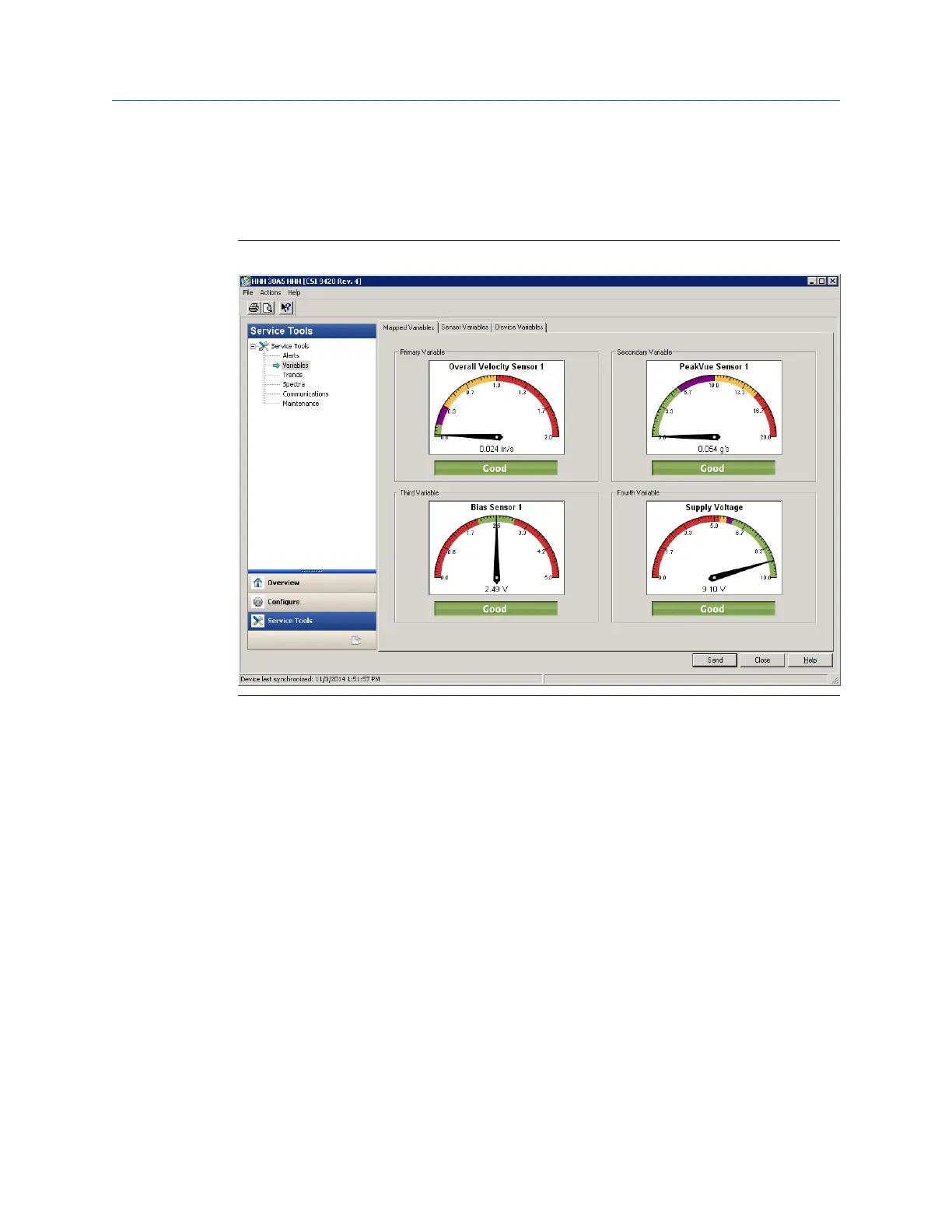

VariablesFigure 2-31:
Click the Mapped Variables tab to display graphical gauges of variables and their mappings.
Click the Sensor Variables tab to display graphical gauges of the variables for each connected
sensor.
Click the Device Variables tab to display graphical gauges of ambient temperature and supply
voltage variables.
Configuration
50 MHM-97408, Rev 15
