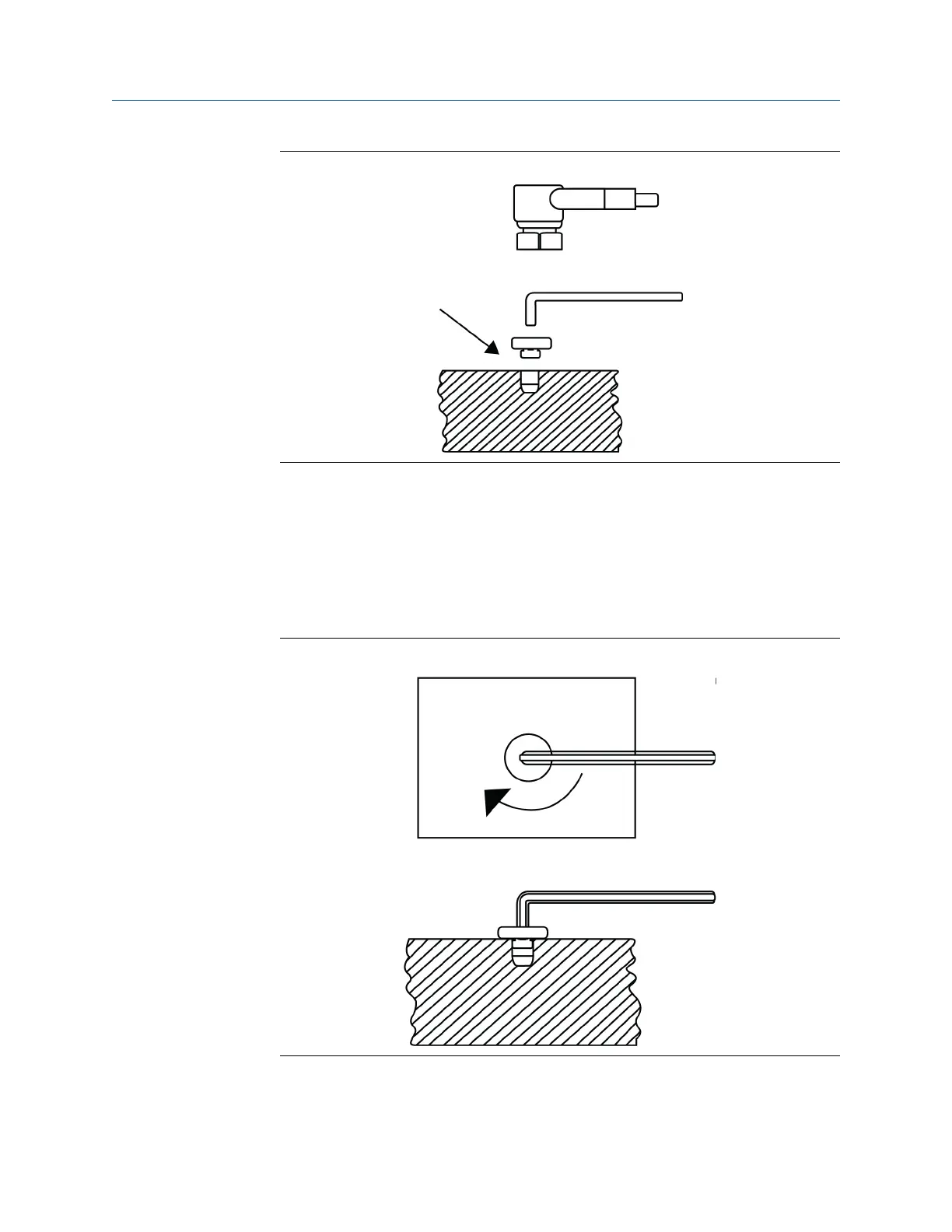

Apply thread locker onto mounting locationFigure 3-4:
3. Using a 1/8 in. Allen key (English mounting stud) or a 4 mm Hex Allen key (metric
mounting stud), loosely screw the mounting stud into the mounting location.
The mounting location is the machine surface when using stud mount and the
mounting pad when using epoxy mount.
4. Using a torque wrench with 1/8 in. hex bit, torque to 7–8 ft-lb (9.5–10.8 N-m) to
tighten the mounting stud.
Tighten the mounting studFigure 3-5:
Setup
MHM-97408, Rev 15 75
