1592001830 XC645D GB r3.4 04.09.2017.docx XC645D 6/50
5. WIRING & ELECTRICAL CONNECTIONS
5.1 General warnings
Before connecting cables make sure the power supply complies with the instrument’s
requirements.
Separate the probe cables from the power supply cables, from the outputs and the power
connections.
Do not exceed the maximum current allowed on each relay 5A resistive, in case of heavier
loads use a suitable external relay.

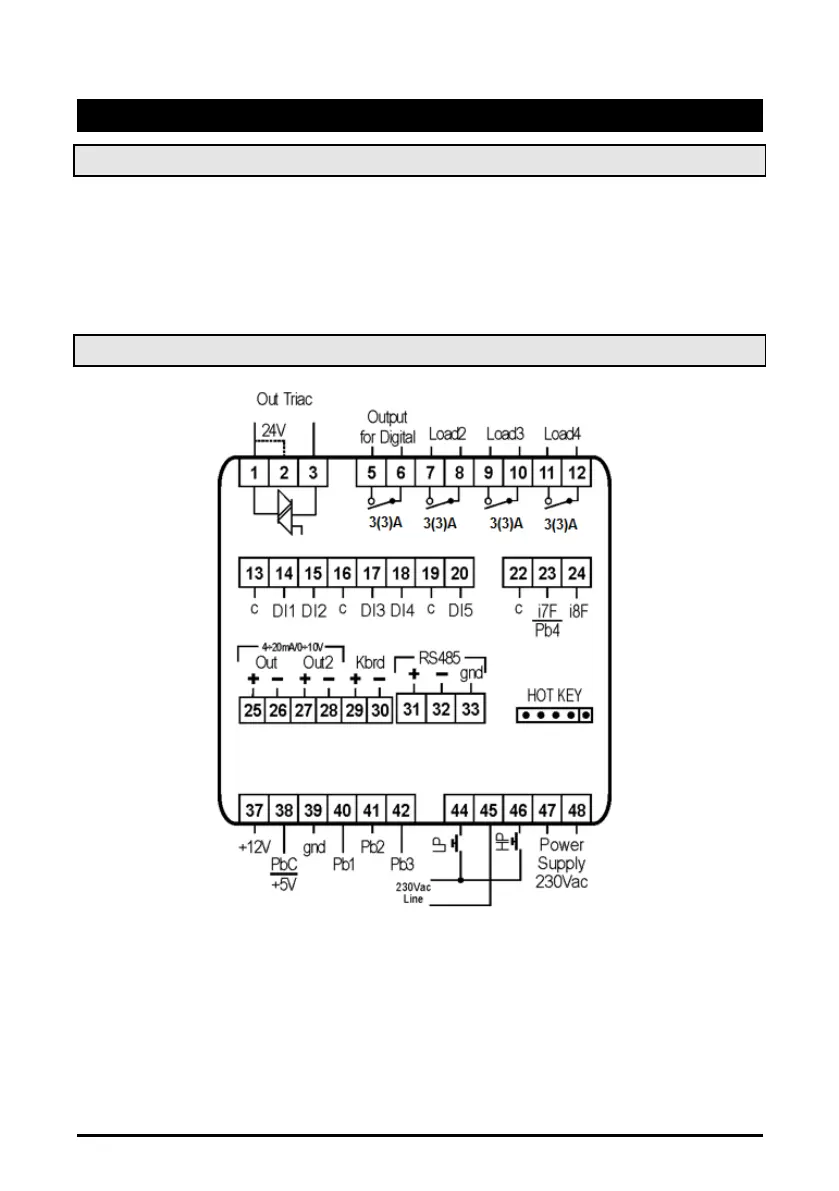

5.2 Wiring connections
NOTE
120V version: use terminals 47-48 for power supply: Terminals 44-45-46 operate at 120V
90-260V version: use terminals 47-48 for power supply: Terminals 44-45-46 operate at the same
voltage
24V version: use terminals 47-48 for power supply; Short circuit terminal 1-2.
