FB1100/FB1200 Flow Computer Termination Board Field Replacement Guide
D301820X012
November 2020
1
Removing/Replacing Termination Boards
MAY CAUSE INJURY TO PERSONNEL OR DAMAGE EQUIPMENT
Because I/O, ground, and other wires enter the flow computer through conduit fittings and
then connect to the termination board, a qualified technician must disconnect all wiring
coming into the flow computer and pull it out through the conduit fittings in order to replace
the termination board.
You must then install the new termination board and completely rewire the unit.
If not already done, be sure to label all wires before disconnecting so you can identify them
later during the rewiring process.

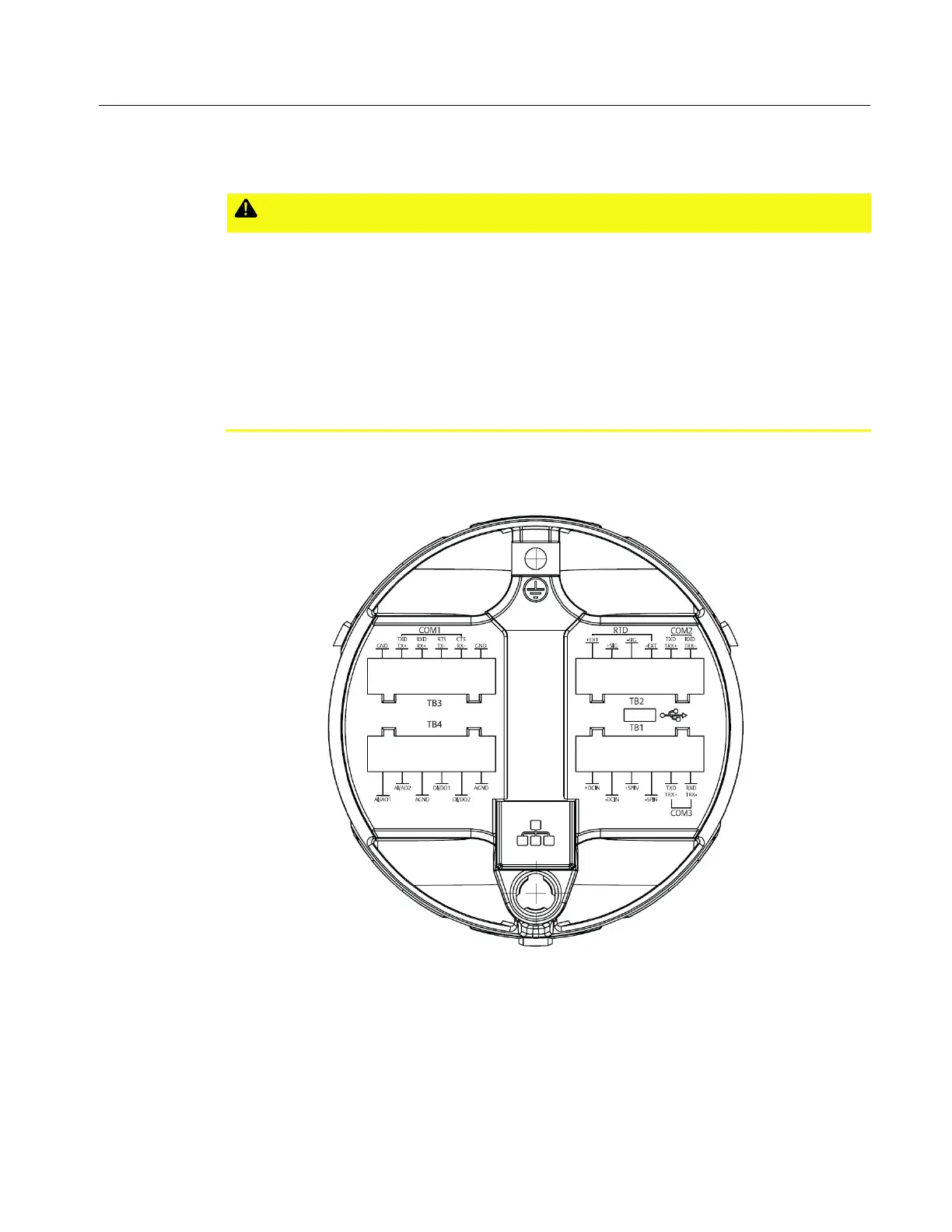

The FB1100 Flow Computer includes a single type of termination board that uses 6-connector
pluggable terminal blocks.
The FB1200 Flow Computer supports the same termination board and blocks. In addition, if the
FB1200 Flow Computer is purchased with the 6-channel expansion I/O board, it uses a different
termination board with 8 (or in one case 9) connector pluggable terminal blocks.
