% Range displays the process variable as a percent of span (determined by the LRV and URV).
PV/% Range alternately displays the process variable in engineering units and the process variable in percent of
span.
D Decimal Places—Select the number of decimal places to display, up to four. Setting the value to zero puts the
display in auto‐scale mode. It will then display as many decimals places as will fit.
If PV/Proc Temp or PV/% Range is selected, the display alternates every two seconds between the selected readings.
The meter also simultaneously displays the analog output signal using a percent of scale bar graph around the
perimeter of the display face as shown in figure 4‐6, no matter what display type is selected.

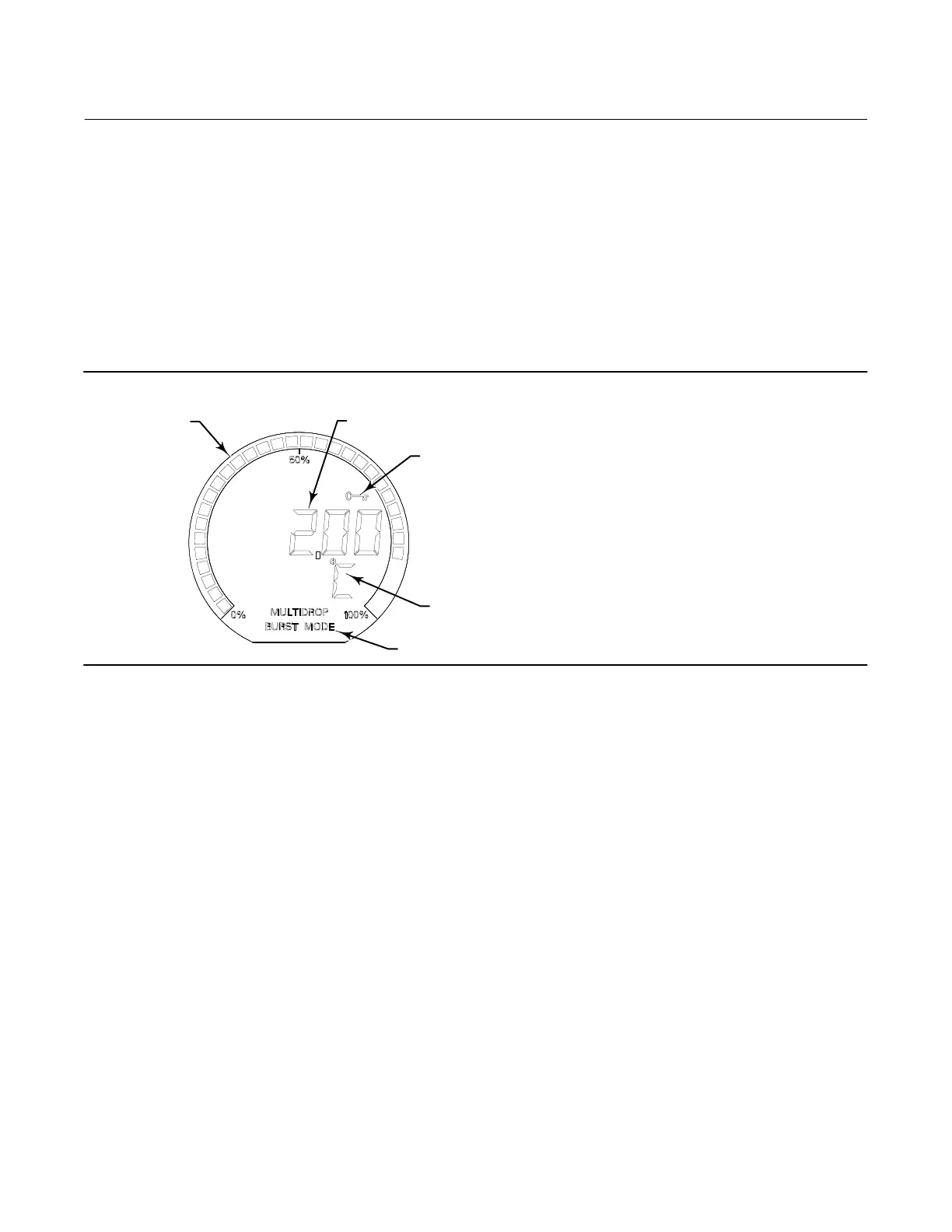

Figure 4‐6. LCD Meter Display
WHEN PRESENT,
INDICATES WRITE
PROTECTED
PROCESS VARIABLE VALUE
MODE
PROCESS
VARIABLE UNITS
ANALOG OUTPUT
DISPLAY
E0371
After you have selected the desired meter settings, press SEND on the Field Communicator to download the meter
settings to the instrument.
