DLC3010 Digital Level Controller
Introduction and Specifications
May 2018
9

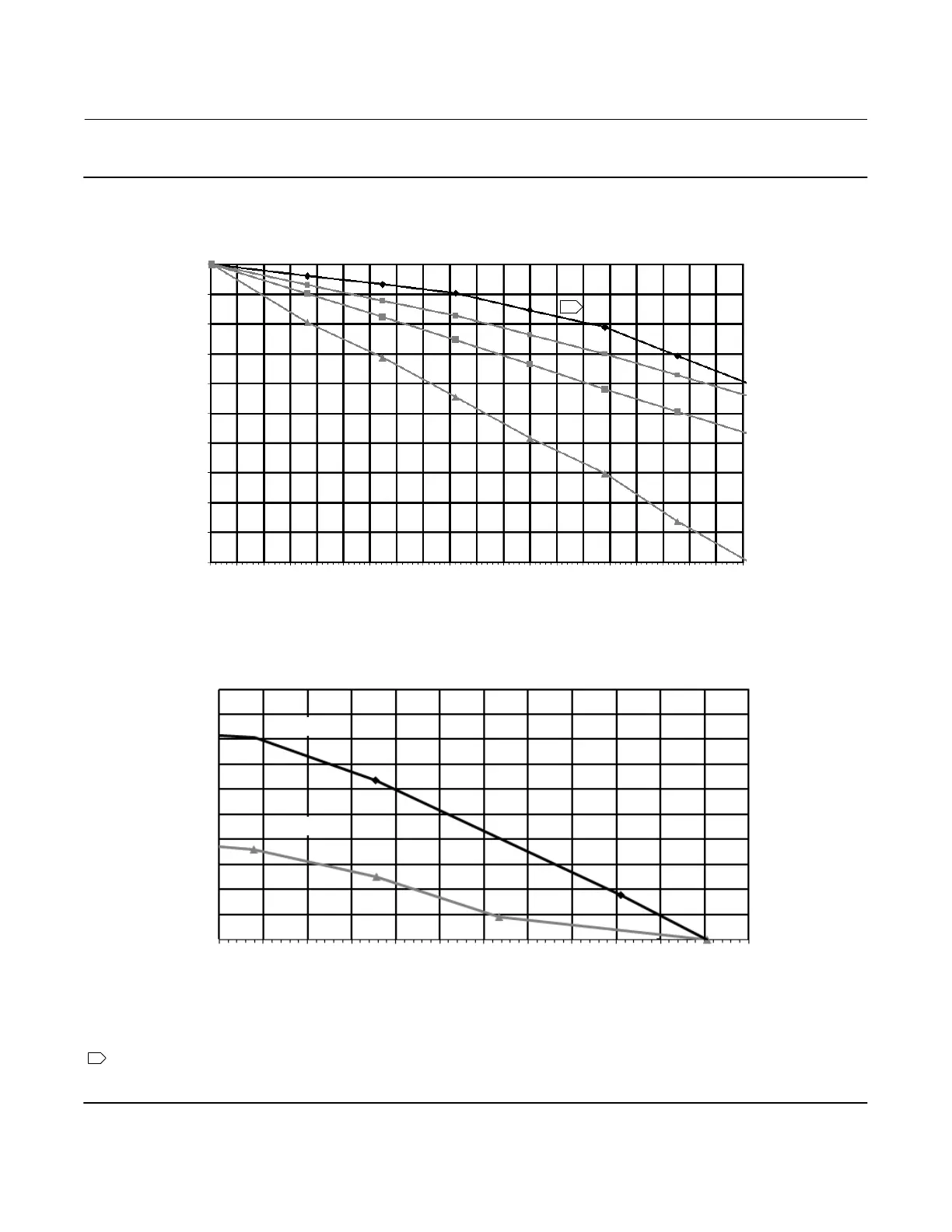

Figure 1‐2. Theoretical Reversible Temperature Effect on Common Torque Tube Materials, Degrees Celsius
TORQUE RATE REDUCTION
(NORMALIZED MODULUS OF RIGIDITY)
G
norm
TEMPERATURE (_C)
N05500
N06600
N10276
S31600
20 40 60 80 100 120 140 160 180 200 220 240 260 280 300 320 340 360 380 400 420
1.00
0.96
0.92
0.88
0.84
0.82
0.80
0.90
0.86
0.98
0.94
NOTES:
1 DUE TO THE PERMANENT DRIFT THAT OCCURS NEAR AND ABOVE 260_C, N05500 IS NOT
RECOMMENDED FOR TEMPERATURES ABOVE 232_C.
2 FOR PROCESS TEMPERATURES BELOW -29_C AND ABOVE 204_C SENSOR
MATERIALS MUST BE APPROPRIATE FOR THE PROCESS; SEE TABLE 1‐4.
1
G
norm
TEMPERATURE (_C)
1.10
1.08
1.06
1.04
1.02
1.01
1.00
1.05
1.03
1.09
1.07
TORQUE RATE AMPLIFICATION
(NORMALIZED MODULUS OF RIGIDITY)
CRYOGENIC
N05500
S31600
-200 -180 -160 -140 -120 -100 -80 -60 -40 -20 0 20 40
