Instruction Manual
D103785X012
Introduction
June 2017
4
Using a personal computer and ValveLink software or
AMS Suite: Intelligent Device Manager, or a Field
Communicator, you can perform several operations with
the DVC6000 HW2 digital valve controller. You can
obtain general information concerning software revision
level, messages, tag, descriptor, and date.
Diagnostic information is available to aid you when
troubleshooting. Input and output configuration
parameters can be set, and the digital valve controller can
be calibrated. Refer to table 1‐1 for details on the
capabilities of each diagnostic tier.
Using the HART protocol, information from the field can
be integrated into control systems or be received on a
single loop basis.
The DVC6000 HW2 digital valve controller is designed to
directly replace standard pneumatic and electro‐
pneumatic valve mounted positioners.

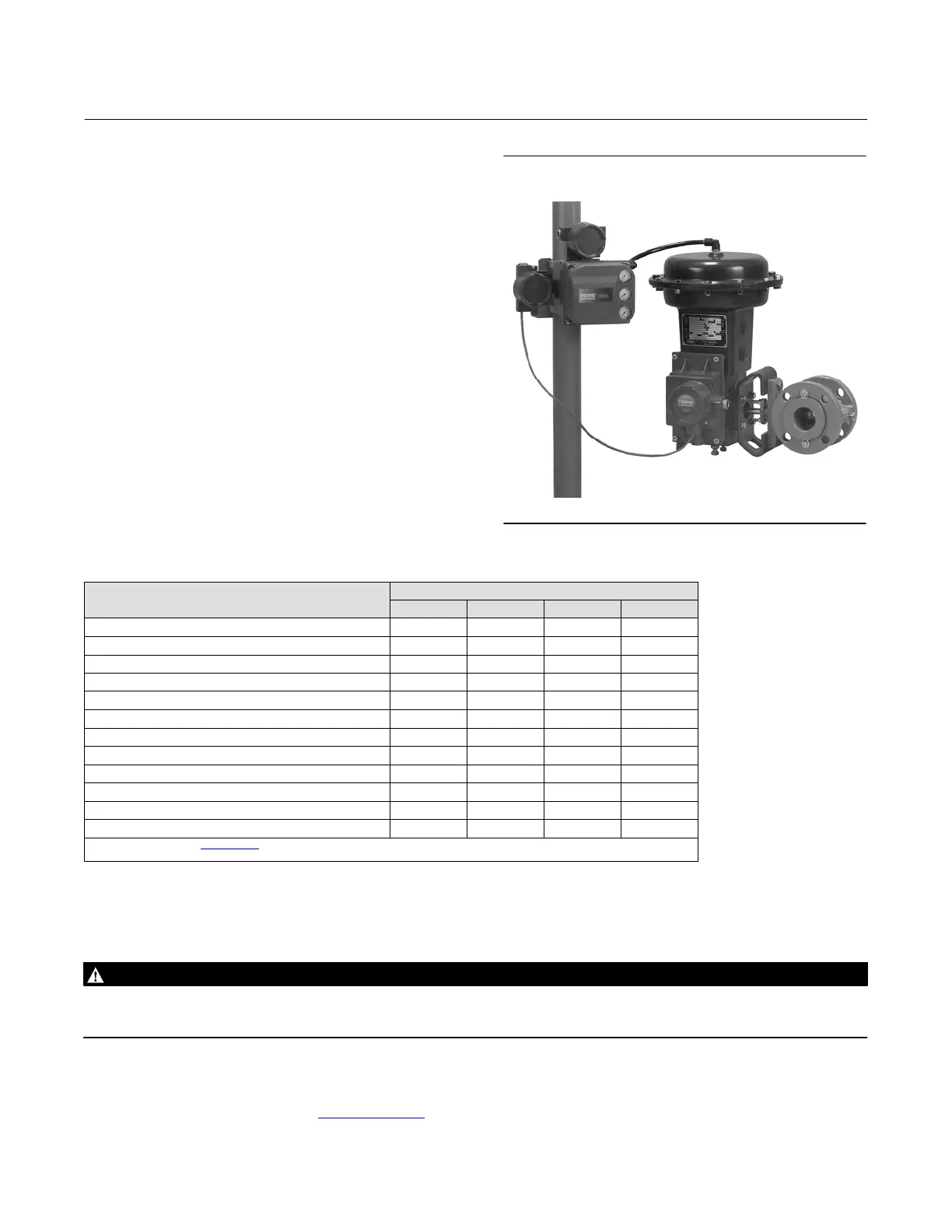

Figure 1‐1. DVC6000 HW2 Digital Valve Controller
Mounted on Rotary Control Valve/Actuator
W8373
Table 1‐1. Instrument Level Capabilities
CAPABILITY
DIAGNOSTIC LEVEL
(2)
HC AD PD ODV
Auto Calibration X X X X
Custom Characterization X X X X
Burst Communication X X X X
Alerts X X X X
Step Response, Drive Signal Test & Dynamic Error Band X X X
Advanced Diagnostics (Valve Signature) X X X
Performance Tuner X X X
Travel Control ‐ Pressure Fallback X X X
Supply Pressure Sensor X X X
Performance Diagnostics X X
Solenoid Valve Testing X X
Lead/Lag Set Point Filter
(1)
X
1. Refer to brochure part # D351146X012 for information on Fisher optimized digital valves for compressor antisurge applications.
2. HC = HART Communicating ; AD = Advanced Diagnostics ; PD = Performance Diagnostics ; ODV = Optimized Digital Valve.
Specifications
WARNING
Refer to table 1‐2 for specifications. Incorrect configuration of a positioning instrument could result in the malfunction of
the product, property damage or personal injury.
Specifications for DVC6000 HW2 digital valve controllers are shown in table 1‐2. Specifications for the Field
Communicator can be found in the product manual
for the Field Communicator.
