Instruction Manual
D103785X012
Parts
June 2017
89

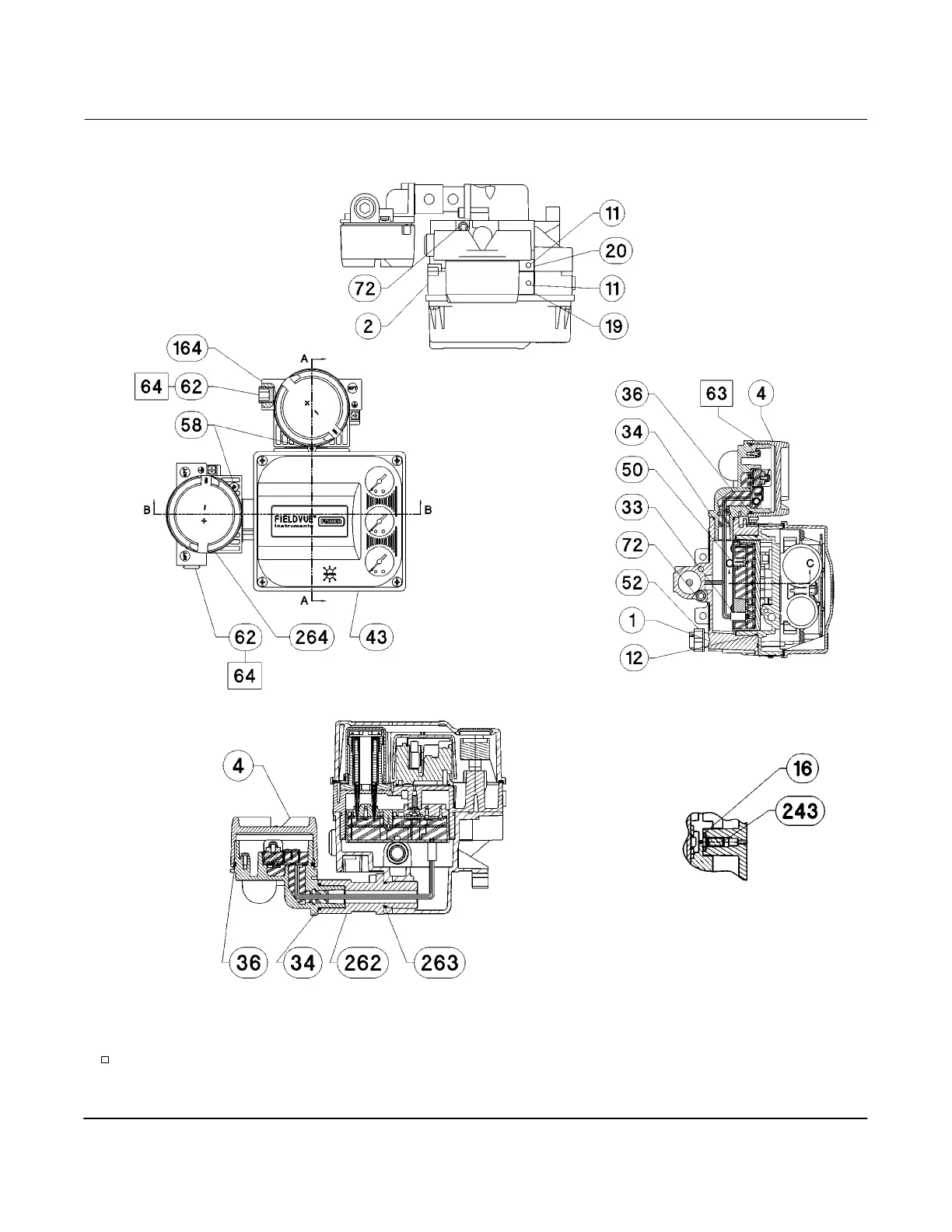

Figure 7‐2. FIELDVUE DVC6005 HW2 Base Unit Assembly
APPLY LUB, SEALANT
SECTION A-A
NOTES:
1. APPLY LUBRICANT KEY 65 TO ALL O-RINGS UNLESS OTHERWISE SPECIFIED
49B3261-C SHT 1 & 2
SECTION B-B
SECTION C-C
