Emerson Fisher FIELDVUE DVC6000 - Page 133

Parts
September 2013
8-13

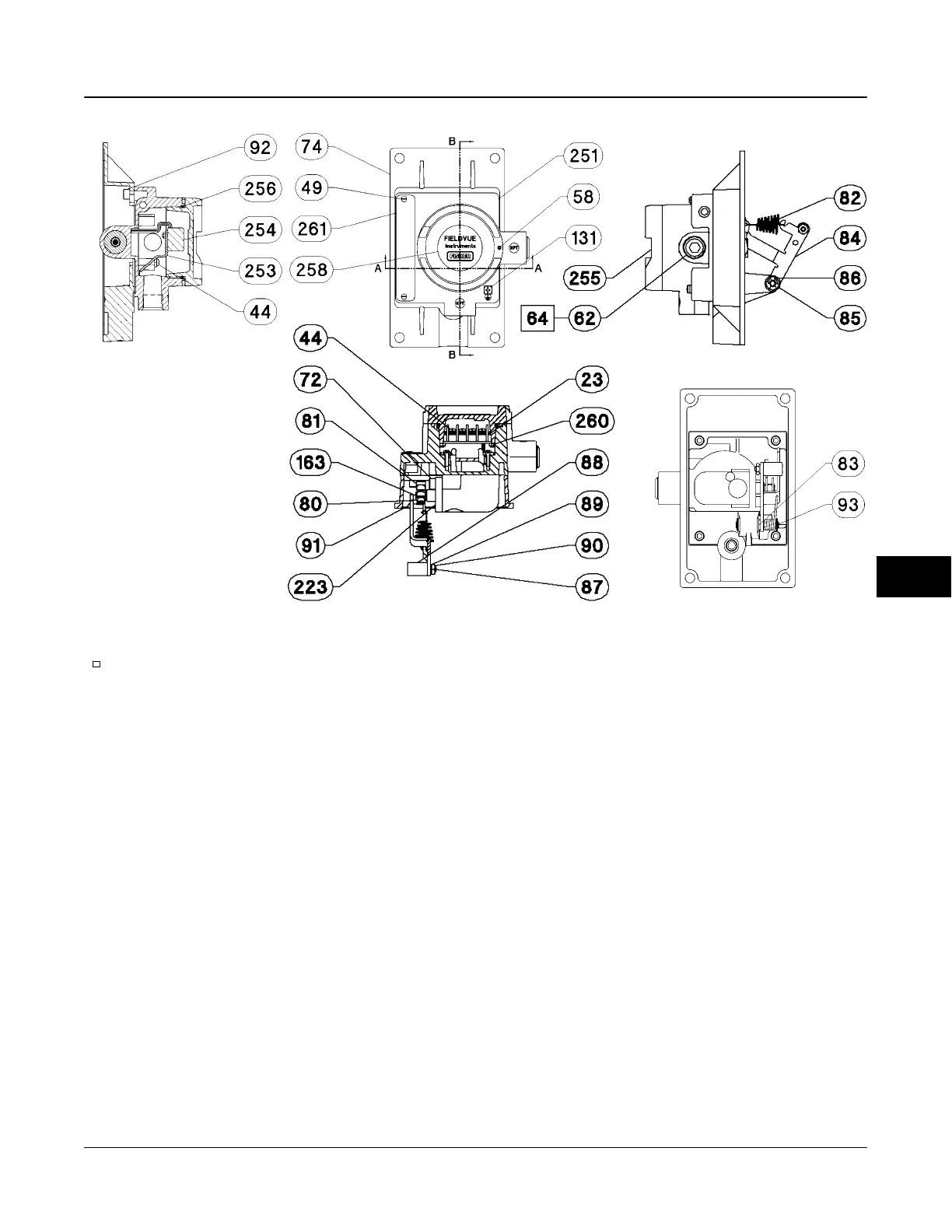

Figure 8-8. FIELDVUE DVC6025 Digital Valve Controller Assembly
49B7987−A/IL
NOTE:
1. APPLY LUBRICANT KEY 65 TO ALL O−RINGS UNLESS OTHERWISE SPECIFIED
APPLY LUB, SEALANT, THREAD LOCK
SECTION A-A
SECTION B-B
8
