DVC6000 Digital Valve Controllers
September 2013
B-4
GE42819 Sheet 2, Rev. D
FM APPROVED BARRIER
1
NOTE 1, 3, 4, 5, 6
1
NOTE 7
I.S. CLASS I,II,III, DIV 1, GROUPS A,B,C,D,E,F,G
N.I. CLASS I, DIV 2, GROUPS A,B,C,D
DVC6010, DVC6020, DVC6030
DVC6010S, DVC6020S,
DV6030S
Vmax = 30 VDC
Imax = 226 mA
Ci = 5 nF
Li = 0.55 mH
Pi = 1. 4W
NON-HAZARDOUS LOCATION
HAZARDOUS LOCATION
1 SEE NOTES IN FIGURE B-8
T6 ≤ 75_C
T5 ≤ 80_C
T CODE T (amb)

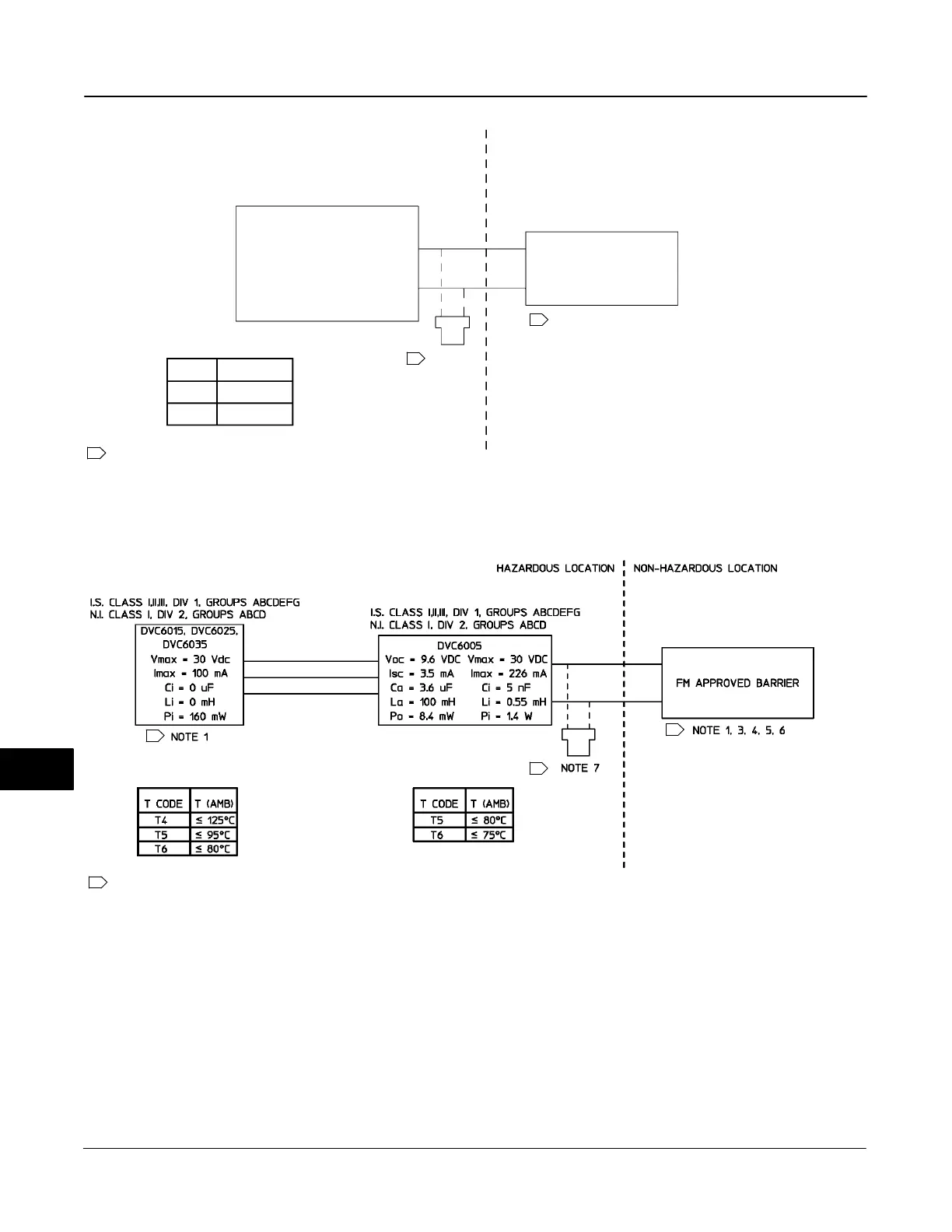

Figure B-6. FM Loop Schematic for FIELDVUE DVC6010, DVC6020, and DVC6030
GE42819 Sheet 5, Rev. D
1
1
1
1 SEE NOTES IN FIGURE B-8
Figure B-7. FM Loop Schematic for FIELDVUE DVC6005 with DVC6015, DVC6025, and DVC6035
B
