Emerson Fisher FIELDVUE DVC6000 User Manual

Loop Schematics/Nameplates
September 2013
B-9
GE42990 Sheet 2, Rev. E
1 SEE NOTES IN FIGURE B-18
1
1

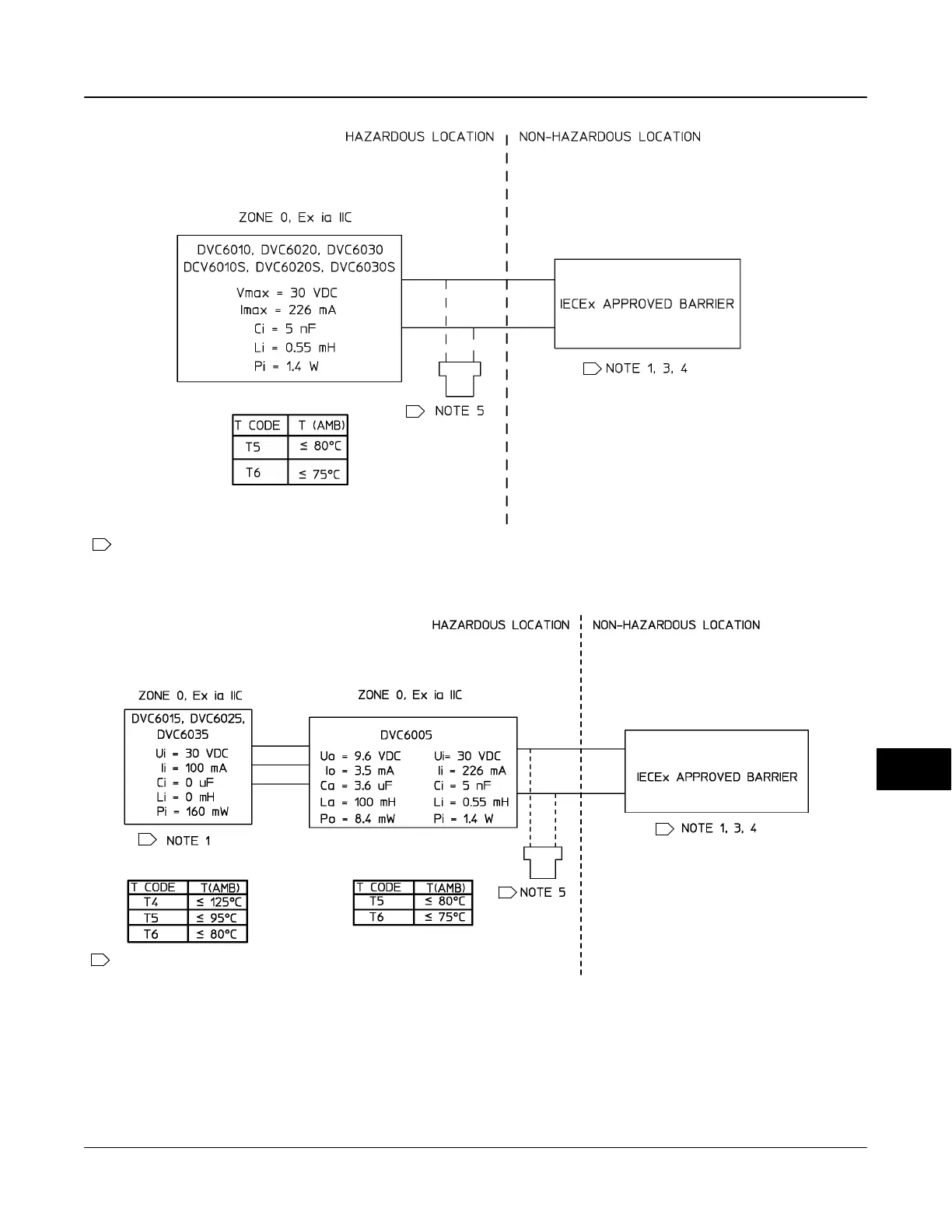

Figure B-16. IECEx Loop Schematic for FIELDVUE DVC6010, DVC6020, and DVC6030
GE42990 Sheet 5, Rev. D
1 SEE NOTES IN FIGURE B-18
1
1
1
Figure B-17. IECEx Loop Schematic for FIELDVUE DVC6005 with DVC6015, DVC6025, and DVC6035
B

Emerson Fisher FIELDVUE DVC6000 Specifications

General

Model	DVC6000
Type	Digital Valve Controller
Manufacturer	Emerson
Operating Temperature	-40 to 85°C (-40 to 185°F)
Communication Protocols	HART
Power Supply	24 VDC
Ingress Protection	IP66
Weight	Approximately 2.3 kg (5.1 lb)
Input Signal	4-20 mA
Certifications	ATEX, IECEx, CSA, FM
Mounting	Directly to valve or pipe
