DVC6000f Series
March 2006
11-6

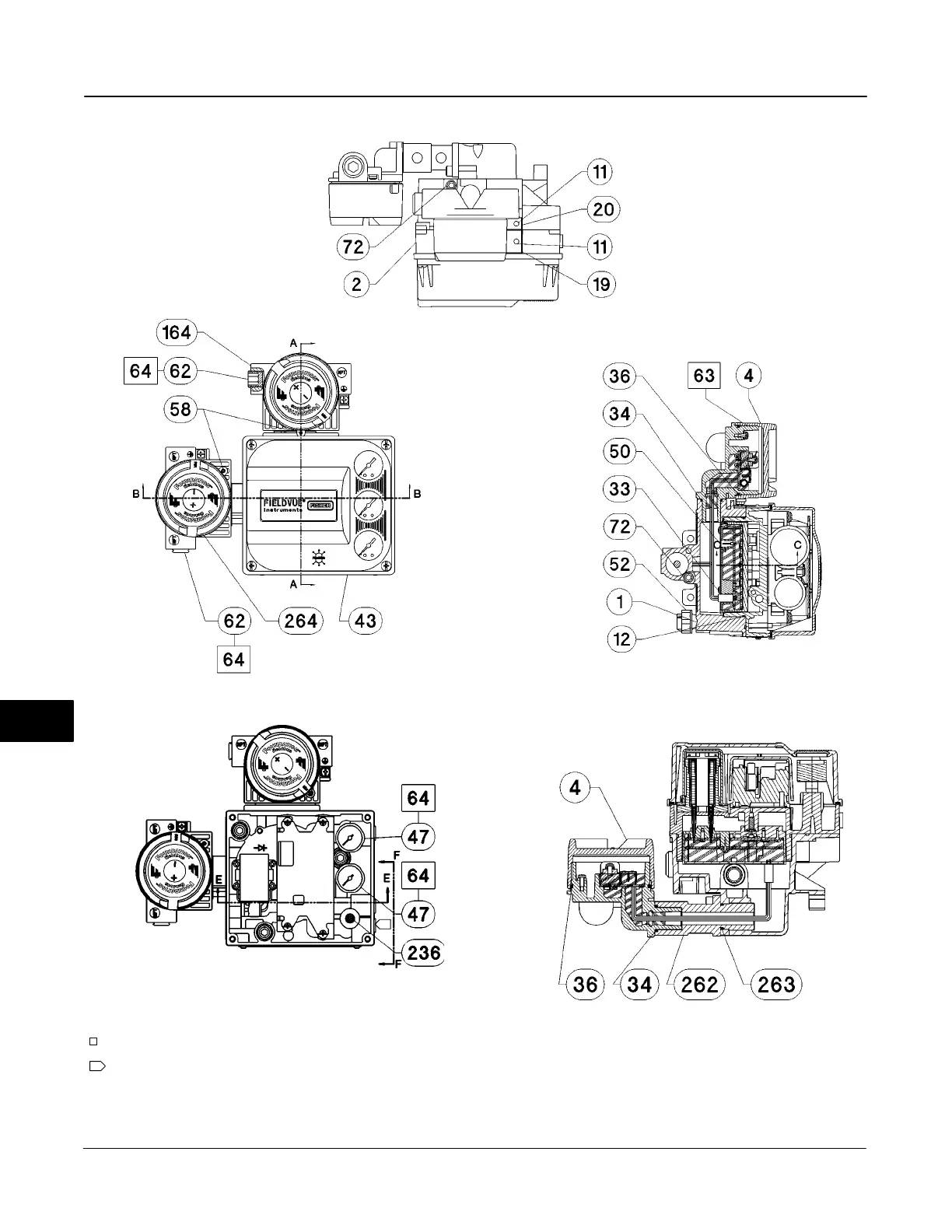

Figure 11-1. Type DVC6005f Base Unit
APPLY LUB, SEALANT
SECTION A-A
1
NOTES:
SEE FIGURE 11-8 FOR GAUGE CONFIGURATIONS
2. APPLY LUBRICANT KEY 65 TO ALL O-RINGS UNLESS OTHERWISE SPECIFIED
49B3261-B SHT 1, 2 & 3
29B3403-A
SECTION B-B
1
11
