Appendix D Loop Schematics/Nameplates
This section includes loop schematics required for
wiring of intrinsically safe installations. It also includes
the approvals nameplates. If you have any questions,
contact your Emerson Process Management sales
office.
GE04331-A
SHEETS 1 and 2
SEE NOTES ON NEXT PAGE
1
1
1
1
1
1

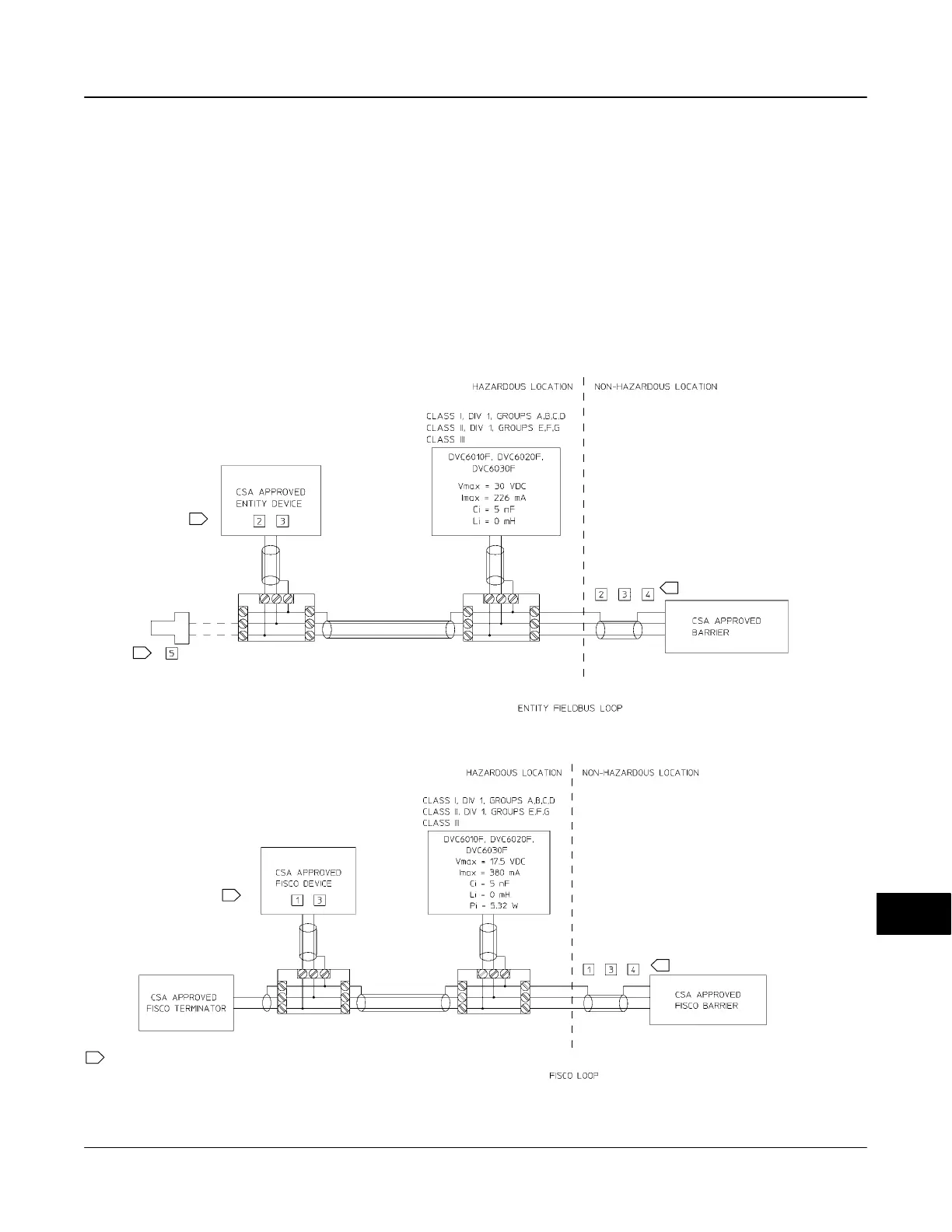

Figure D-1. CSA Schematics for Type DVC6000f Series
