Chapter 2 - Installation Instructions
2.1 Receiving
After unpacking the Electronic bypass package:
√ Verify that the part numbers on the package match the numbers on your purchase order,
packing slip or tagging information.
√ Check the unit for physical damage which may have occurred during shipping. If any part of
the package is missing or damaged. Notify the carrier and your Emerson Control
Techniques representative immediately.
√ Verify that all internal hardware (i.e. components, screws, etc.) is properly seated and
fastened securely.
2.2 Nameplate Information
The Electronic bypass package has two nameplates for identification. The main label is located on
the inside of the enclosure. This nameplate provides information on the entire package. The
second nameplate is located on the VFD. This nameplate contains information related to the VFD
only. The nameplate information should be recorded and kept in a safe location. This information is
required for any service or repair.

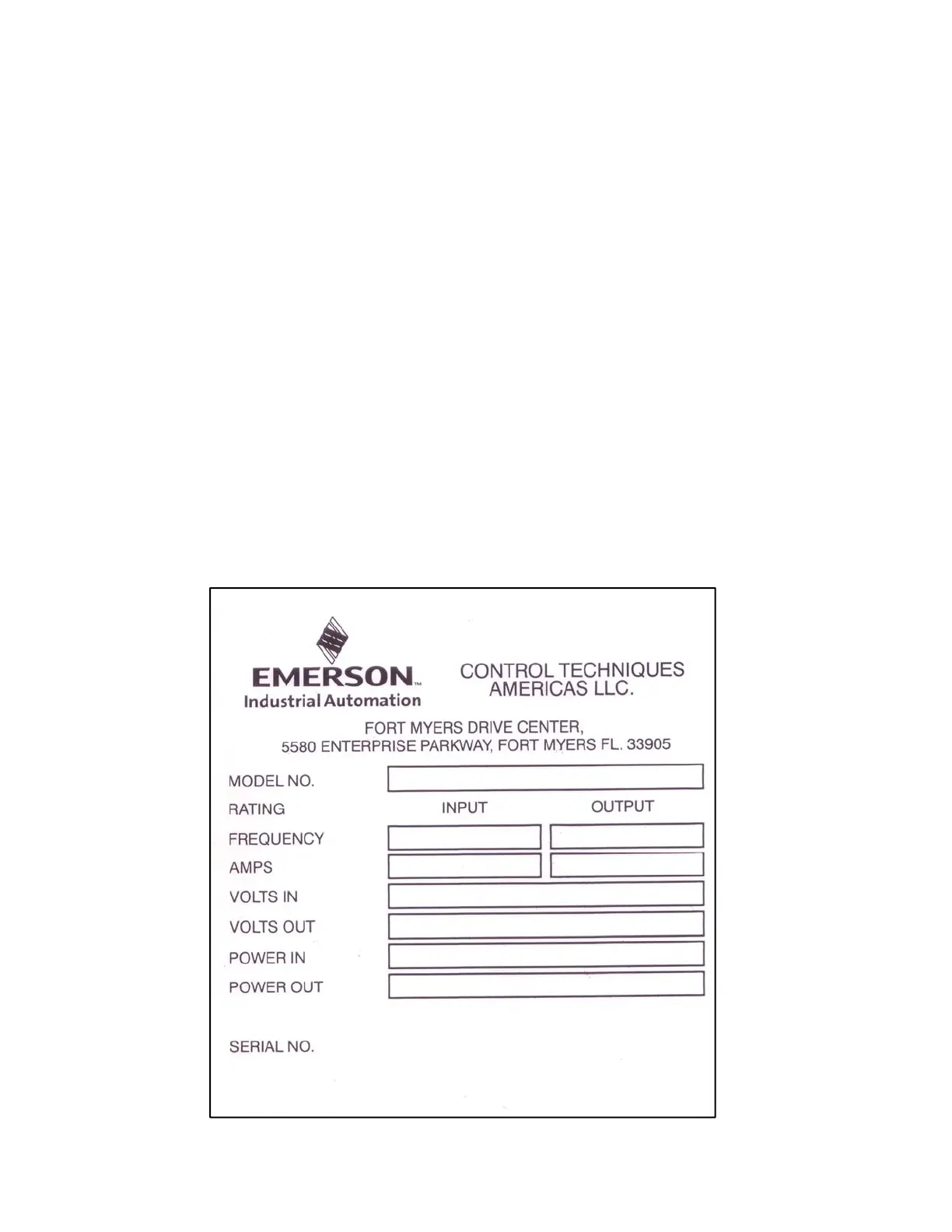

Electronic Bypass Package Label
