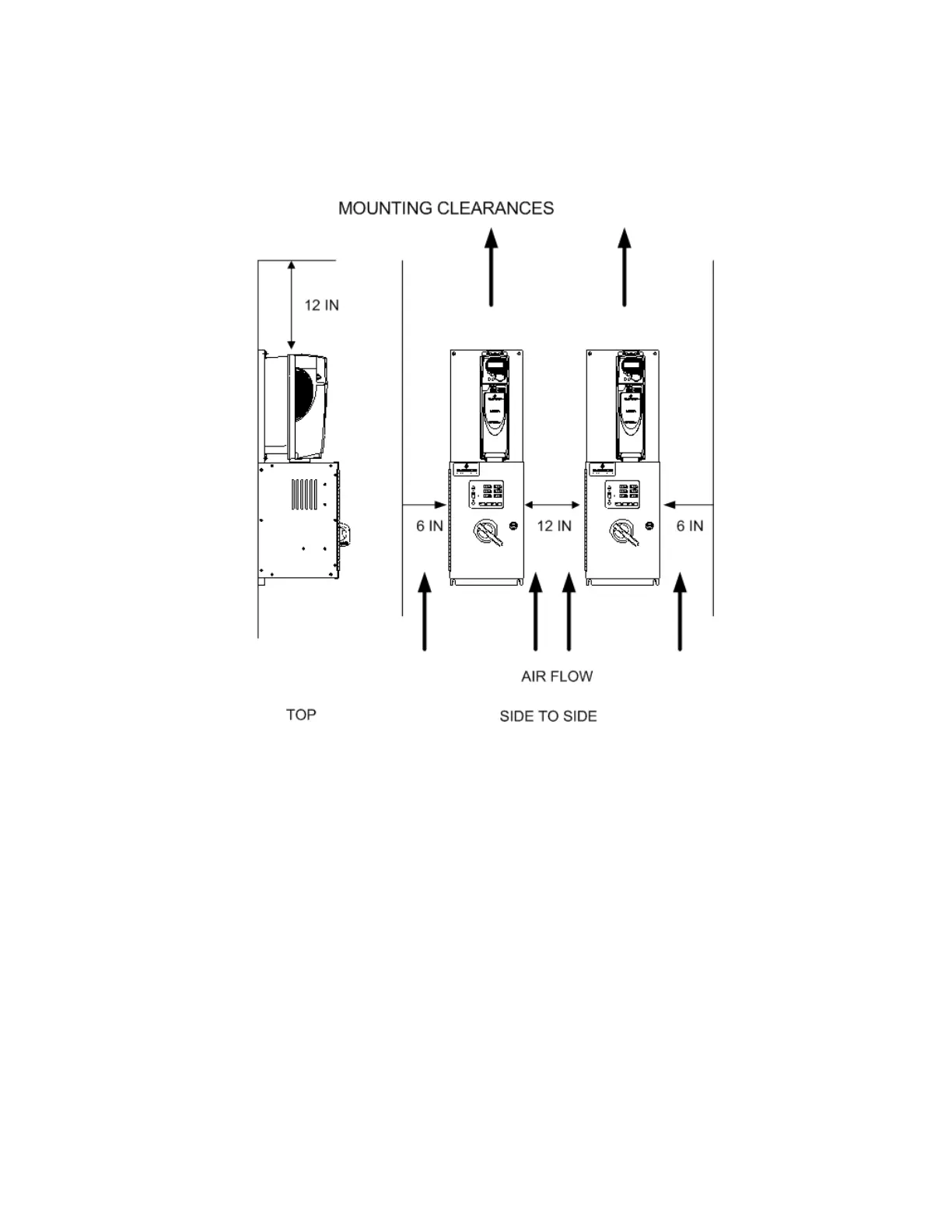

2.4 Mounting & Clearances
Install the Electronic bypass package on a vertical surface and allow the following minimum
clearances for normal heat dissipation.
Notes:
• Ambient operating temperature; 32°F to 104°F ( 0°C to 40°C)
• Install the unit in a dry environment free from oil mist and dust
• Install the unit in a location free from radioactive materials, combustible materials, harmful
gasses or liquids
• Do not install the unit in a location susceptible to excessive vibrations
• Do not install in direct sunlight
• During installation, protect the unit from foreign particles such as metal shavings produced
by drilling
• Failure to follow these notes could void the warranty
