Connecting with ProLink II or Pocket ProLink Software

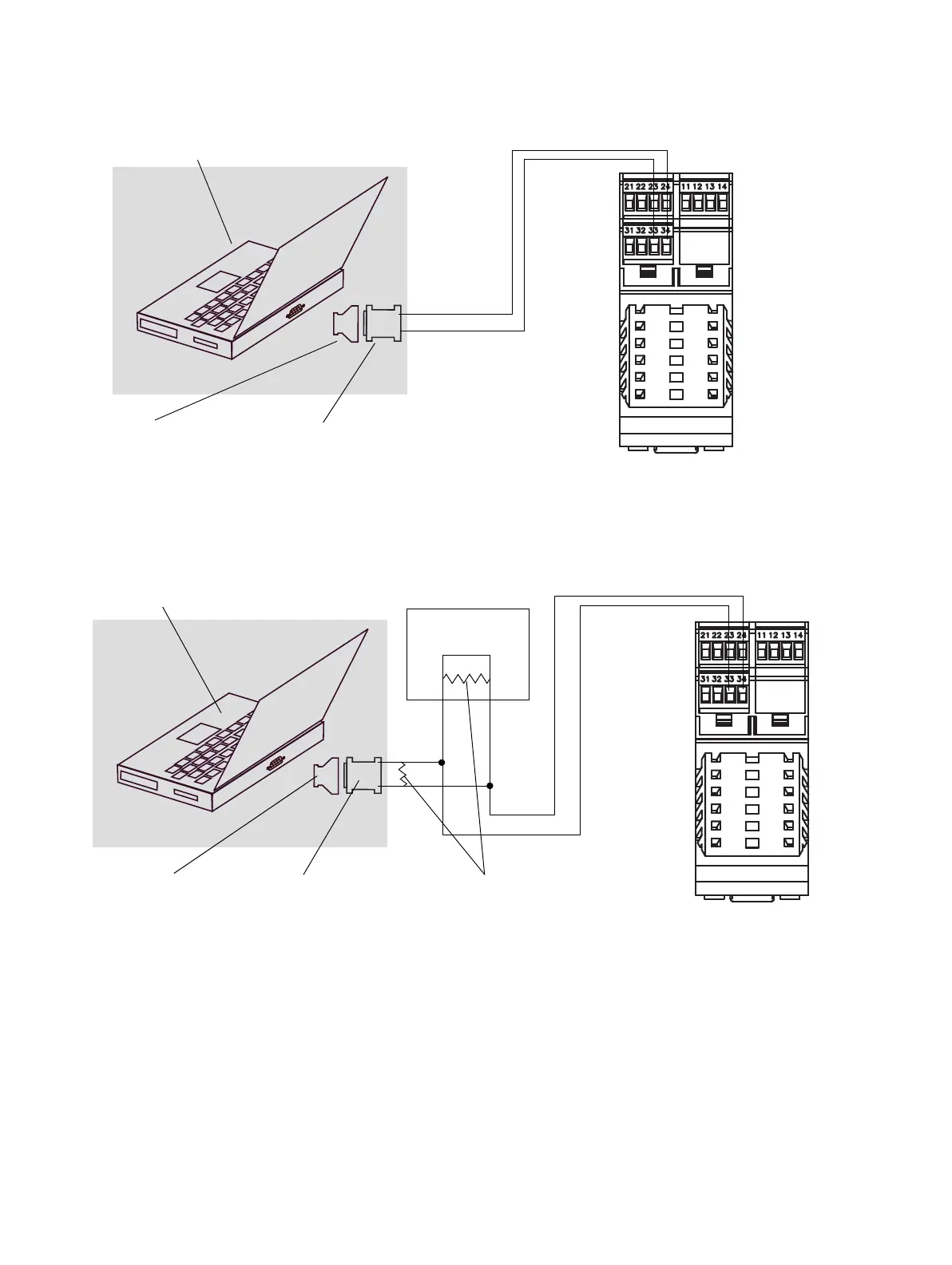

Figure 3-7 RS-485 terminal connections to Model 1500 or 2500
Figure 3-8 RS-485 network connections to Model 1500 or 2500
RS-485/B
RS-485/A
RS-485 to RS-232
signal converter
25-pin to 9-pin serial port
adapter (if necessary)
PC
DCS or PLC
Add resistance if necessary
(see Step 4)
RS-485 to RS-232
signal converter
25-pin to 9-pin serial port
adapter (if necessary)
PC
RS-485/B
RS-485/A
