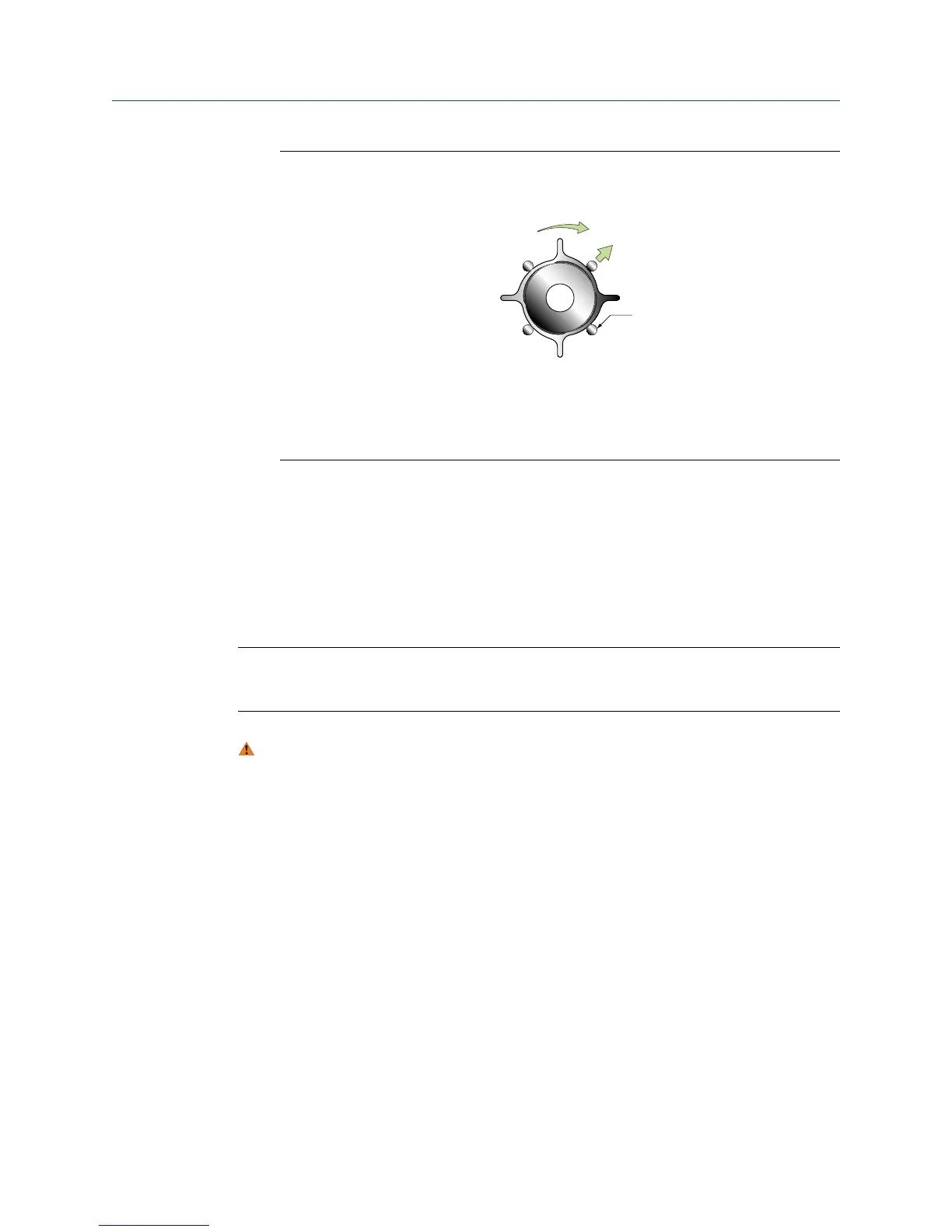

Alignment ring usageFigure 2-14:
C
B
A
A. Direction to rotate the alignment ring
B. Direction the flange bolts are pushed
C. Flange bolt
6. With a wrench, tighten the nuts in an alternating order.
2.9 Attach extended electronics
If your installation has a sensor with extended electronics, you will need to install the
extender onto the sensor case.
Note
Extended core processors are matched at the factory to specific sensors. Keep each core processor
together with the sensor with which it was shipped.
CAUTION!
Keep the extender and feedthrough clean and dry. Moisture or debris in the extender or
feedthrough can damage electronics and result in measurement error or flowmeter failure.
Procedure
1. Remove and recycle the plastic cap from the feedthrough on the sensor.
Mounting
20 Micro Motion ELITE

Emerson Micro Motion Elite Coriolis Micro Motion Elite Coriolis CMF025 Specifications

General

Model	CMF025
Brand	Emerson Micro Motion
Material	316L Stainless Steel
Output	4-20 mA, Pulse, Frequency
Communication	HART, Modbus, Foundation Fieldbus
Power Supply	24 VDC
Type	Coriolis Flow Meter
Connection Type	Flanged, Threaded
Size	1/4 inch
