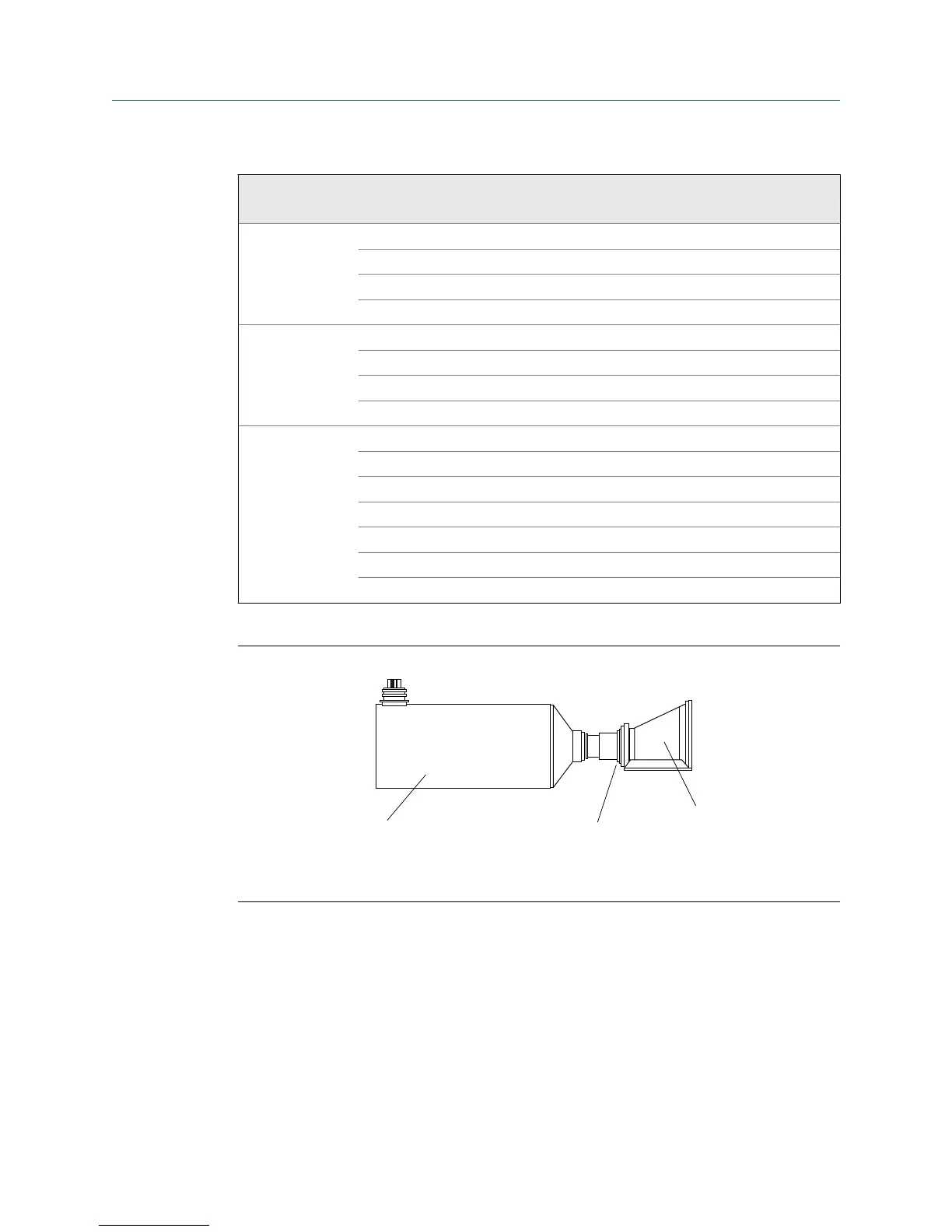

Minimum angle of inclination (continued)Table 1-3:
Model
Fitting
code Description Min. angle
662 DN25 ISO 2853 (IDF) sanitary coupling 47°
672 DN25 DIN 11851 sanitary coupling 47°
677 DN25 DIN 11864-1A sanitary coupling 47°
692 DN25 SMS 1145 sanitary coupling 32°
T100F, T100T 623 1-inch Tri-clamp compatible sanitary clamp 0°
624 1 1/2-inch Tri-clamp compatible sanitary clamp 46°
672 DN25 DIN 11851 sanitary coupling 0°
677 DN25 DIN 11864-1A sanitary coupling 0°
T150F, T150T 624 1 1/2-inch Tri-clamp compatible sanitary clamp 0°
625 2-inch Tri-clamp compatible sanitary clamp 46°
663 DN51 ISO 2853 (IDF) sanitary coupling 47°
673 DN40 DIN 11851 sanitary coupling 0°
674 DN50 DIN 11851 sanitary coupling 47°
678 DN50 DIN 11864-1A sanitary coupling 47°
693 DN51 SMS 1145 sanitary coupling 32°
Eccentric reducerFigure 1-3:
A
B
C
A. Sensor case
B. Process end connection is the same size as the sensor connection
C. Eccentric reducer
Planning
Installation Manual 5
