2. Cable connection of NetSure 211 C45-S2 power supply system

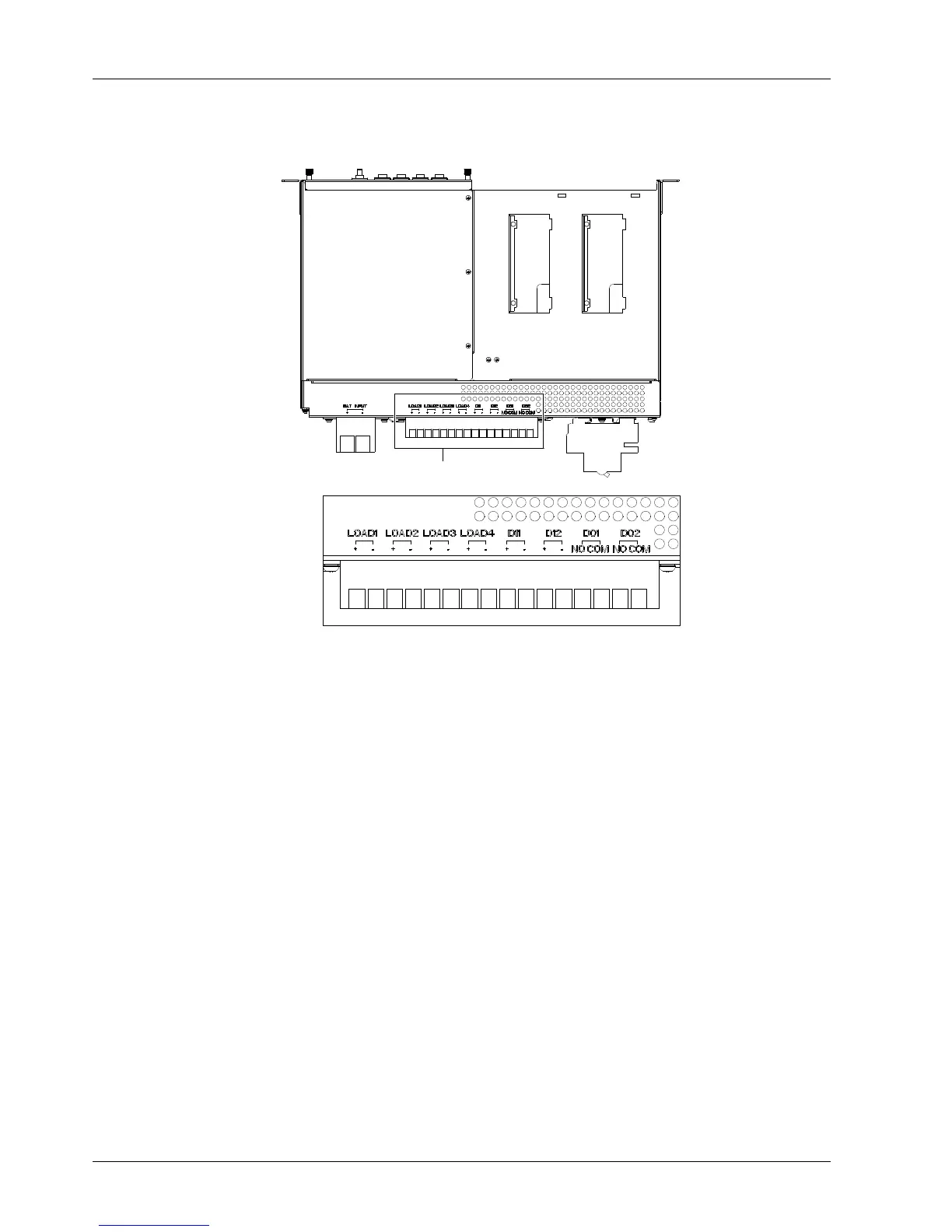

The position of the dry contact and temperature probe connection terminal is shown in Figure 2-7, and the screen
print is shown in Figure 2-9.
A
A amplified view
Figure 2-9 Dry contact
